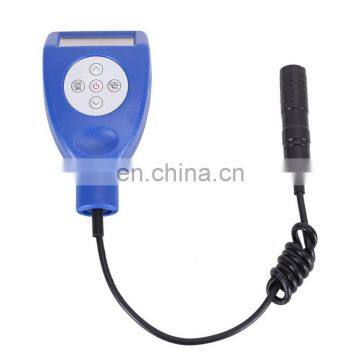

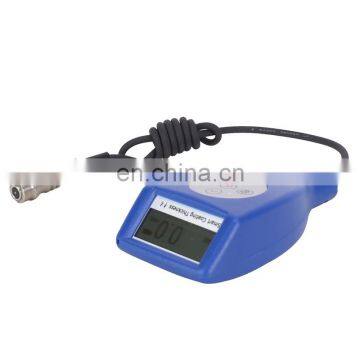

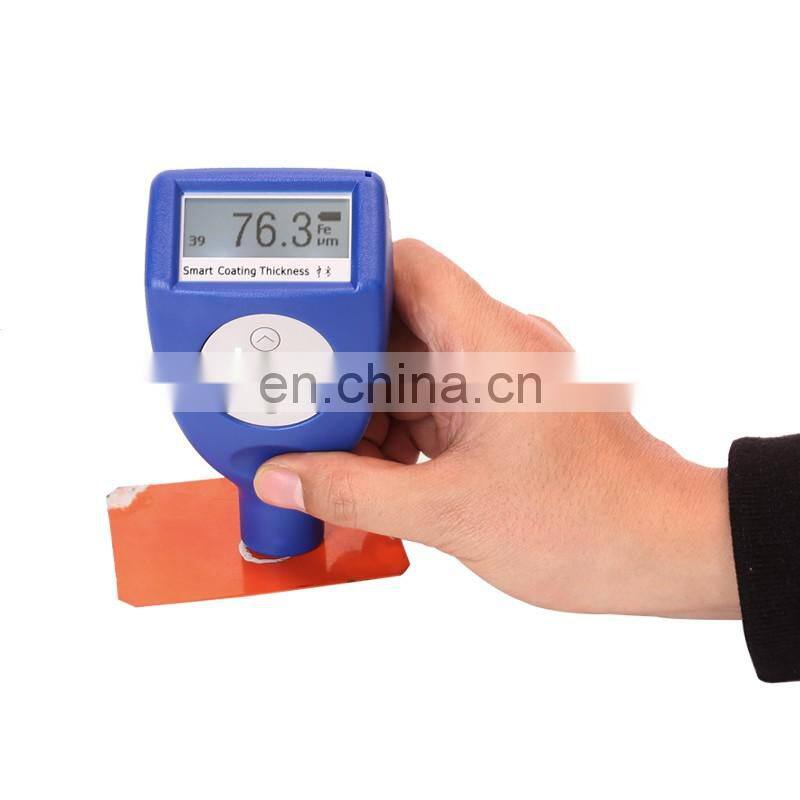

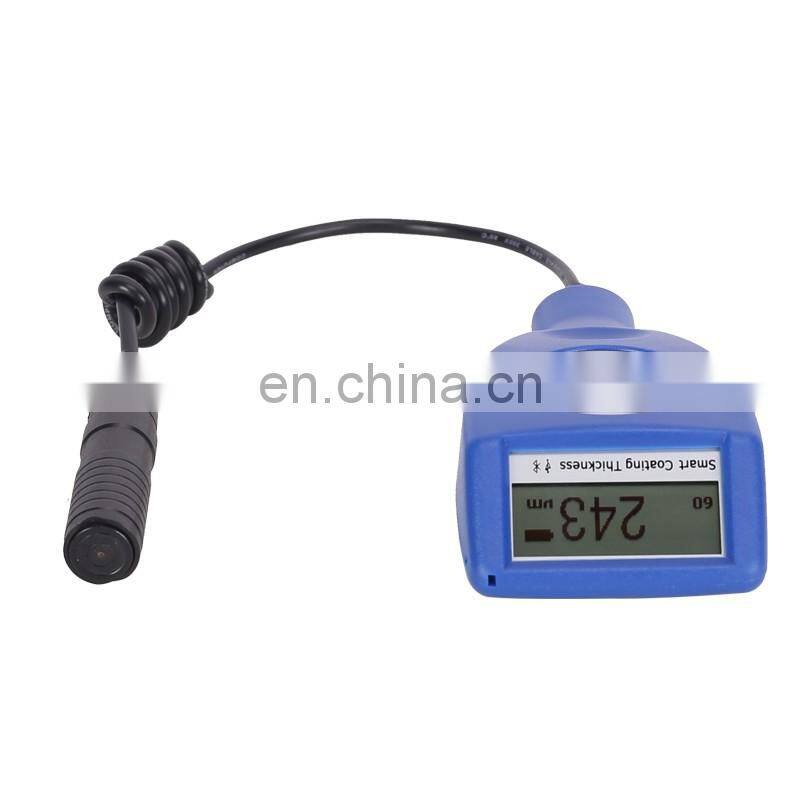

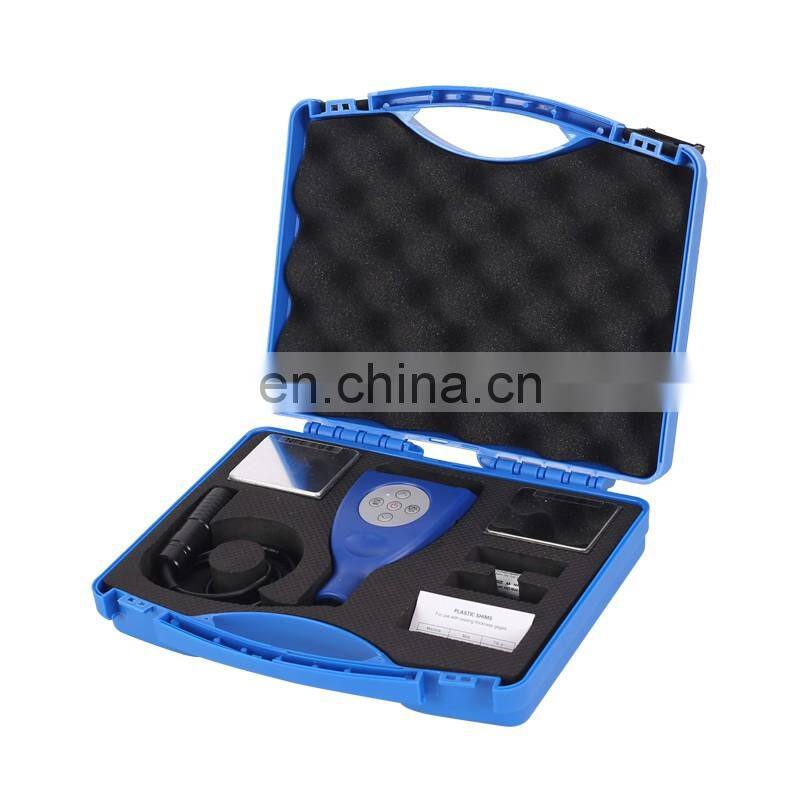

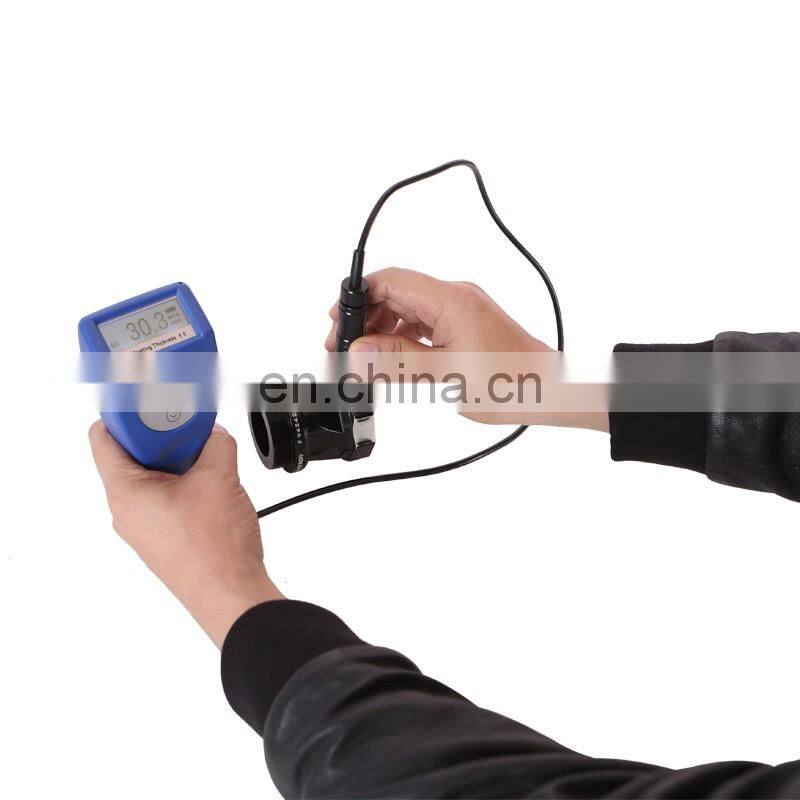

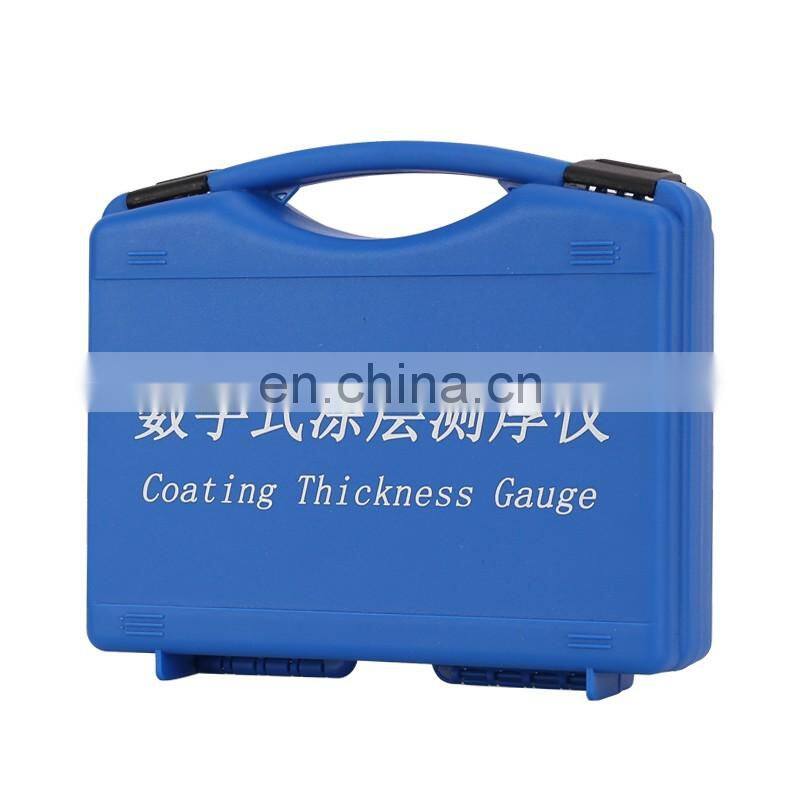

Digital Coating Thickness Tester / Paint Thickness Gauge Meter

Name: Digital Coating Thickness Tester / Paint Thickness Gauge Meter
Brand: ZONHOW
Price: USD $120 - 1,100 / Set

FOB Price

USD $120 - $1,100 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Guangzhou/ShenZhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

ZONHOW

Place of Origin:

Guangdong, China

Model Number:

TT260

Product Description

Features~Digital Coating Thickness Tester / Paint Thickness Gauge Meter

1,Unique temprature compensation algorithm

2,Supporting Multiple Calibration Mode
3,Instat Report Printing
4,Large screen diplay

Technical parameters-Digital Coating Thickness Tester / Paint Thickness Gauge Meter
Power supply mode		USB 5V or no.5 battery (AA)
Operation		graphic menu button operation
Man-machine interaction		keystroke, backlight dot matrix, indicator light, buzzer
Measuring range		0~1500μm
Resolution		0.1μm(0~99.9μm),1μm(100~1500μm)
Minimum surface		convex 5mm/ concave 5mm
Minimum measuring area		Minimum measuring area
Using the environment temperature		- 10-50 ℃, humidity is 10-85% RH

Main Functional Parameters~Digital Coating Thickness Tester / Paint Thickness Gauge Meter

◆Two patterns of working: pattern of direct and pattern of group.
◆Five statistical data: Mean Value, Maximum Value, Minimum Value, Measurement Times and Standard Deviation.
◆Two optional methods available to calibrate the gauge, and you can calibrate system error of the probe using basic calibration method.
◆Saving function: capable of 500 sets of measurement value.
◆Deleting function: You can delete one of the doubtful data and you can also delete all of data in the memory to prepare for new measurement.
◆Limit settings: alarm if one of the measurement data is beyond of the limits.
◆Show battery information in real time.
◆The buzzer will give prompt when making measurement and you can also turn off the buzzer.
◆Variable standby time, and it will turn off if the time is up.
◆Adjustable contrast of the LCD screen.
◆Error message function: Error message will show on the LCD screen or the buzzer gives error message.
◆Two methods of power off: Manual & Automatically.
