Martindale Wear and Abrasion Resistance Tester for Gloves
- 1000 Set / Sets per Month
- T/T Credit Card
- LCD Touch Screen Martindale Abrasion Test Machine
- Rubber wheel abrasion testing (ASTM G65) Pin abrasion testing (ASTM G132) Taber abrasion testing
- 4 Stations Shoelace Tester Shoelace Abrasion Resistance Shoelace Rubbing Tester
- Martindale Abrasion Tester,abrasion and pilling tester martindale,martindale textile abrasion and pilling machine
- Paper belt abrasion tester paper tape abrasion resistance tester RCA Scroll Tape Abrasion Tester
- Universal Wear Testing Machine to Physics Lab Equipment Complete Set
Product Details
Brand Name: | ZONHOW | Place of Origin: | Guangdong, China | Model Number: | DZ-335 |
Power: | Electronic |
Product Description

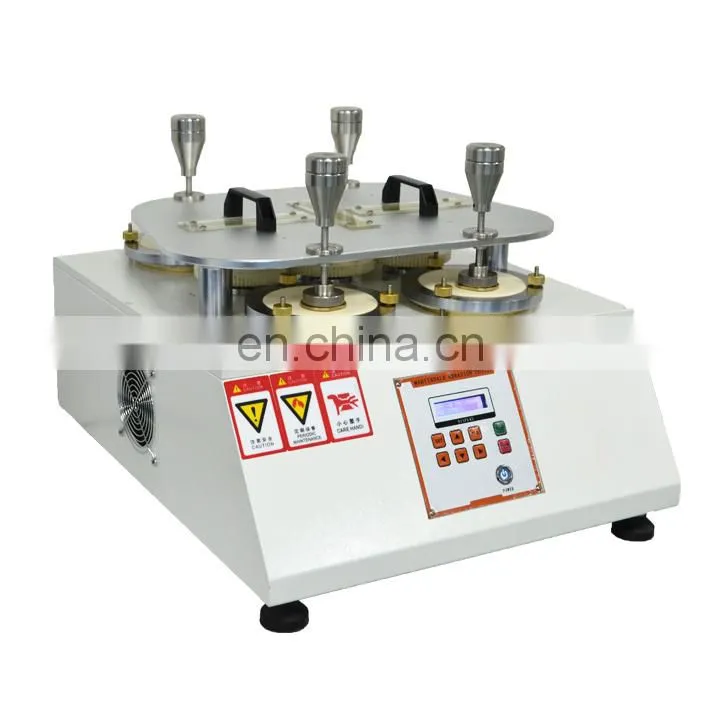

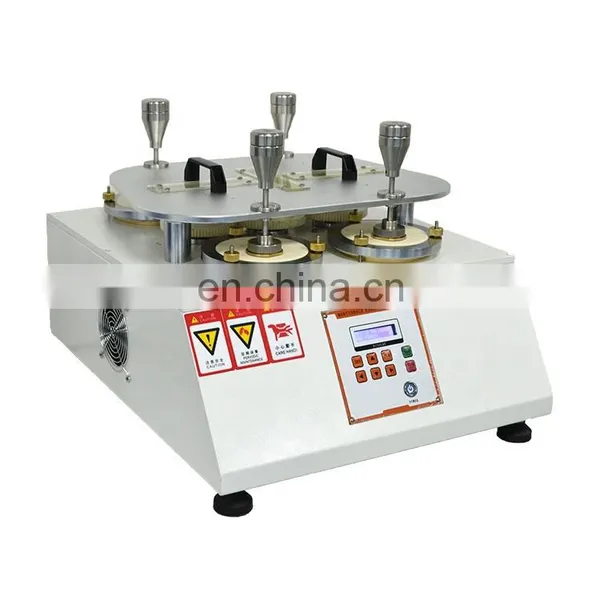

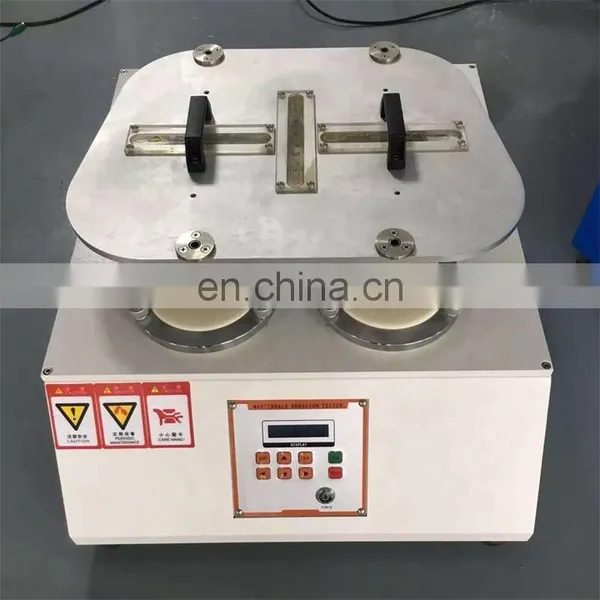

Martindale Wear and Abrasion Resistance Tester for Gloves
Abrasion Resistance for Gloves:
Circular specimens of material are abraded under known pressure with a cyclic planar motion in the form of a Lissajous figure which is the result of the simple harmonic motions at right angles to each other. The resistance to abrasion is measured by the number of rubs required for breakthrough to occur.
Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajousoriented for the regulated times, then observe the difference between it and the original samples anddecide the grade of scrubbing resistance.
Main Features:
• Martindale tester for abrasion and pilling properties test in textile fabrics learn the advantages of domestic and foreign similar equipment’s design,it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate.
• Computer system uses two counting methods, visual appearance, convenient setting, 4 or 6 or 8(optional) station testing at the same time to improve test efficiency.
• Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm.
• Variety of trajectory matching accessories, can adapt to a variety of test methods standard.
Standard:
The pilling degree test of fabric of GB/T4802.2, ASTM D4970, ISO12945-2 etc.
The wear test of fabric of GB/T13775, ASTM D4966, ISO12947 etc.
Specifications:
Model Name | Martindale Wear and Abrasion Resistance Tester for Gloves |
Station number | 4,6,8 station (Optional) |
Count display
| a. Estimated counting: 0~999999 times |
b. Total counting: 0~999999 times | |
Maximum dynamic range | 24±0.5mm, 60.5±0.5mm |
Weight of pressure thing
| a.Gripper: 200±1g |
b. Cloth samples hammer: 395±2g | |
c. Furniture accessories sample hammer: 594±2g | |
d. Stainless steel butterfly piece: 260±1g | |
Effective friction diameter of grinding block | A type: 200g (1.96N) friction head ¢ 28.8-0.084mm |
| B type: 155g (1.52N) friction head ¢90-0.10mm |
The relative velocity of Gripper and the grinding station | 50-2r/min |
Weight of pressure hammer | 2385±10g |
Dimensions | 885*600*410mm(L*W*H) |
Weight | 150kg |
Power | Ac220V,50Hz |
Different Model of Control Panel for Your Optional:
Electron liquid crystal display 8 digits, auto-stop.
LCD control panel

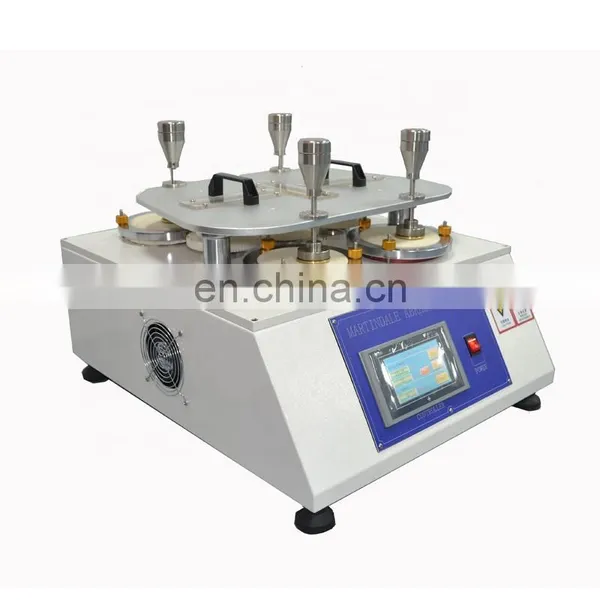

Touch screen control panel
Lissajous made by our Martindale Wear and Abrasion Resistance Tester for Gloves
Send your inquiry to ZONHOW lab consultants

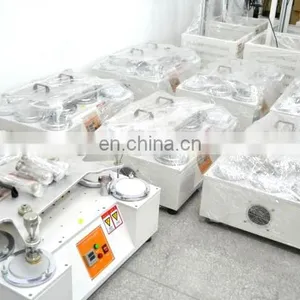

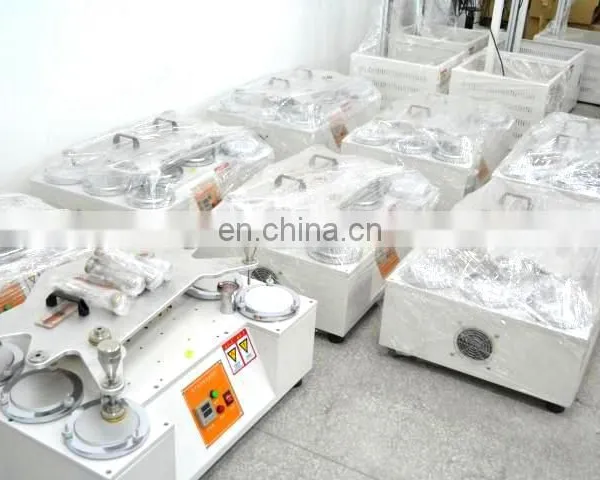

We have professional packing teams and shipping forwarder to pack and deliver your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
