ZONHOW Electronic pencil hardness tester price
Electronics Digital Pencil Hardness Tester With Low Price
ASTMD3363 ISO15184 Electronic Pencil Hardness Tester
QHQ-B Electronic Digital Pencil Hardness Tester
Summary:
- The electric pencil hard testing machine is suitable for testing the hardness of various types of household appliances such as mobile phone housings, MP3/MP4 housings, and laptop housings, as well as testing hardness of various types of metal coating, decorative materials, and synthetic leathers. This machine marks the hardness of a product by scratching the coating of the product with a pencil of a certain hardness and the hardest pencil marking that does not cause the destruction of the coating.
Test standards:
- GB/T6739-2006,
- ASTM D3363,
- ISO15184,
- BS3900-E19,
- ECCA-T4/1,
- JIS, and CNS.
Product parameters:
Test angle |
45 degrees |
Test load |
500, 750, 1000g |
Load weight |
250g two, 500g one |
Test platform movement speed |

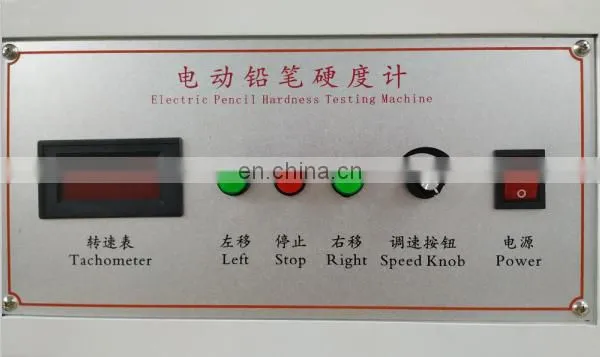

0.5 ~ 10mm / S (knob adjustable, LCD display) |
Stroke distance |
100mm |
Test platform size (L × W) |
250 × 180mm |
Test fixture |
a set of fixed sample fixture |
Working power |
AC220V, 50HZ |
Main accessories |
One standard Chinese pencil 6B~6H each, load weight, balance weight |
Product testing:

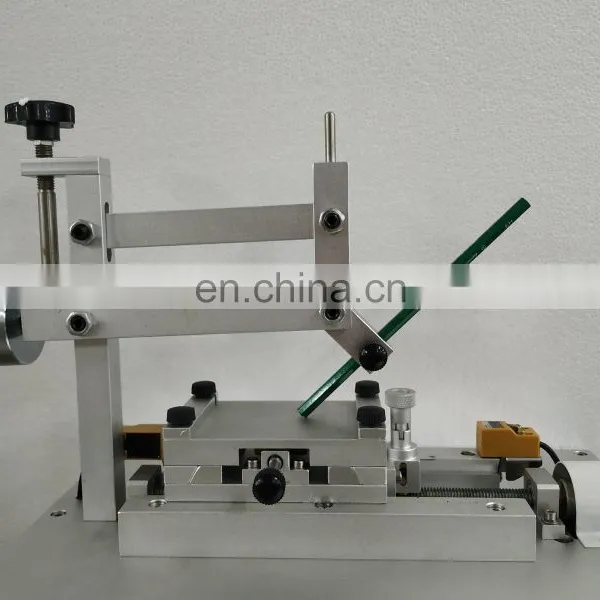

- The machine uses a hardness pencil to scrape the surface hardness of the coating film on the surface of the coating. The hardness pencil is fixed at an angle of 45° so that the front-end pen core is in contact with the surface of the coating layer and is loaded at a proper speed (JIS specification 0.5 mm).
- Move the test platform so that the surface of the coating layer moves past the pen center. The softest pencil grade where the coating layer does not cause damage (scratches) can be considered as the hardness of the coating layer.
Be careful:
- 1. The machine must be placed horizontally before machine testing;
- 2. Before the test, the speed should be adjusted to the lowest level. After the machine runs normally, the speed will be adjusted to the test demand value.
- 3. the template must be clamped to prevent loosening affect the test results.
Details imagine:

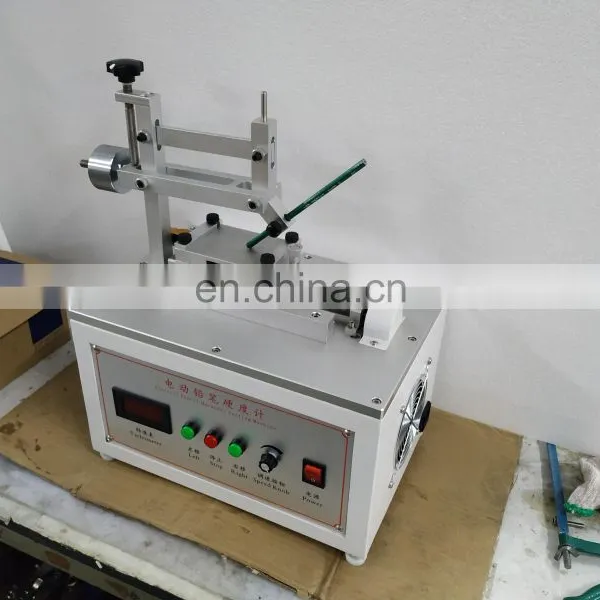

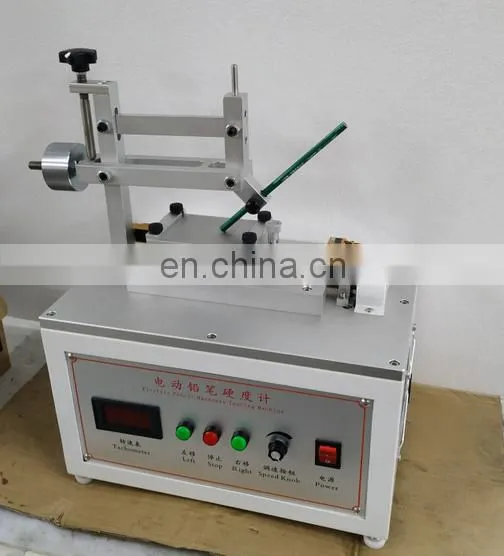

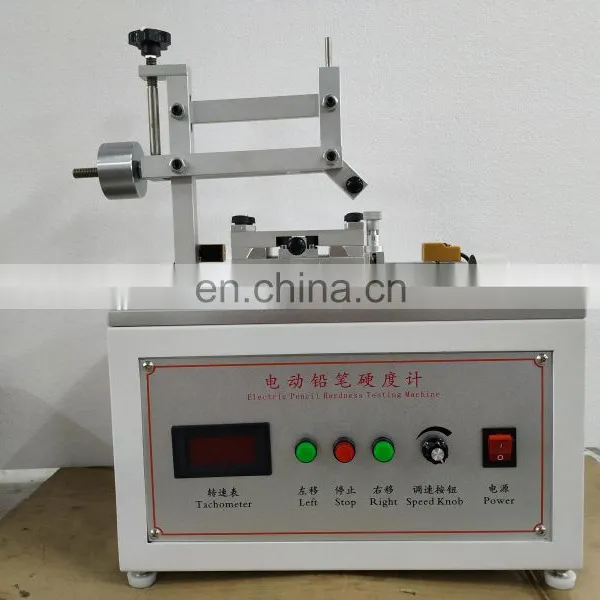

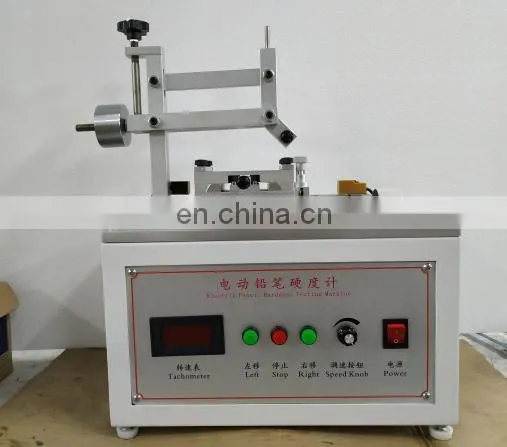

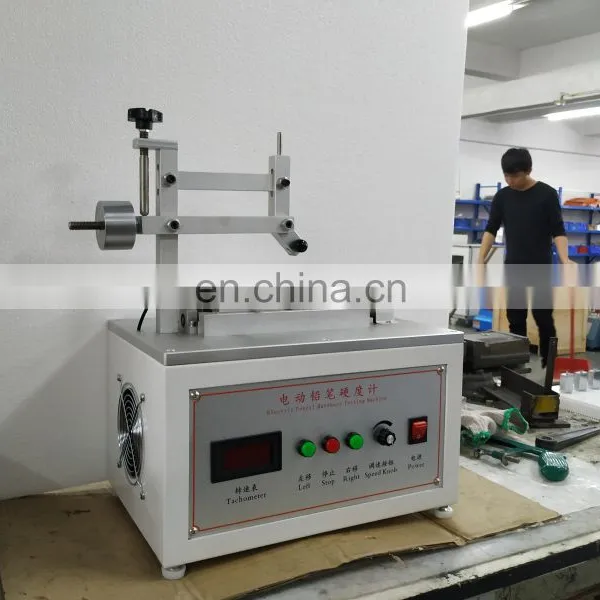

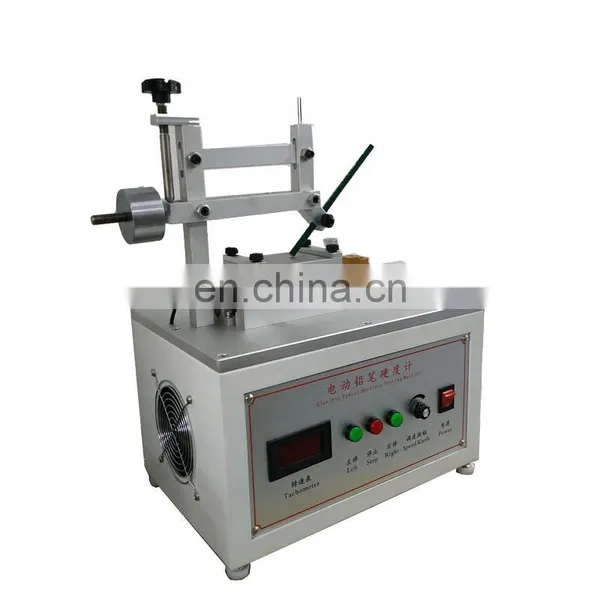

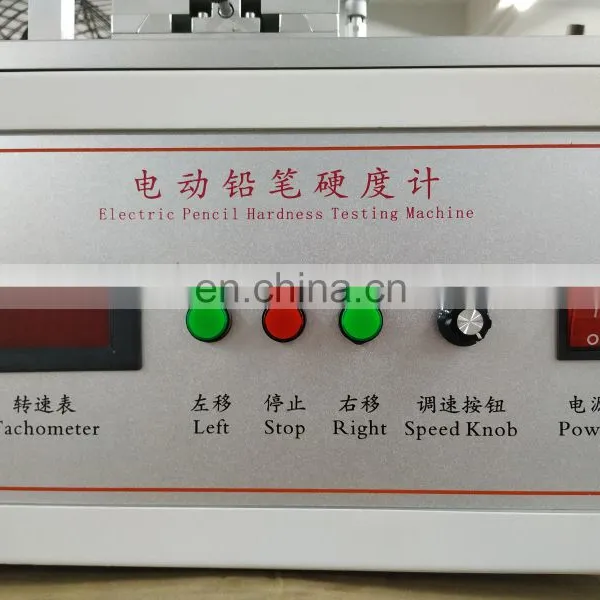

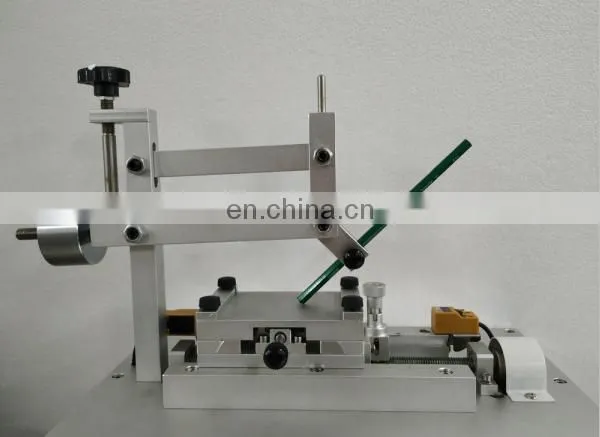

ZONHOW Electronic pencil hardness tester price
Electronics Digital Pencil Hardness Tester With Low Price
ASTMD3363 ISO15184 Electronic Pencil Hardness Tester
QHQ-B Electronic Digital Pencil Hardness Tester
Universal tensiel tester(5T) Universal tensile tester(200kg) Mobile drop tester(1.5/2m) Wire elongation tester
Humidity climatic chamber Dust test chamber 339 Abarasion tester Moving die Rheometer
ZONHOW Electronic pencil hardness tester price
Electronics Digital Pencil Hardness Tester With Low Price
ASTMD3363 ISO15184 Electronic Pencil Hardness Tester
QHQ-B Electronic Digital Pencil Hardness Tester
We have professional packing workers to pack your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
ZONHOW Electronic pencil hardness tester price
Electronics Digital Pencil Hardness Tester With Low Price
ASTMD3363 ISO15184 Electronic Pencil Hardness Tester
QHQ-B Electronic Digital Pencil Hardness Tester
ZONHOW Electronic pencil hardness tester price
Electronics Digital Pencil Hardness Tester With Low Price
ASTMD3363 ISO15184 Electronic Pencil Hardness Tester
QHQ-B Electronic Digital Pencil Hardness Tester
- 1.Are your company a trading one or a factory ?Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
- 2.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
- 3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
- 4.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
-
5.What is your warranty ?
- 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
ZONHOW Electronic pencil hardness tester price
Electronics Digital Pencil Hardness Tester With Low Price
ASTMD3363 ISO15184 Electronic Pencil Hardness Tester
QHQ-B Electronic Digital Pencil Hardness Tester
|
Hi, this is Tracy from ZONHOW, China. We specialized in many different Lab testing machines. Warmly welcome to contact us share your cares. The following is my contact way, glad to see your inquiry.
| |
| QQ number | 2355780557 |
|
+86 138 2570 4520 (It's very popular in China, and I do believe you will must be like it.) |
|
| Whats app | +86 13825704520 |
| Skype | +86 138 2570 4520 |
| TEL | +86 138 2570 4520 or +86 769 812-33466 |
| Web | / 0755117.en.china.cn |
