IP Protection Stainless Steel Test Fixed Sand Dust Resistance Simulation Chamber
Description
IP Protection Stainless Steel Test Fixed Sand Dust Resistance Simulation Chamber is designed according to GB4706, GB2423, GB7000.1, IEC60529,ect standards and meet the IPX5 and IPX6 dust test requirements. It is maily used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.
Features
1. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.
2. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.

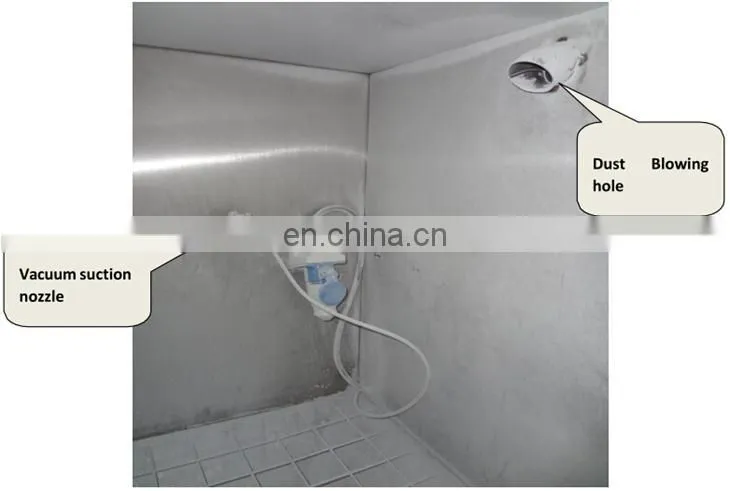

3. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced,
4. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.
5. Test with 50mm diameter holes for the external test power line or signal line.
6. Best after sales service: 18 Months free parts maintenance.
7. Meet international test standards.
8. Customization is available & welcomed.
Specifications
| Item | IP Protection Stainless Steel Test Fixed Sand Dust Resistance Simulation Chamber |
| Test chamber dimension | 800*800*800mm (800*1000*1000, 1000*1000*1000 ,1000*1500*1000mm) |
| Outer dimension | according to inner structure |
| Metal screen wire diameter | 50um |
| Screen line space | 75um |
| Environment temperature and humidity | 25~40°C, 45~75%RH |
| Dust(talcum powder) concentration | 2~4kg/m3 |
| Test time | Dust test time set freely, 0~999.9hr |
| Test dust | Dry talcum powder or port land cement |
| Test standards | GB4706,GB2423,GB7000.1,IEC60529 |
| Cable hole | φ50mm(circumscribed power accepted) |
| Power supply | AC 2ψ3W220V 50HZ 2.5KW |

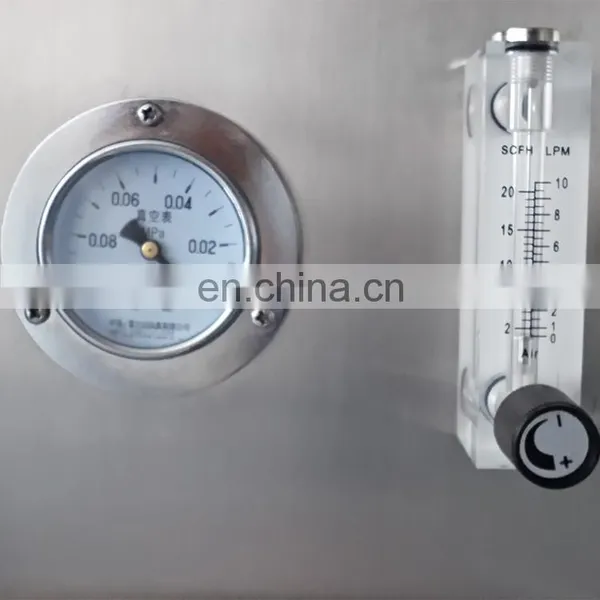

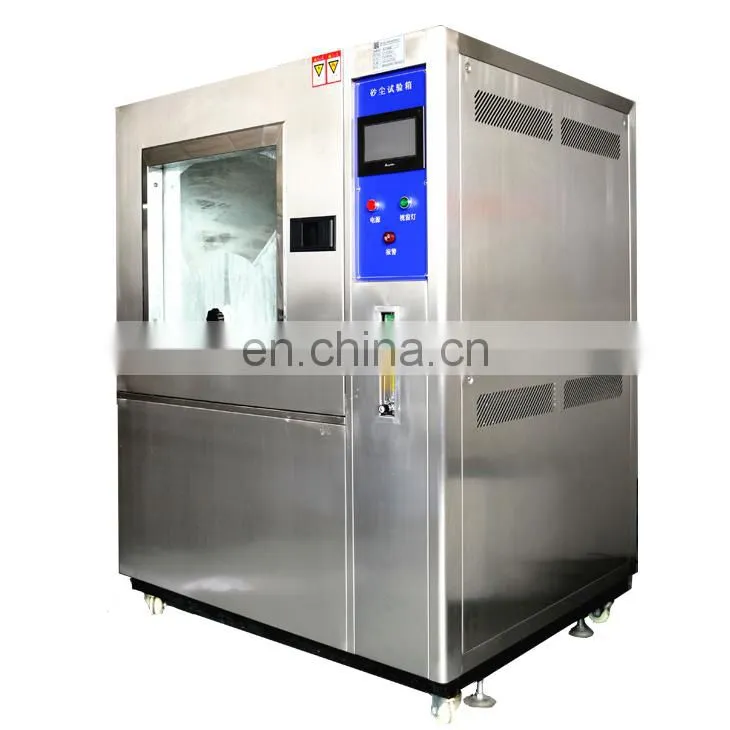

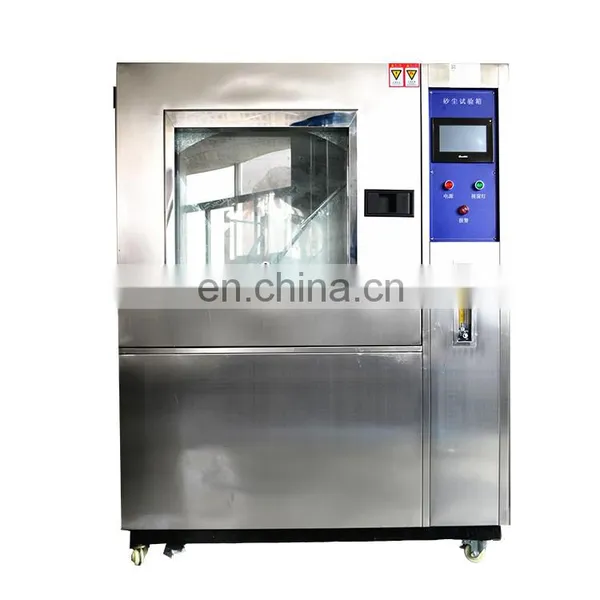

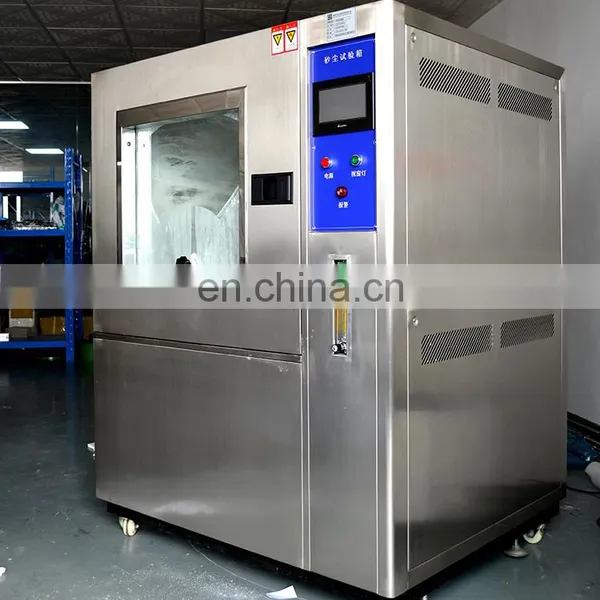

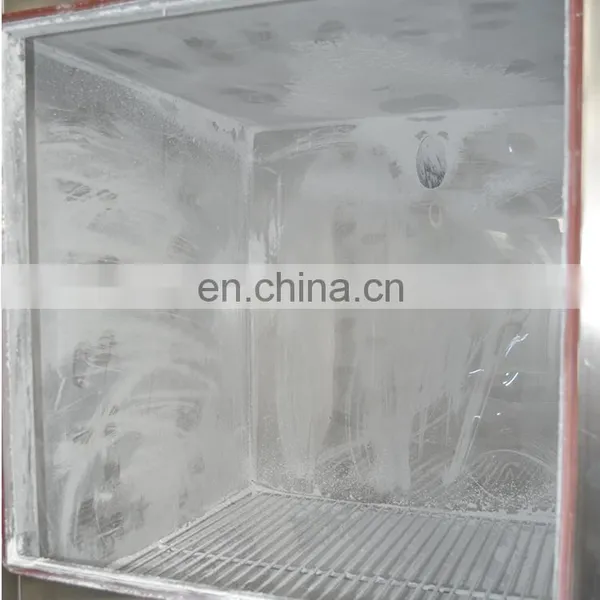

Detailed Images of our IP Protection Stainless Steel Test Fixed Sand Dust Resistance Simulation Chamber
Temperature Humidity Chamber Rain Spray IPX Chamber Sand Dust Proof Chamber Xenon Arc Aging Chamber
We have professional packing teams and shipping forwarder to pack and deliver your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
Customer case 1
Customer case 2
Professional, Absorbed Manufacturer
Wide Range of Test Equipment
Though 10 years of continuous development, our company has established the main products line of Universal strength testing machines for tension, compression, flexure, and shear etc. Environmental testing chambers and Cell phone, computer testing machines. Package and paper print test equipment and so on! Our equipment is used in over 80 countries worldwide and supported by a network of offices and approved agencies. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
