Electrical Digital DIN Abrasion Resistance Tester Price For Plastic , Rubber
- 10 Set / Sets per Month
- shenzhen
- T/T Credit Card
- Mask Fabric Air Permeability testing machine test equipment
- Detector Metal,Metal Detector,Chinese Gold Detector JZD-300A
- Used Electronic Gold Metal Detector
- Metal Detector for Apparel, Industrial Conveyor System Gold Metal Detector
- Industrial Use Buzzer Alarm Metal Detector Machine for Food
- Automatic Needle Metal Detector Machine Price for Textile
Product Details
Brand Name: | Haida | Place of Origin: | Guangdong, China | Model Number: | HD-P307 |
Product Description
Digital DIN Abrasion Resistance Tester Price For Plastic , Rubber
DIN Type Abrasion Tester is to measure the abrasion resistance of rubbers (vulcanized thermoset rubbers and thermoplastic elastomers) that are subject to abrasive/frictional wear in their actual service, such as tires, conveyor drive belts, and shoe soles.
Main Technical Parameters:
Item | Specification |
Specimens size | 16mm, 6-15mm (D) |
Fixture load | 2.5N |
Weight load | 2.5N,5N |
Fixture lateral displacement | 4.2mm/wheel each lap |
Wheel diameter | 150mm |
Wheel length | 460mm |
Wheel rotate speed | 40rpm |
Abrasion speed | 0.32m/sec |
Dip angle | 3°the angle of the specimen back shaft with vertical roller face |
Principle:
Under specified touched pressure and given area, when the sample and the abrasive paper get an angle, test the abrasion resistance of the sample on the abrasive paper with certain rank.

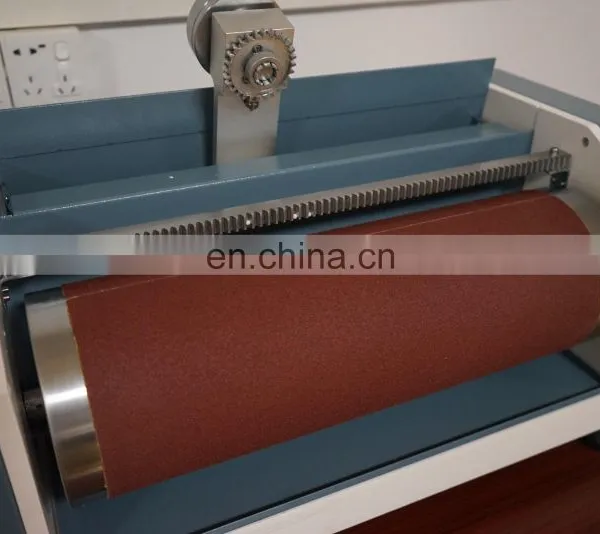

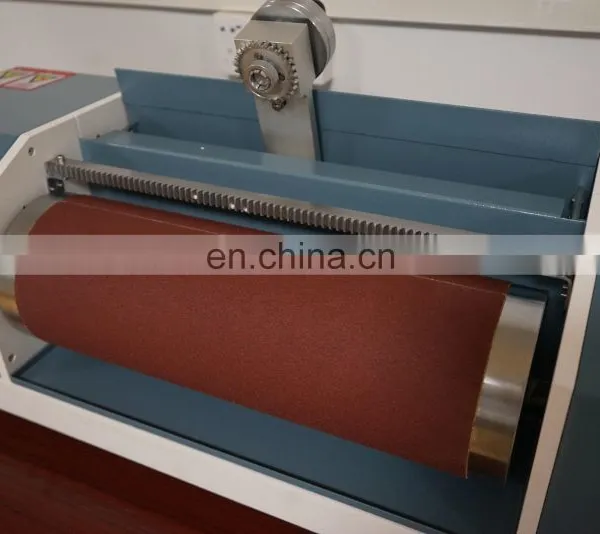

Wrap the abrasive paper on the roller. The sample adpress on the roller with abrasive paper to make the sample move horizontally along with the roller. Abrasion is produced on the one end of the cylinder sample. Measure the loss value of the sample and calculate the abrasion resistance according to sample density.
Design standard:

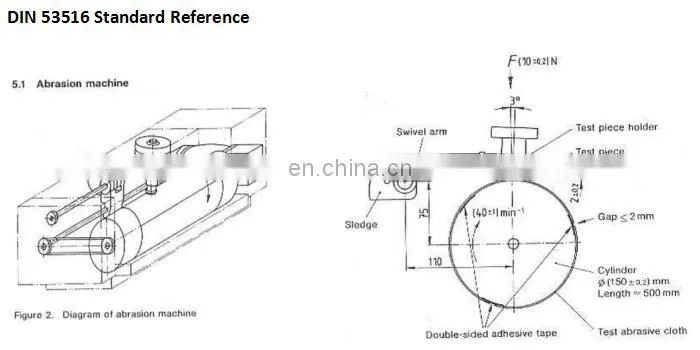

DIN-53516, ISO/DIS-4649, BS903 PART9 and GB-9867.

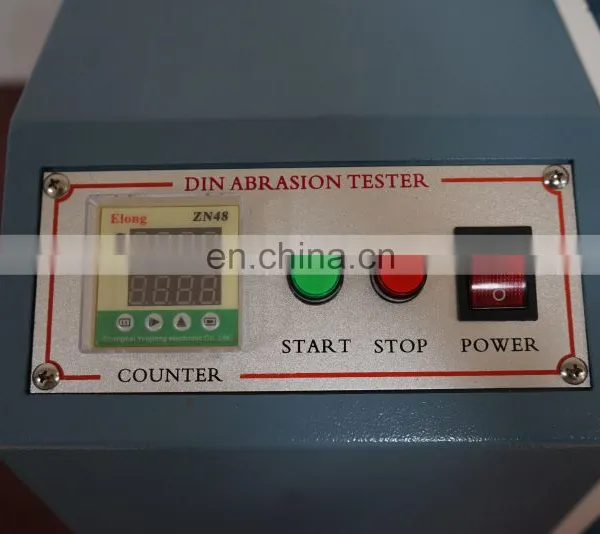

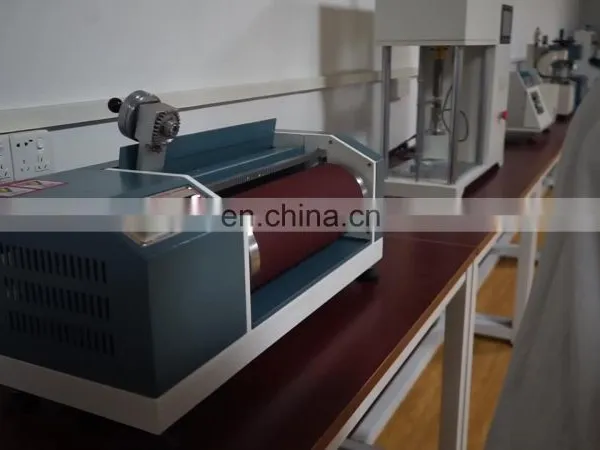

The Pictures:
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention!
