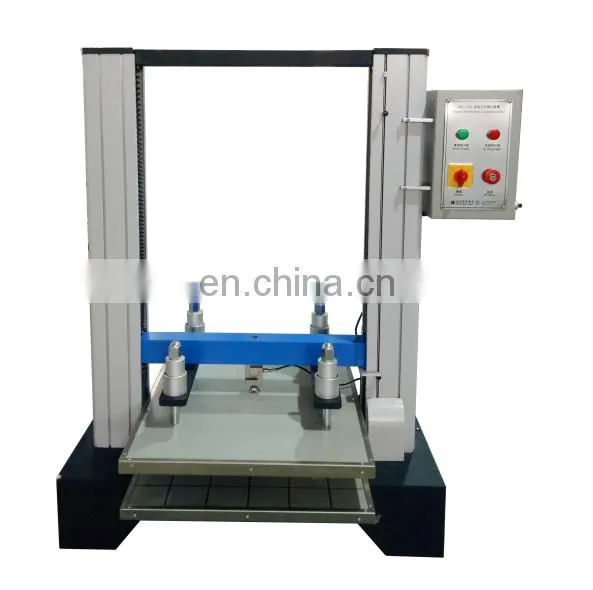

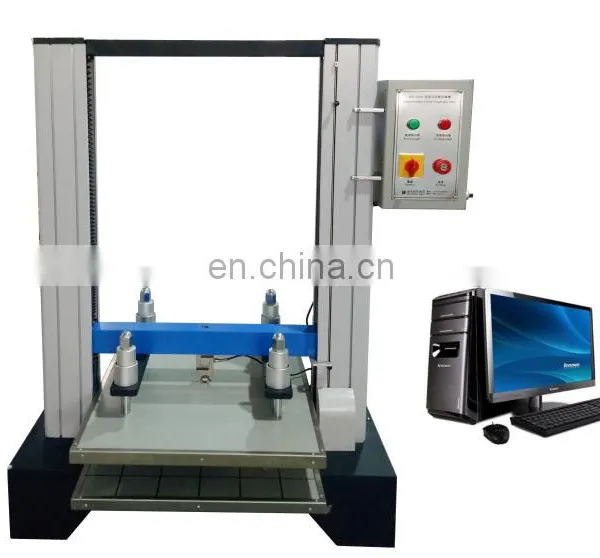

EQUIPMENT DETAILS OF HD-A502S-900 BOX COMPRESSION TEST MACHINE
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 900*700*1250mm
Power supply source: 1 220V, 50Hz 10A
Gross Weight: 210kg
STANDARD FEATURES
Item |
Description |
Max. Force |
1000KG |
Load cell |
1 load cell for highest accuracy |
Control system |
Windows 7, RS-232 interface |
Motor |
Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading |
kgf, Ibf, N, KN, T etc |
Load cell Resolution |
1/250,000 |
Load Precision |
within ±0.25% |
Parallelism of Platens |
Parallel within ±2.5mm |
Effective test area |
700*900*900mm |
Test speed |
10 ±3mm/min (0.01~200mm/min adjustable) |
Software |
TM 2101 |
Data display |
Load, displacement, speed, loading rate and elapsed time |
Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Export format type |
Word, Excel, Pdf |
APPLICATIONS
This instrument can make compression tests of packages (boxes) or packing and determine their piling up resistance (for storage and transport). These tests are called B.C.T. (Box Compression Test).
The Compression Testers can operate in five ways:
1. Deformation under defined load: Test deformation under defined load of various corrugated cartons and beehive crates
2. Load under defined deformation: Test load under defined deformation of various corrugated cartons and beehive crates
3. Maximum load: test the maximum load of various corrugated cartons and beehive crates
4. Stacking test: stack test of various corrugated cartons and beehive crates
5. Cyclic test: dynamic strain according to strength & stroke

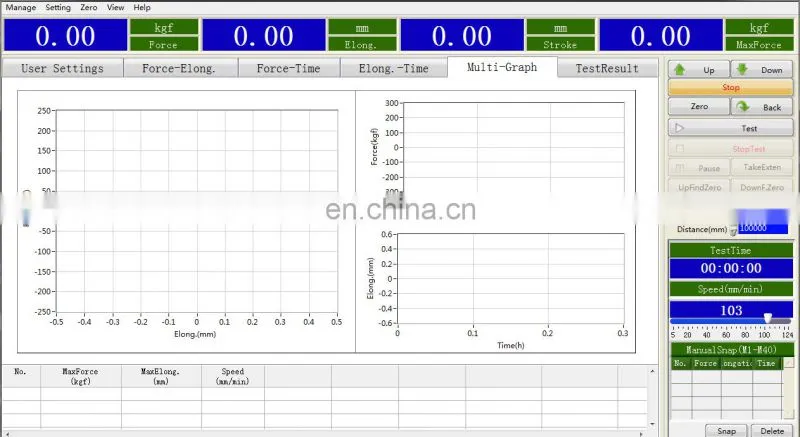

SOFTWARE – TM 2101
