Vibration Table Simulator Machine Vibration Test Equipment
- 150 Set / Sets per Month
- Shenzhen Guangzhou Ningbo Shanghai etc
- T/T Credit Card
You May Like
-
Automatic Box Electric Unconfined Compression Testing Machine
-
Transport Simulation Mechanical Vibration Test Machine Vibration Table Test Machine
-
Elmendorf Tearing Tester
-
Automotive Simulate Transportation Vibration Testing Tester Price
-
High Frequency Electro-dynamic 3 Axis Vibration Table Test Machine
-
Corrugated Box or Paper Edge Crush Tester
Product Details
Brand Name | Haida | Place of Origin | Guangdong, China | |
Model Number | HD-A521 | Power | Electronic |
Product Description

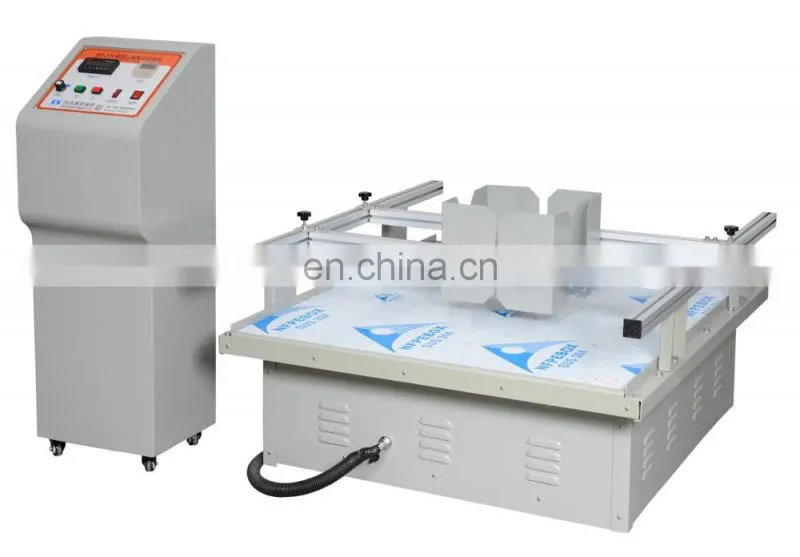

Vibration Table Simulator Machine Vibration Test Equipment
Vibration Testing Machine , which simulates a transportation environment, is applicable to the vibration test of toys, electronics, furniture, gifts, ceramics, communications, packaging, equipment, computer and automobile components, etc.
Features:
1. Low price, which is only 10% of the same products in the USA.
2. The digital screen display the vibration frequency
3. Use rail track for the installation of the test sample, operate easily and safely
4. The pedestal of the machine applies heavy style channel with vibration attenuation pad, convenient, stable, no need to install the land-end screw.
Vibration Testing Machine parameters
Maximum test load | 100kg |
Frequency range | 60-300rpm |
Amplitude range | 25.4mm |
Vibration mode | roundtrip |
Simulation speed | 25-40km/h |
Work table size | 1000x 1200mm |
Outside dimension | 1255x 1070x 660mm |
Power capacity | 1HP |
Weight | 125kg |
Enviromental conditions | temperature: 5-40º C, relative humidity ≤ 85% |
Speed mode | DC converter or AC Frequency control |
Power | 220V, 50HZ |
Design criteria | EN71, ANSI, UL, ASTM, ISTA |

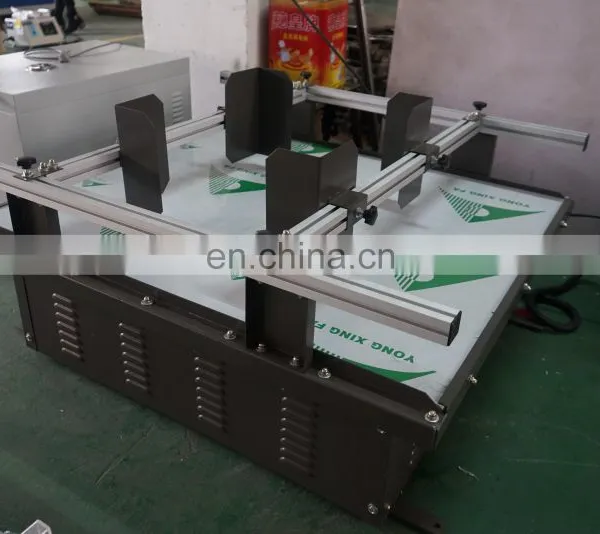

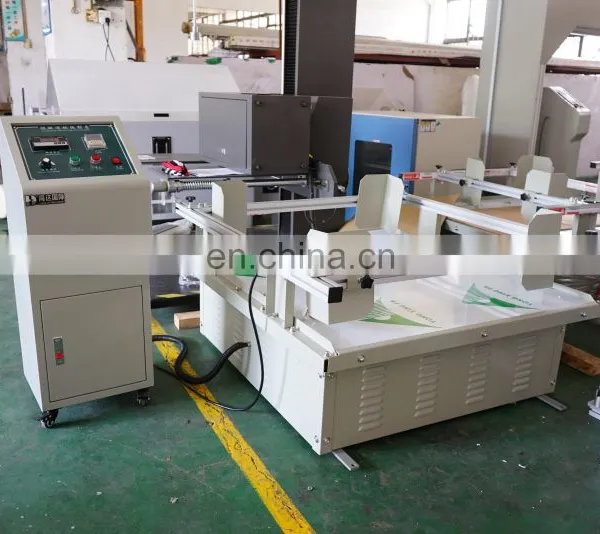

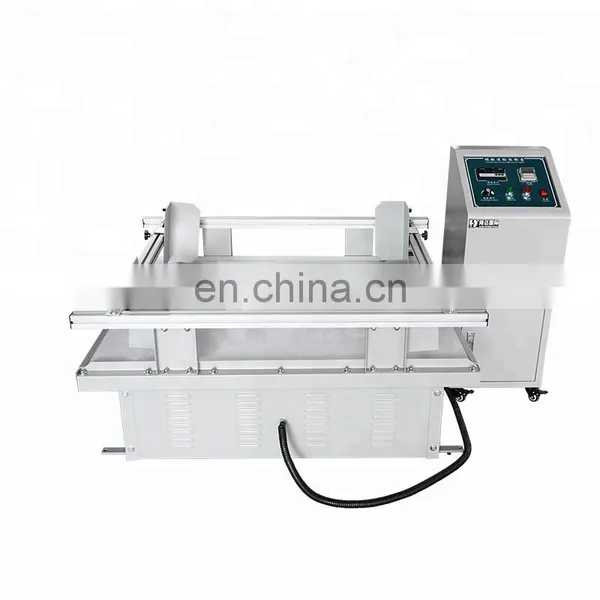

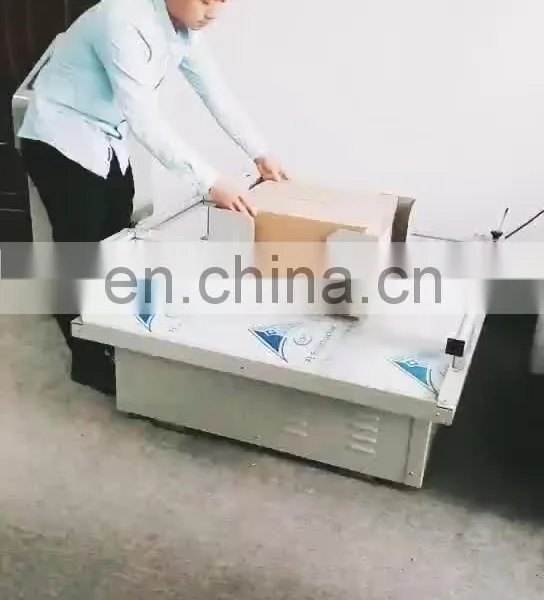

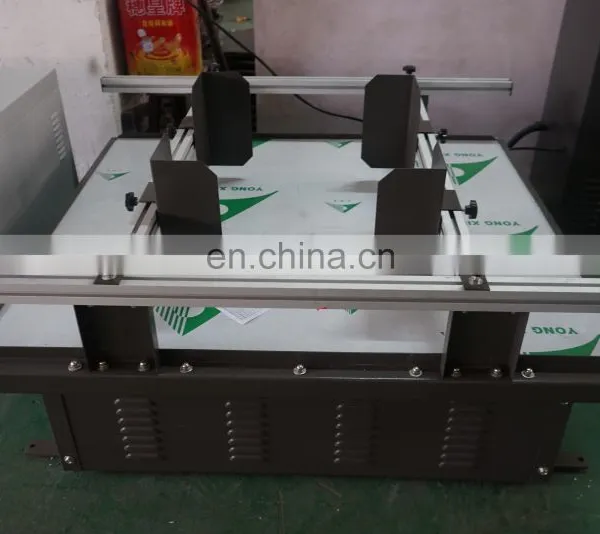

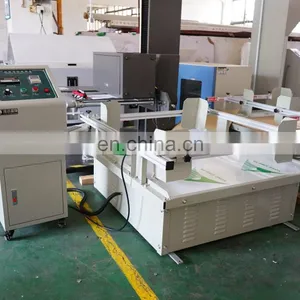

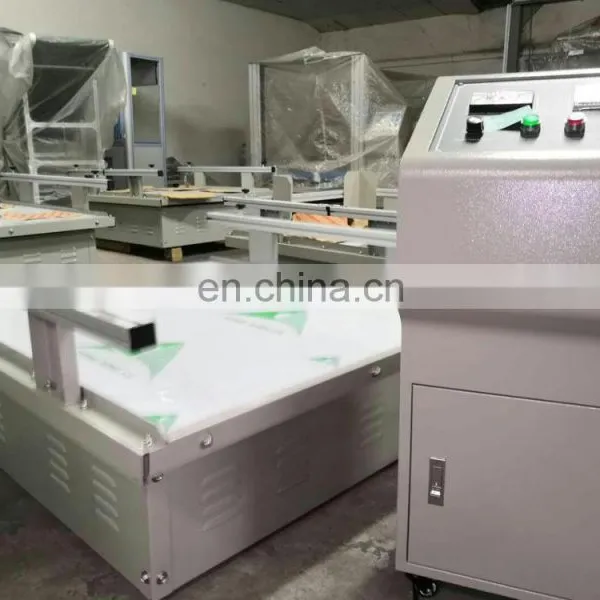

Images of Vibration Testing Machine
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
