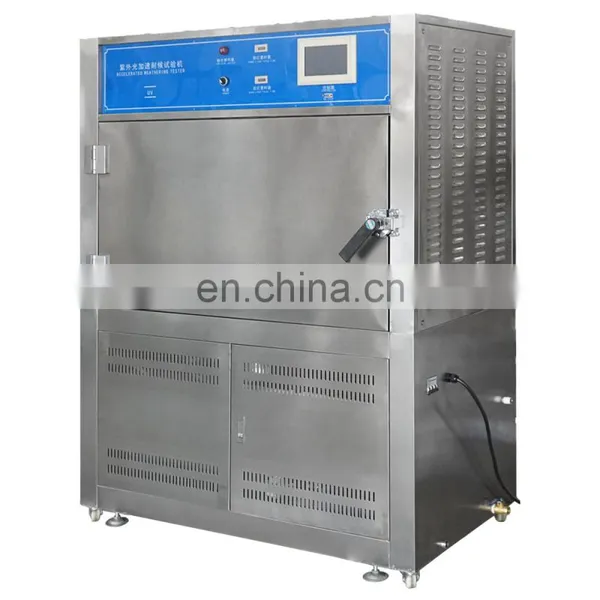

Uv aging cabinet

Name: Uv aging cabinet
Brand: Haida
Price: USD $1,800 - 1,800 / Set

FOB Price

USD $1,800 - $1,800 / Set

1 Set(Min.Order)

Supply Ability 1 Set / Sets per Month
Port Shenzhen
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Haida	Place of Origin:	Guangdong, China	Model Number:	HD-E802
Power:	Electronic

Product Description

Uv aging cabinet

Product details

Place of Origin	Guangdong;China (Mainland)
Brand Name	Haida
Model Number	HD-E802
Power	Electronic
Product Keywords	uv aging cabinet,uv aging box,uv aging anti-yellow testing chamber

GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1490*620*1620mm

Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)

Gross Weight: 180kg

HS Code: 8479899990

STANDARD FEATURES

Item	Specification
Internal dimension (WDH)	1140650500mm
External dimension (WDH)	13407001800mm
Chamber material	SUS#304 stainless steel
Temperature range	RT to 70℃
Temperature fluctuation	≤±1.0℃
Temperature uniformity	3℃
Humidity range:	≥75%RH
Controller	Programmable controller, LCD touch screen
Control mode	Balance temperature humidity control (BTHC)
Test cycle setting	Exposure, condensation and water spray test cycle is programmable
Water spray cycle	Spray 18mins in every 120mins / spray 12mins in every 60mins
Water usage	8L/day
Distance from sample to lamp	55±2mm
Centre distance between lamps	65~70mm
Irradiance range	0.45~0.95W/m²
UV lamps	Imported Atlas UV-B: 280-315nm (8pcs, 1600h lifetime)
Lamp power	40W/Piece
Specimen Size	Irregular sample
Testing time	0~999H, adjustable
Protection system	Overload short circuit protection Over temperature protection Water lacking protection Earth leakage protection Auto shut off protection

APPLICATIONS

1.Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.

2.To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.

3.Provide reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.

TEST CRITERIA

ISO 4892-3

ASTM G154
