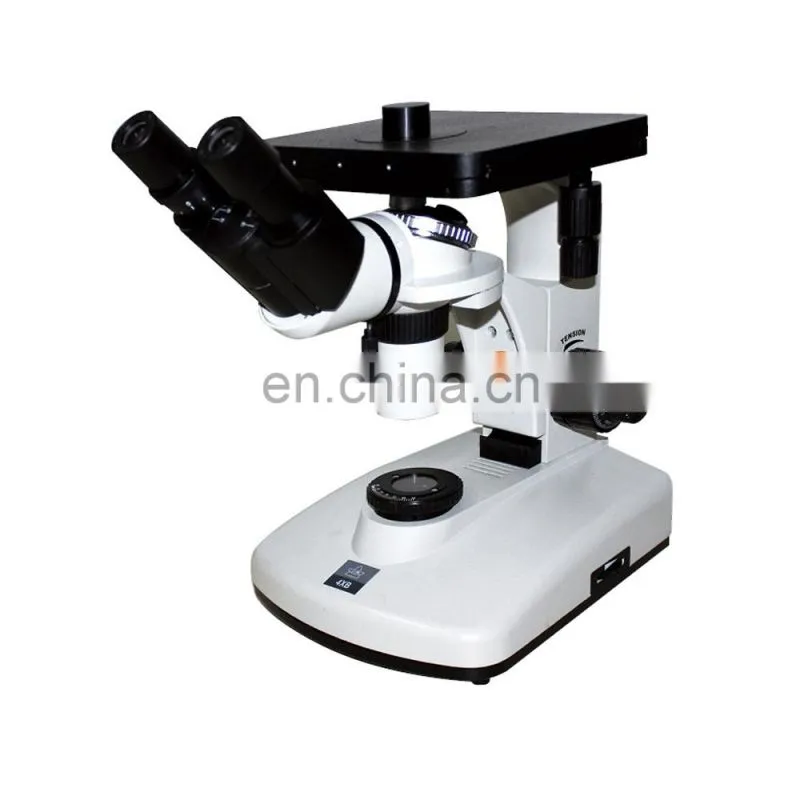

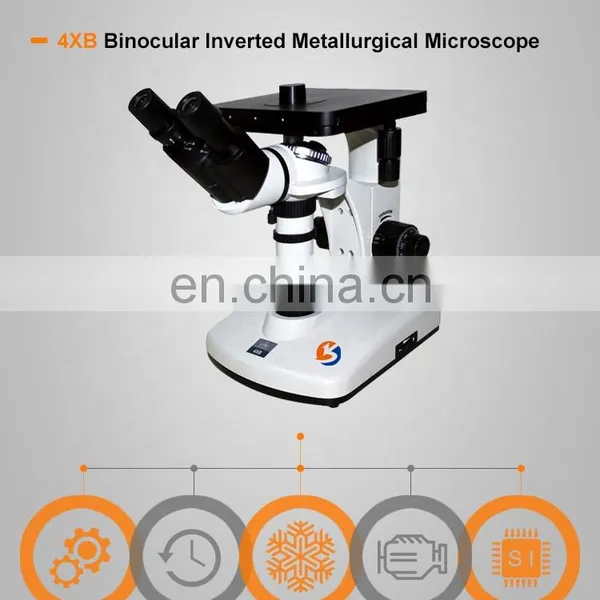

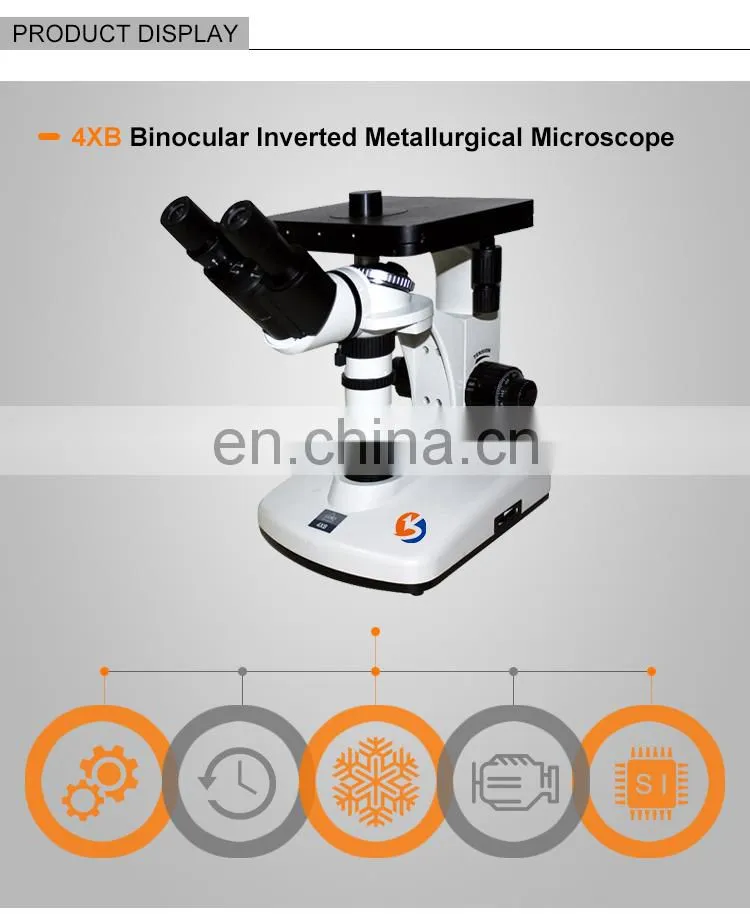

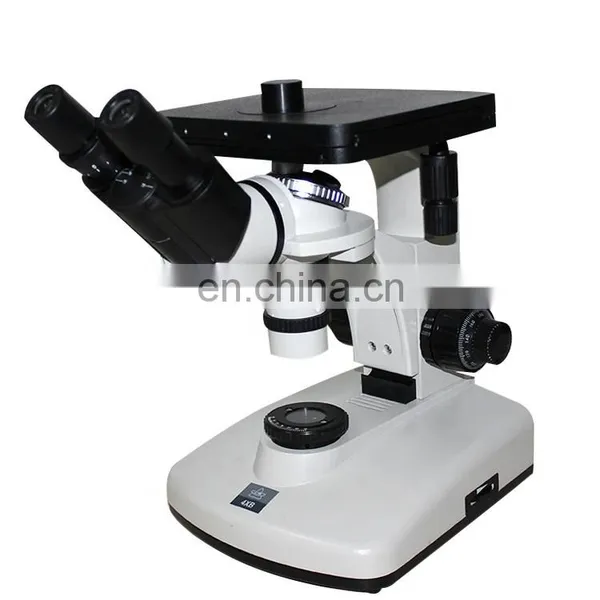

4XB High Quality Binocular Inverted Metallurgical Microscope
- 500 Set / Sets per Month
- QINGDAO
- T/T Credit Card
- XQ-2B Hot Mounting Press
- 4XB Low Price Binocular Inverted Metallographic Microscope from China
- GTQ-5000A Great High Precision Metallographic Sample Cutting Machine
- MoPao3S Automatic Metallographic Specimen Grinding Polishing Machine Grinder
- MP-2B Metallographic Specimen Grinding Polishing Machine/Stone Polishing Machine/Steel Ball Spring Grinding Machine
- MoPao3SAutomatic Metallographic Specimen Grinding Polishing Machine/Marble Polishing Machine/Horizontal Surface Grinding Machine
Product Details
Brand Name: | KASON | Place of Origin: | Shandong, China | Model Number: | 4XB |
Product Description
4XB High Quality Binocular Inverted Metallurgical Microscope
1.Function and Application:
4XB High Quality Binocular Inverted Metallurgical Microscope is used for the identification and
analysis of various metals and alloys of the organizational structure, the general microstructure of
the research work for the material after heat treatment. Microscope imaging is clear, of broad vision;
the overall design is in line with the man-machine functions,fit to being operated for a long time.
2.Main Technical Parameters:
2.1. Eyepiece: | ||||||
Category | Magnification | View Diameter | ||||
Flat-field Eyepiece | 10X | 18 mm | ||||
12.5X | 15 mm | |||||
2.2. Objective: | ||||||
Category | Magnification | Numerical Aperture (NA) | System | Working Distance | ||
Achromatic Objective Lens | 10X | 0.25 | Dry | 7.31 mm | ||
Semi-flat-field Achromatic Objective Lens | 40X | 0.65 | Dry | 0.66 mm | ||
Achromatic Lens | 100X | 1.25 | Oil | 0.37 mm | ||
2.3. | The Total Optical Magnification | 100X-1250X | ||||
2.4. | Mechanical Tube Length | 160 mm | ||||
2.5. | Rough Focusing Fretting Institutions | Focus Range | 7 mm | |||
Lattice-valued Scale | 0.002 mm | |||||
2.6. | Rough Dynamic Focusing Range | 7 mm | ||||
2.7. | Machinery Table | 75 * 50 mm | ||||
2.8. | Lighting Bulb | 6v 12w bromine tungsten lamp | ||||
2.9. | Containing Object (Diameter) | 10,20,42 |
