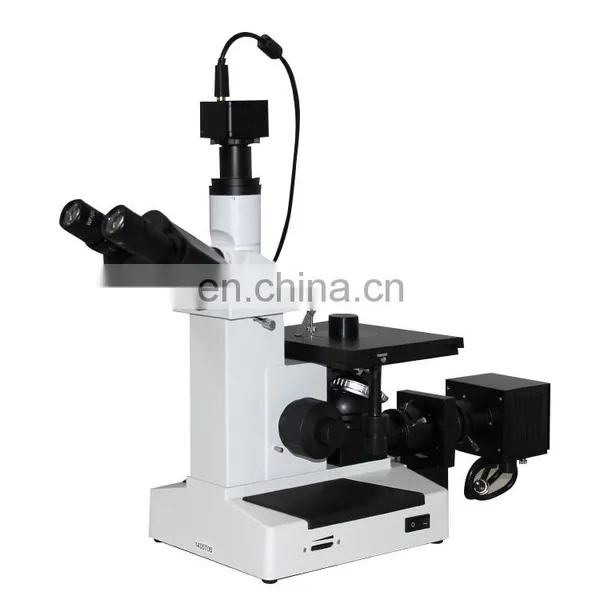

4XCE USB CCD Camera Digital Metallographic Trinocular Microscope with Camera
1. Function and application
2. Main technical parameters
Three eyepiece tube |
Tilting angle: 30° Adjustable range: 55-75mm |
Eyepiece |
Wide view eyepiece 10X (16mm) |
Objective lens |
Flat fielding achromatic objective lens 10X, 25X, 40X, 100X (oil) |
Loading table |
150 x 200mm Moving range: vertical 15mm, horizontal 15mm |
Eyepiece (optional) |
12.5X, 16X, 20X, 10X flat fielding graduation eyepiece (grid value 0.1mm) |
Objective lens (optional) |
60X, 80X |
Photographic device (optional) |
1. Image adapting lens, high resolution color CCD camera static and dynamic capturing card, image analysis software, EPSON color jet printer
2. Digital camera, specific adapting lens |
3. Configuration
1) Metallographic microscope: inverted trinocular microscope 4XC;
2) Adaptor: special adaptor
3) Image system: camera shooting CCD
4) Image analysis system: SRMAS software
4XCE CCD Metallographic Trinocular Microscope with Camera
