MP-2B Stepless Speed Metallographic Grinding Polishing Machine in Testing Equipment
1.Applications and features
This grinder polisher is of double discs, it can be operated at by two people at the same time. It is suitable for pregrinding, grinding and polishing metallographic specimens. Since the machine is speed-adjusted by a transducer, it can run between 50 and 1000rpm , which favors the machine with wide applications. The machine is equipped with cooling system which can cool down the specimen during primary grinding so as to prevent overheating and damage the metallographic structure . Featuring easy operation and reliable performance, it is an indispensable device for the factories, research institutions and college labs to prepare metallographic specimen.
2.Main Technical Parameters
No. |
Name |
MP-2B with diamond grinding disc |
|
1 |
Grinding disc/ diamond grinding disc |
diameter: φ200mm Rotate Speed:50-1000rpm |
|
2 |
polishing disc |
diameter: φ200mm Rotate Speed:50-1000rpm |
3 |
sand paper |
diameter: φ200mm |
4 |
Motor |
550W |
5 |
Net Weight |
60kg |
6 |
Gross weight |
70kg |
7 |
Working voltage |
single phase 220V 50HZ |
MP-2B Stepless Speed Metallographic Grinding Polishing Machine in Testing Equipment

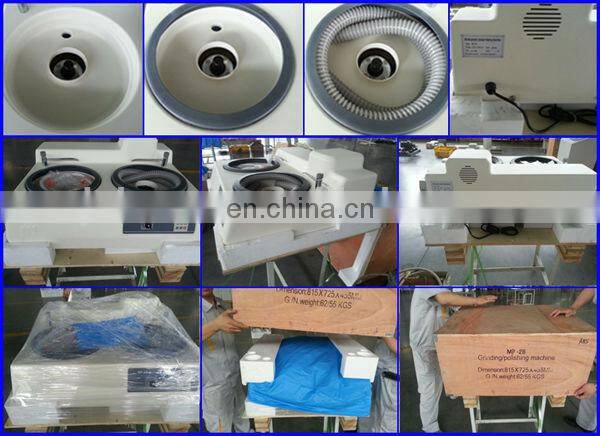

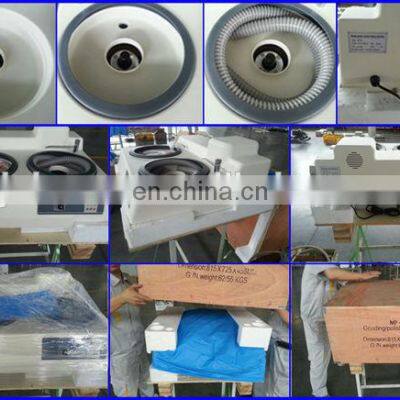

Detailed pics:

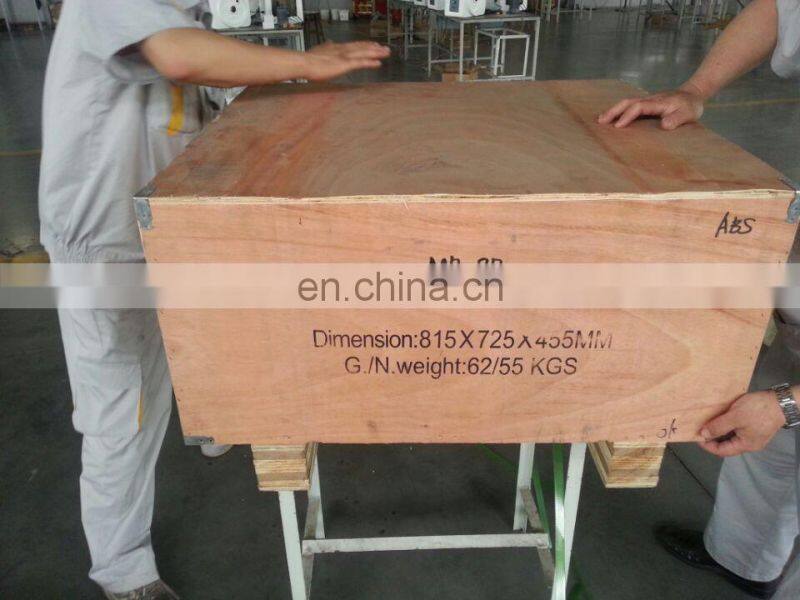

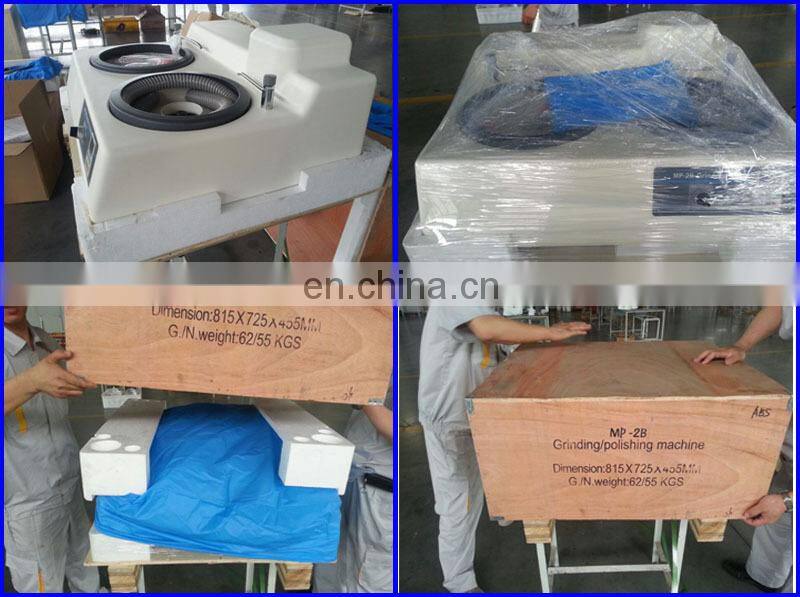

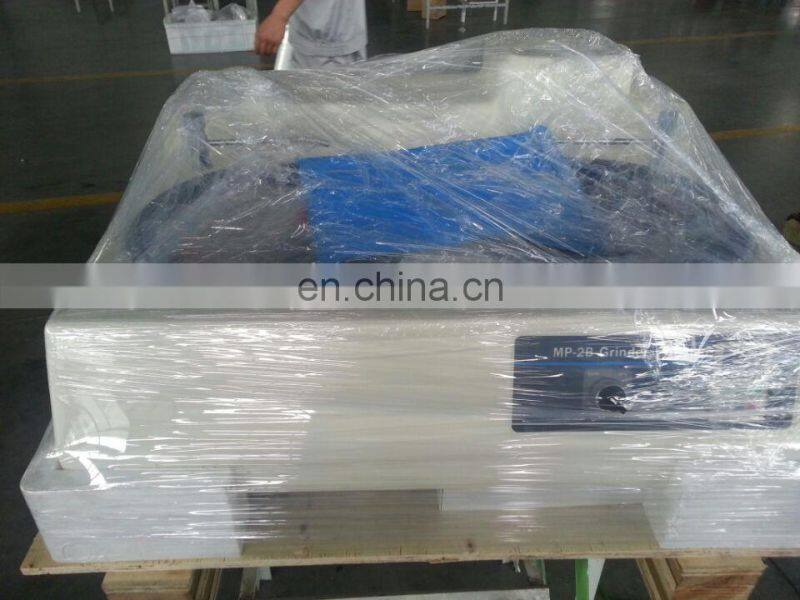

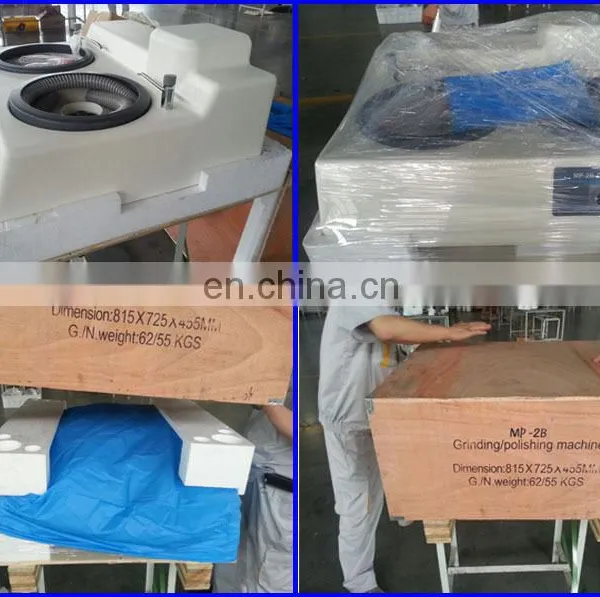

Standard Wooden Box Package:
Factory
Cooperate Partner
MP-2B Stepless Speed Metallographic Grinding Polishing Machine in Testing Equipment
