MRS-10A computer control four ball friction testing machine
1. Function
MRS-10A computer control four ball friction testing machine, in the form of slide friction, is used for the loading capacity evaluation of lubricants in the high pressure point contact condition. It can test the maximum non seizure load PB, sintered load PD and composite wear value ZMZ of lubricants. It can record frictional force and temperature curves. It also can measure the dimension of the wear scar and display the wear scar on the PC screen.
Applicable standards
GB/T12583-98 lubricant extreme pressure performance measurement (four ball machine method)
GB3142-82 lubricant bearing capacity measurement method (four goals)
SH/T0189-92 lubricant anti-wear performance measurement (four ball machine method)
SH/T0202-92 extreme pressure grease performance measurement (four ball machine method)
SH/T0204-92 grease anti-wear performance measurement (four ball machine method)
2. Technical parameters
Model | MRS-10A |
Range of test force | 10N-10KN |
Accuracy of testing force display | ±1% |
Accuracy of testing force display for a long time | ±1%F.S |
Range of testing force | 0~300N |
Accuracy of testing force | ±2% |
Range of spindle speed | 200~2000r/min |
Accuracy of spindle speed | ±5 r/min |
Temperature control range | Room temperature~200°C |
Accuracy of temperature control | ±2°C |
Range of test time | 1s~99hours |
The spindle rotate control range | 1-9999999 r |
Diameter of steel ball for test | φ12.7mm |
Dimension | 1200*870*1700mm |
Power suplly | 380V, 50Hz,3 phase |

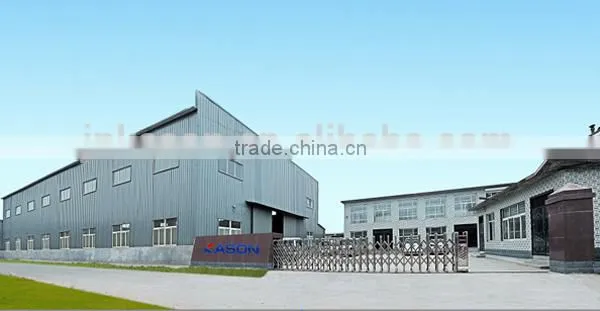

Factory Show:
