TLS-1000 1KN Digital Display Spring Tension and Compression Testing Machine
1.Application:
TLS-1000 1KN Digital Display Spring Tension and Compression Testing Machine is made based on the national spring tensile and compression tester standards of technical requirement, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Mainly used to tension spring,compression spring,saucer reed,tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring,mould spring,deformed spring and other precision spring tensile,compression,displacement and rigidity test and analysis.
2.Technical Parameter:
Model |
TLS-100 |
TLS-200 |
TLS-500 |
TLS-1000 |
TLS-2000 |
Max Testing Force |
100 N |
200 N |
500 N |
1000 N |
2000 N |
Tester Level |
1 Class (0.5 Class Optional) |
||||
Testing Range |
2%-100%FS |
||||
Min. Resolution Of Displacement |
0.01mm |
||||
|
Tensile Test Distance Between Two Pressure Plate |
750mm |
||||
|
Compression Test Distance Between Two Pressure Plate |
700mm |
||||
Pressure Plate Diameter |
Ø100mm |
Ø100mm |
Ø100mm |
Ø100mm |
Ø100mm |
Speed |
0.05mm/min~500mm/min (Arbitrary Set) |
||||
Accuracy |
±1% |
||||
Deformation Indicate Error |
≤±(50+0.15L) |
||||
Power Supply |
220V/50Hz |
||||
3.Feature:
3.1.Load display mode: Digital display with indication functions at upper & lower limit.
3.2.Displacement display mode:Staff gauge & vernier indication,with micro-adjusting function.
3.3.Loading mode: Manual loading, quick and convenient, displacement control through
positioning devices.
3.4.Overload protection: Digital cell glittering in case of over test load. (auto stop in case of
mechanically overload).
4.Configuration:
1.Host Machine |
1 Set |
2.Transmission (Gear Rack) |
1 Suit |
3.High Precision Weighing Transducer |
1 Piece |
4.High Precision Displacement Sensor |
1 Piece |
5.Digital Display Table |
1 Suit |
6.Printer |
1 Set |
7.Tensile Attachment |
1 Suit |
8.Compression Attachment |
1 Suit |
9.Instruction Book |
1 Piece |
10.Certification |
1 Piece |
11.Packaging List |
1 Piece |
12.Guarantee Book |
1 Piece |

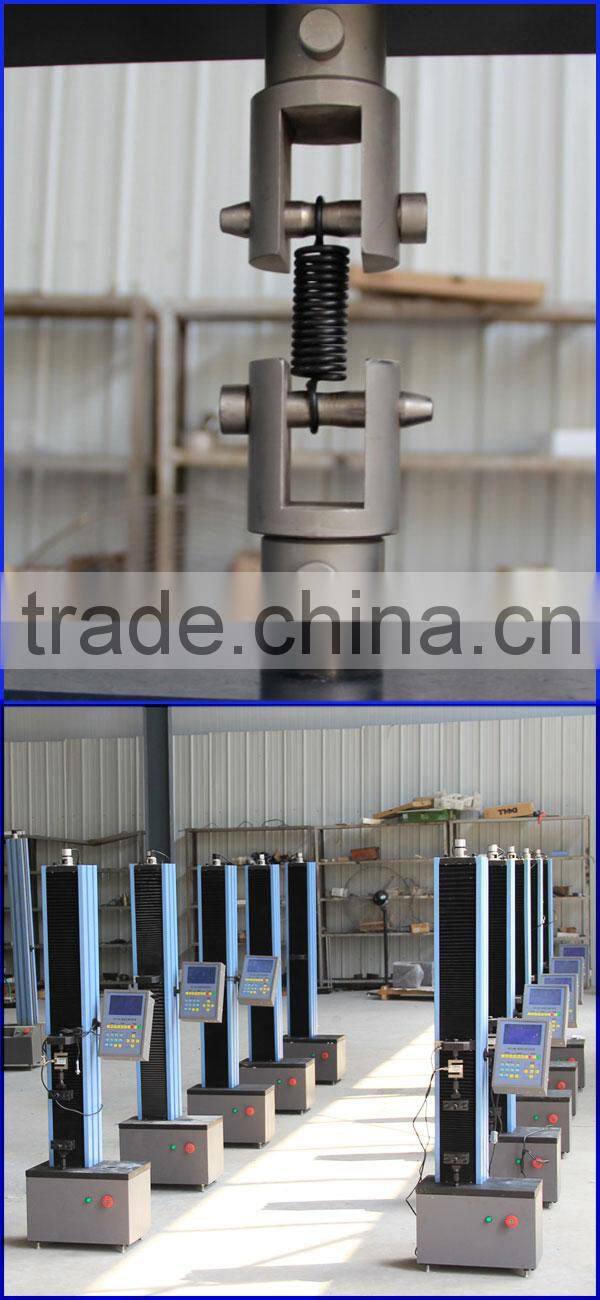

detail show:
Packaging Details:Standard Export Wooden Case Or As Customers' Requestments
Delivery Detail:7 Workdays After Receiving Customers' Payment
