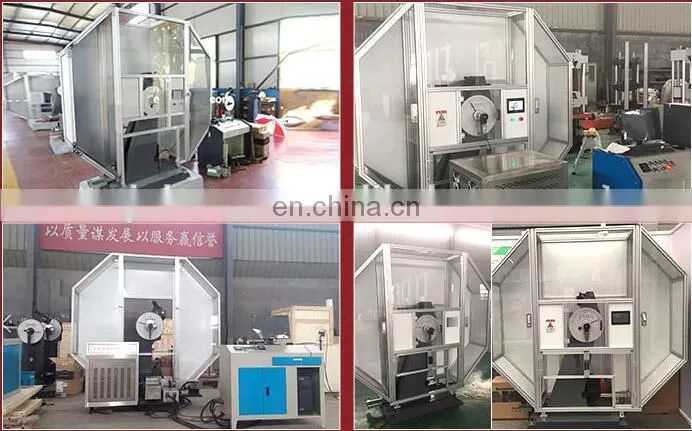

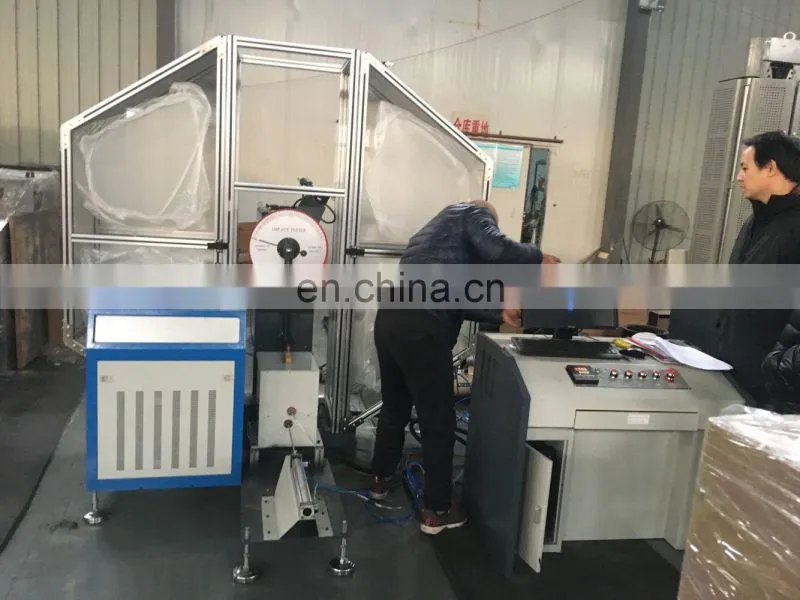

300J Computer Control Pendulum Charpy Impact Testing Machine Charpy Impact Test Equipment
US$ 8,100 - 8,300
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
KASON
Place of Origin:
Shandong, China
Model Number:
JBW-300B
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
500J 500j Computer Pendulum Charpy Impact TesterUS$ 5,550 - 5,700MOQ: 1 Set -
DWC-40 Charpy Impact Test Cooling Low Temperature Chamber Batch Impact Sample FreezerUS$ 1,400 - 1,500MOQ: 1 Set
-
150J 300J Manual Dial Display Charpy Impact Testing MachineUS$ 2,300 - 2,400MOQ: 1 Set
-
DWC-40 Charpy Impact Test High-low Temperature Test ChamberUS$ 1,400 - 1,500MOQ: 1 Set
-
50j Digital Display Plastic Impact Testing MachineUS$ 2,200 - 2,300MOQ: 1 Set
Brand Name
KASON
Place of Origin
Shandong, China
Model Number
JBW-300B
Power
Electronic
Usage
Impact Testing Machine
JBW -300C 300J Computer Control Pendulum Charpy Impact Testing Machine Charpy Impact Test Equipment Price
Application:
JBW-C Computer Control Semi-automatic Charpy Impact Testing Machine is used for measuring the Charpy impact resistance of metal and other materials.
Standards:
ISO 148, EN10045, ASTM E23, GB/T 229, GB/T 12778, GOST 9574
Main Technical Specifications:
|
Model |
JBW-300C |
||
|
Max. impact energy(J) |
150, 300 |
||
|
Distance from the axis of support to the center of percussion |
750mm |
||
|
Impact speed |
|||
|
Angle measurement resolution |
0.025° |
||
|
Raised angle |
|||
|
Round angle of the jaw |
R1-1.5mm |
||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||
|
Angle accuracy |
0.1° |
||
|
Power supply |
3phs, 380V, 50Hz or specified by users |
||
|
Net Weight (kg) |
900 |
||
|
Pendulum moment |
150J |
80.3848 Nm |
|
|
300J |
150.7695 Nm |
||
|
|
