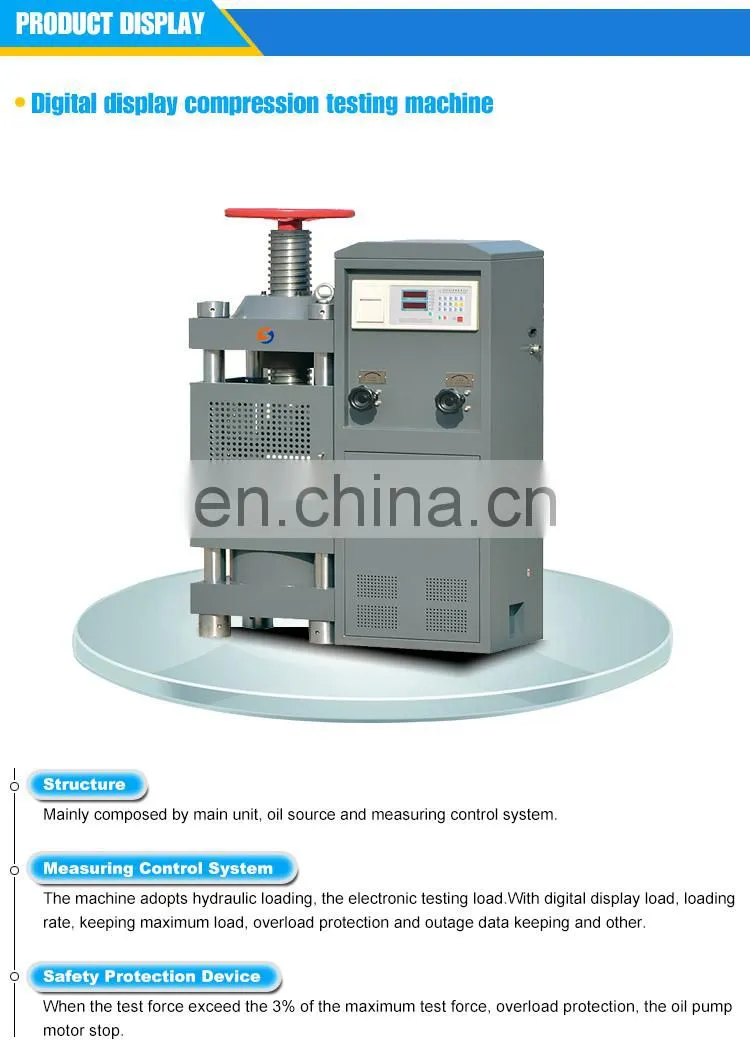

YES-2000 Lab Compression Testing Machine Price + Soil Lab Testing Machine+Pressure Testing Machine
Application:
YES-2000 Lab Compression Testing Machine + Soil Lab Testing Machine mainly used for concrete and other material compression resist testing.
Widely used in metallurgy,building materials,space flight and aviation,colleges and universities,
R&D institution lines.The test operation and data processing meets standard requirements.
Main Specifications:
|
Model |
YES-2000 |
|
Basic Parameter |
|
|
Max. Load |
2000 KN (200 TONS) |
|
Load Accuracy |
≤±1% |
|
Piston Stroke |
50mm |
|
Upper Pressure Plates Size |
240*240mm |
|
Lower Pressure Plates Size |
300*250mm |
|
Compression Space |
320mm |
|
Host Dimension |
900*400*1150 |
|
Weight |
600 KG |
|
Power |
1.0 KW |
|
Power Supply |
AC 220V, 50Hz (Can Be Custom) |
|
Printer |
Thermal Micro Printer |
|
Printing Paper Size |
Wide 57mm |
|
Oil Pump Motor Band |
SIEMENS Motor |
|
Test Control System Parameters |
|
|
Range Of Test Force |
10%~100% FS (200 KN~2000 KN) |
|
Force Load Way |
Manual Control Load Way |
|
Testing Space Regulating Way |
Manual Ball Screw Adjust |
|
Test Date Display |
Dual Row Nixie Tubes For Force and Loading Rate Display |
