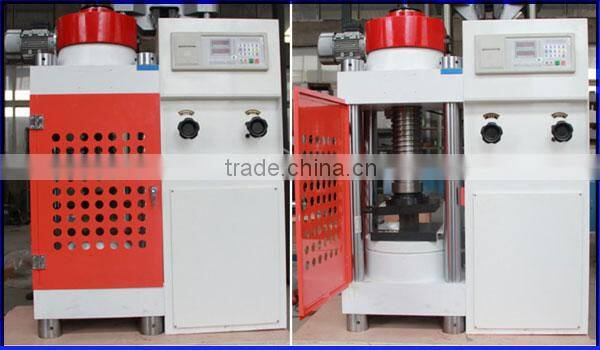

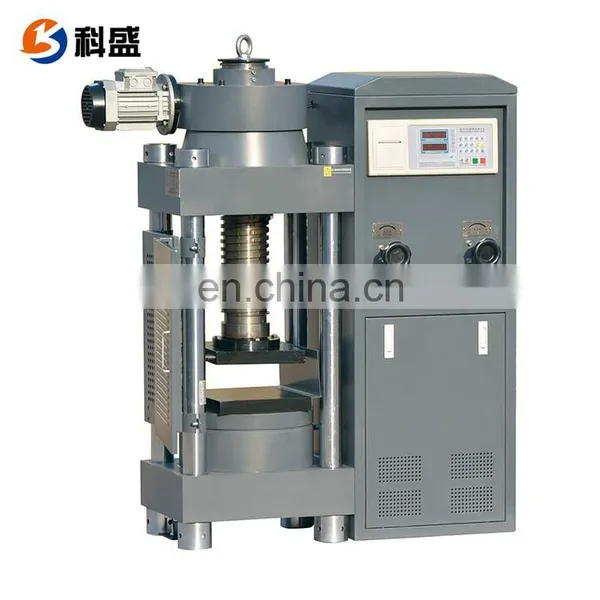

YES-3000D Beton Compression Test Machine/Concrete Compression Testing Machine from Testing Equipment Supplier or Manufacturer
1. Application
Digital display compression testing machine mainly used for brick, cement, concrete construction material and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
2. Product description:
* Structure :mainly composed by main unit, oil source and measuring control system.
* Space adjusting way: through rotating the hand wheel to realize the compression space adjusting
* Measuring control system:The machine adopts hydraulic loading, the electronic testing load. With digital display load, loading rate, keeping maximum load, overload protection and outage data keeping and other.
* Safety protection device: When the test foce exceed the 3% of the maximum test force ,overload protection, the oil pump motor stop.
3. Main Specifications
Model |
YES-3000D |
Max test force |
3000kN |
Test space adjusting way |
Electric ball screw adjusting |
Control way |
Manual control loading process |
Accuracy class |
1 class |
Test force range |
4%~100%F·S |
Test value accuracy |
Better than ±1% |
Oil cylinder stroke |
80mm |
Max distance between upper and lower plate |
340mm |
Max distance between two columns |
280mm |
Pressure plate |
270×270mm |
Main unit dimension |
1000×500×1450mm |
Power supply |
2.0Kw/AC380V |
Weight |
1500Kg |
4 Configuration:
4.1 High strength main unit- 1 set
4.2 one-piece Oil source control cabinet-1 set
4.3 High precision pressure sensor-1pc
4.4 Digital display operation instrument- 1 set
4.5 Mini printer- 1 pc;
4.6 Compression grip-- 1 set
YES-3000D Construction Lab Equipment
Factory
Cooperative Partners
Contact information:
Skype : kason006
Tel : +86-531-86113769
Fax :+86-531-86113759
Mobile: +86-15069028022
We have manufactured and exported all kinds of testing machines with CE certificate for 10 years. such as:
universal testing machine/ electric hydraulic UTM/ compression testing machine/ tension testing machine/ Beton Compression Test Machine/Concrete Compression Testing Machine from Testing Equipment Supplier or Manufacturer etc.
