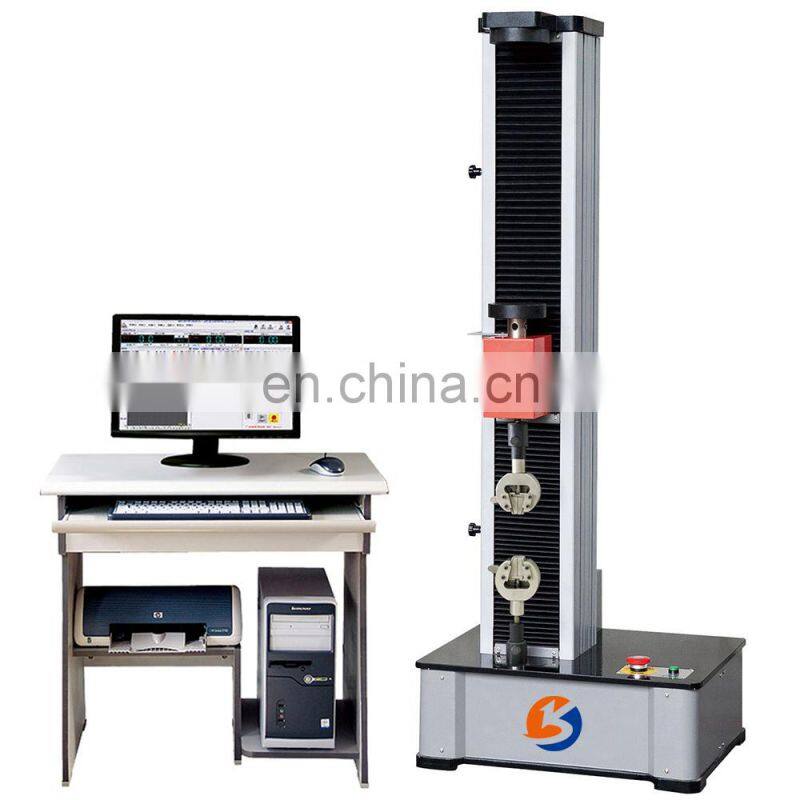

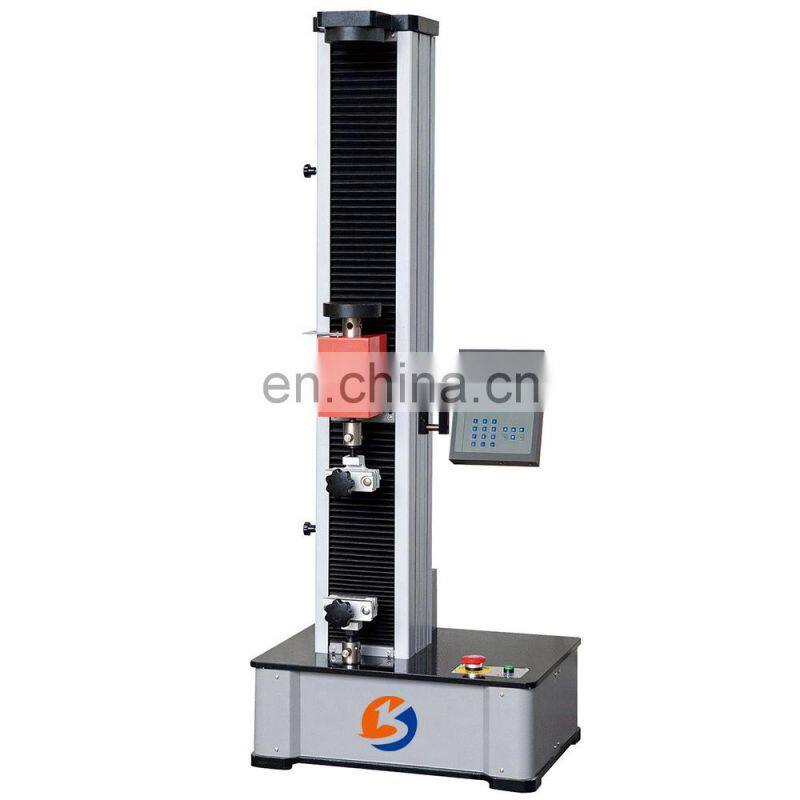

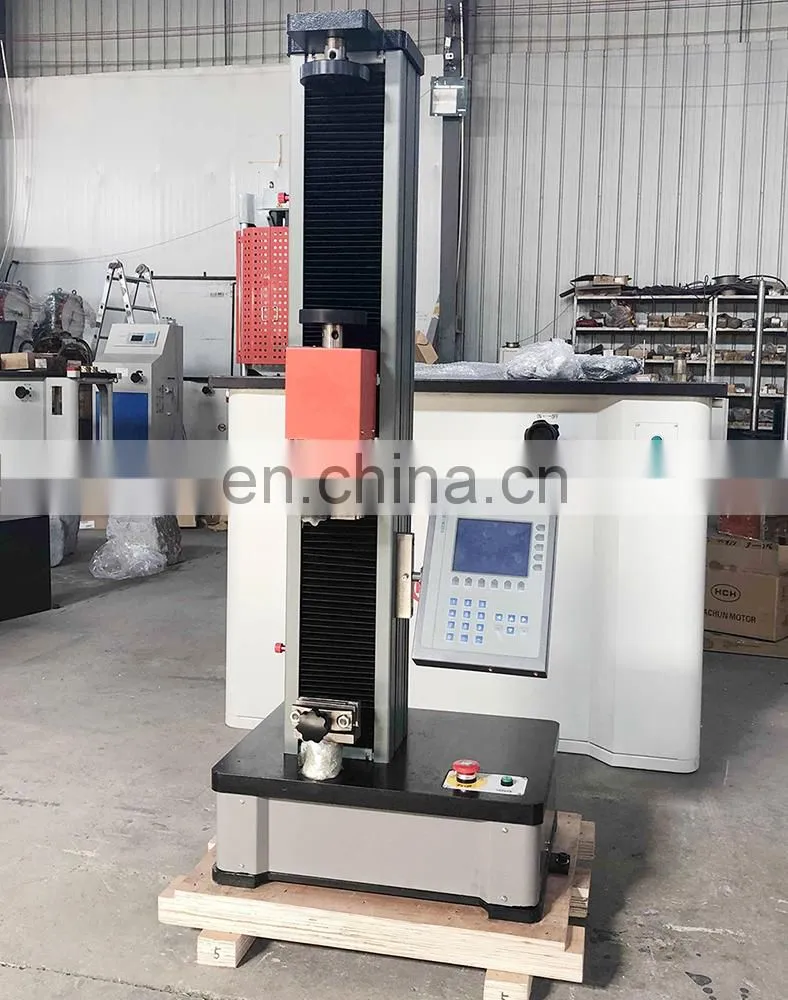

WDW Computer control single column Electromechanical universal testing machine for rubber tensile test machine
1. Application:
Leather Tensile Strength Testing Machine is designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc .
2.Main Specifications:
Model |
WDW-02 |
WDW-05 |
WDW-1 |
WDW-2 |
WDW-3 |
WDW-5 |
Max. Load |
0.2kN 20kgf 44.8lbf |
0.5kN 50kgf 112lbf |
1kN 100kgf 224lbf |
2kN 200kgf 448lbf |
3kN 300kgf 672lbf |
5kN 500kgf 1120lbf |
Load accuracy |
≤±1% |
|||||
Load range |
2%-100% of full scale |
|||||
Disp. resolution |
0.01mm |
|||||
Test speed |
0.05-500mm/min|0.001968-19.685in/min |
|||||
Tensile space |
750mm|30in |
|||||
Dimension |
550×350×1580mm |
|||||
Power supply |
220V, 1ph, 0.5KW |
|||||
Weight (kg) |
150KG|330lb |
|||||
3. Feature:
3.1 Main Unit:
Adopt single column structure, all testing can be finished in one space, the beam stepless lifting, adopt worm and wheel drive, move steadily with low noise.
3.2 Electrical measurement and control system
3.2.1 With protect function of overload,over current, over voltage, displacement limit,emergency stop, etc .
3.2.2 The controller can control more load sensor, high integration, stable and reliable, easy to adjust.
3.2.3 When finished testing, automatic stop.
3.2.4 Control system with programmable amplifier A/D conversion, digital I/O, counting and pulse happen (PWM), and other functions in one
3.2.5 Mechanical zero setting, automatic force measurement, zero setting, calibration and save, highly integrated control circuit
3.3 Software and software interface
3.3.1 Based on Windows operation platform, the software adopting modulus design, with simple operation and powerful functions
3.3.2 The control panel has defined all the control parameters, data dealing method and report content and form, different test can be set according to the control panel.
3.3.3 Program adopting open database structure, integrated the GB, ISO,ASTM,JIN, DIN testing methods and can customized according to special requirements
3.3.4 Can edit and set the report form freely, also can print the testing data .
4.Configurations:
4.1 High strength main unit----1 set
4.2 High precision arc synchronous deceleration system----1 suit
4.3 High precision ball ---2 pcs
4.4 Tensile fixture---1 pc
4.5 Measurement control system--1 suit
4.6 High accuracy photoelectric encoder----1 pc
4.7 Digital speed regulating Control system--1 set
4.8 Servo motor and Control system--1 set
4.9 High precision load sensor----1 pc
4.10 Lenovo computer---1 set
4.11 HS-max test software--1 suit
Leather Tensile Strength Testing Machine
