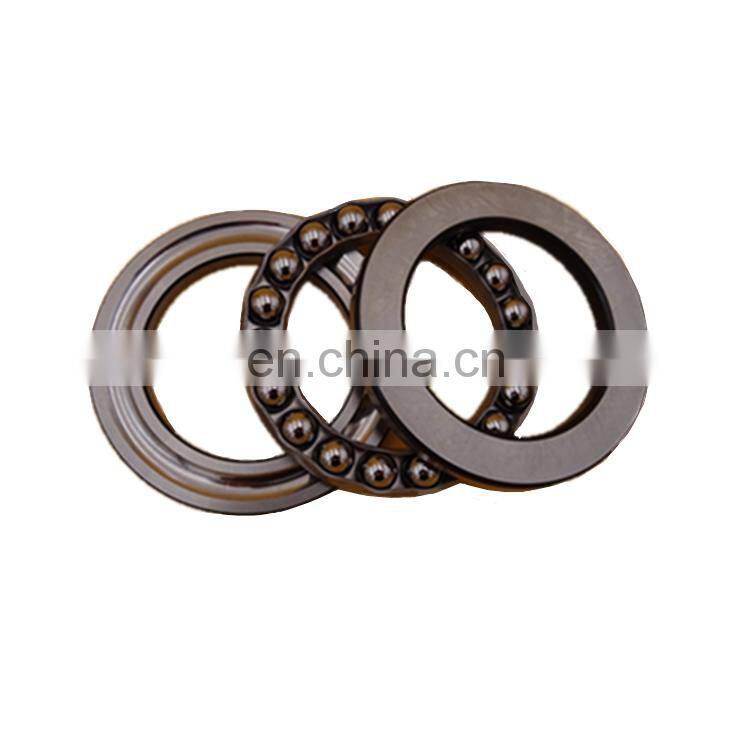

Most popular 70*125*44.2mm 53314 Single-Direction Thrust Ball Bearing
A part of our procusts:
Pictures show

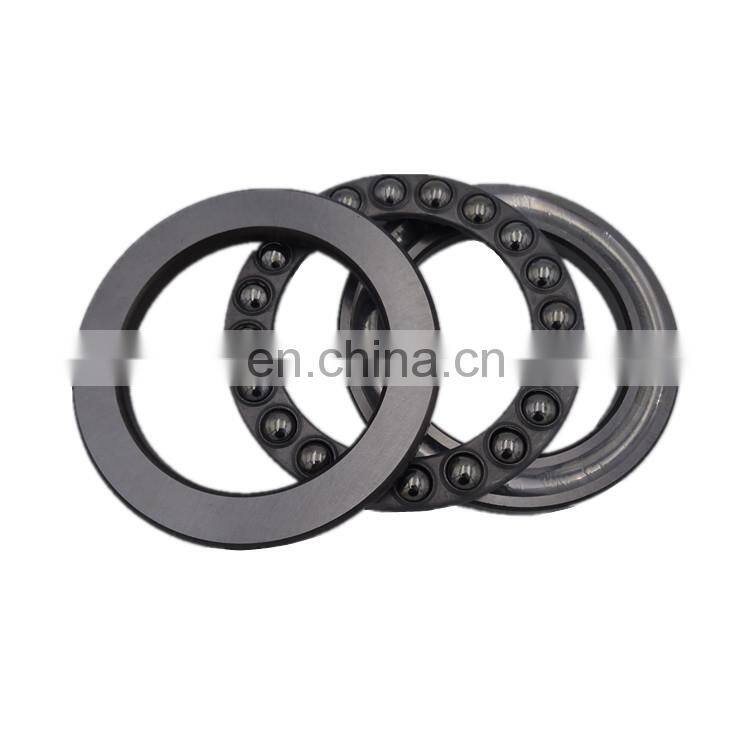

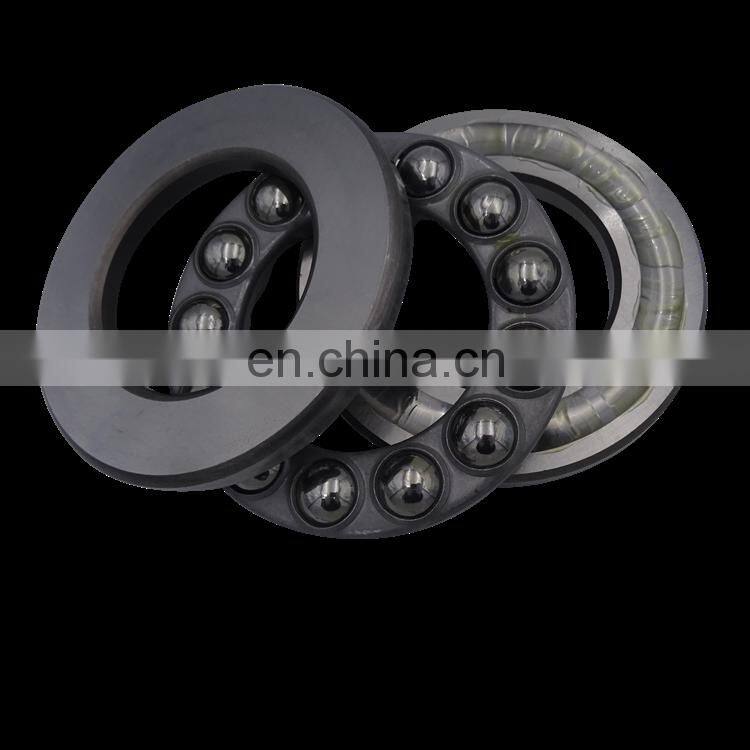

chrome steel cage

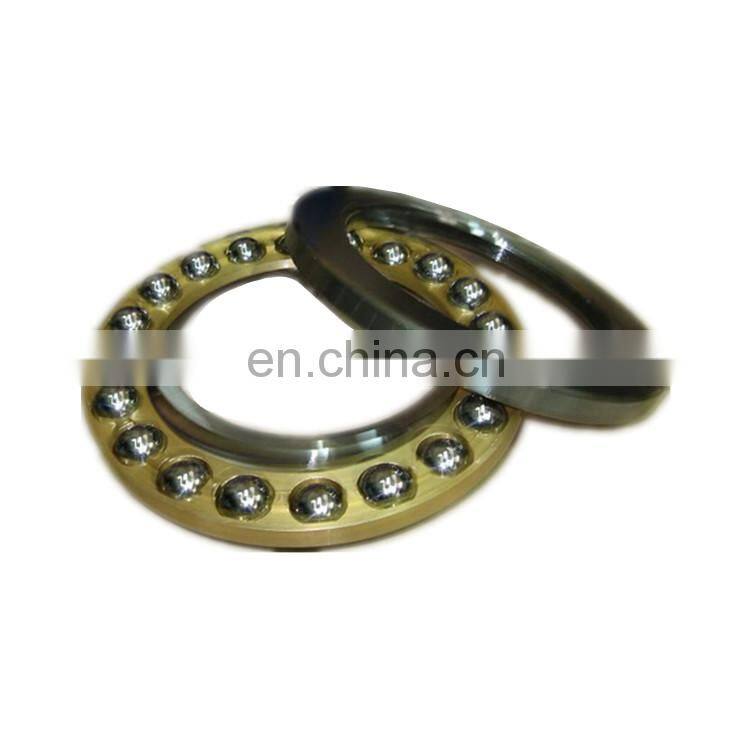

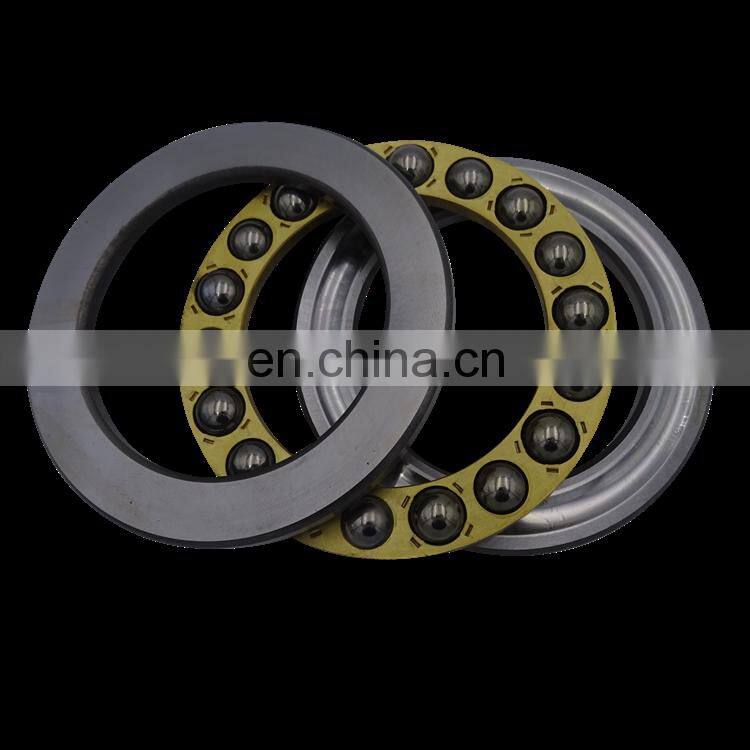

copper cage
Drawing
Related models and specifications
| designation | Dimensions | ||
| d (mm) | D (mm) | B (mm) | |
| 53211 | 55 | 90 | 27.3 |
| 51311 | 55 | 105 | 35 |
| 53311 | 55 | 105 | 39.3 |
| 51411 | 55 | 120 | 48 |
| 53411 | 55 | 120 | 50.5 |
| 51112 | 60 | 85 | 17 |
| 51212 | 60 | 95 | 26 |
| 53212 | 60 | 95 | 28 |
| 51312 | 60 | 110 | 35 |
| 53312 | 60 | 110 | 38.3 |
| 51412 M | 60 | 130 | 51 |
| 53412 M | 60 | 130 | 54 |
| 51113 | 65 | 90 | 18 |
| 51213 | 65 | 100 | 27 |
| 53213 | 65 | 100 | 28.7 |
| 51313 | 65 | 115 | 36 |
| 53313 | 65 | 115 | 39.4 |
| 51413 M | 65 | 140 | 56 |
| 51114 | 70 | 95 | 18 |
| 51214 | 70 | 105 | 27 |
| 53214 | 70 | 105 | 27 |
| 51314 | 70 | 125 | 40 |
| 53314 | 70 | 125 | 44.2 |
| 51414 M | 70 | 150 | 60 |
| 53414 M | 70 | 150 | 63.6 |
| 51115 | 75 | 100 | 19 |
| 51215 | 75 | 110 | 27 |
| 53215 | 75 | 110 | 28.3 |
| 51315 | 75 | 135 | 44 |
| 53315 | 75 | 135 | 48.1 |
| 51415 M | 75 | 160 | 65 |
| 53415 M | 75 | 160 | 69 |
| 51116 | 80 | 105 | 19 |
| 51216 | 80 | 115 | 28 |
| 53216 | 80 | 115 | 29.5 |
| 51316 | 80 | 140 | 44 |
| 53316 | 80 | 140 | 47.6 |
| 51416 M | 80 | 170 | 68 |
| 51117 | 85 | 110 | 19 |
| 51217 | 85 | 125 | 31 |
| 53217 | 85 | 125 | 33.1 |
| 51317 | 85 | 150 | 49 |
| 53317 | 85 | 150 | 53.1 |
| 51417 M | 85 | 180 | 72 |
| 51118 | 90 | 120 | 22 |
| 51218 | 90 | 135 | 35 |
| 53218 | 90 | 135 | 38.5 |
| 51318 | 90 | 155 | 50 |
| 53318 | 90 | 155 | 54.6 |
| 51418 M | 90 | 190 | 77 |
| 53418 M | 90 | 190 | 81.2 |
| 51120 | 100 | 135 | 25 |
| 51220 | 100 | 150 | 38 |
| 53220 | 100 | 150 | 40.9 |
| 51320 | 100 | 170 | 55 |
| 53320 | 100 | 170 | 59.2 |
| 51420 M | 100 | 210 | 85 |
| 53420 M | 100 | 210 | 90 |
| 51122 | 110 | 145 | 25 |
| 51222 | 110 | 160 | 38 |
Descriptions of Thrust Ball Bearing:
Single direction thrust ball bearings have two washers, with grooved raceways.
The curvature of the raceways is slightly larger
than that of the ball. Out of two washers, one is shaft washer & the other one
is housing washer.
The bore of the shaft washer isof the shaft dia & the bore of the housing washer
is slightly larger than that of shaft washer, to facilitate free rotation. These types
of thrust bearings are mainly used where axial load conditions are too large to be
accepted by radial bearings. They canaccept purely thrust load in single direction
& they are not suitable for speed applications.
Single direction thrust ball bearings: consist of two washers with raceways and balls guided
b a cage. Washers have flat seating surfaces, and that is why they must be supported so that
all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not
able to carry radial forces.
Double direction thrust ball bearings: have two cages with balls between the central shaft
washer and two houding washers with flat seating surfaces. The shaft washer has raceways
on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both
directions.
These bearing are widely used in automobile, electrical. (Home appliances, electric tools,
fitness equipment, motors, medical devices, motorbikes, textile machines)
A: 30% T/T in advance .70% against copy of B/L
B.30% T/T in advance .70% against L/C at sight
C.Western union
D.Paypal
E:50% in advance,the balance should be paid after seeing the picture of total goods.
F:Offical Bank Account
Why us
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
