Product Description
ZYSL Trust Ball Bearings
Discription of Thrust Ball Bearings:
Thrust ball bearings are produced as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.
Thrust ball bearings are separable, the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.
Two Types of Trust Ball bearings:
A: Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
B: Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
Specifications:
1. Thrust ball bearing Equipped with one-way, two-way two types
2. In order to allow installation error, either one-way or two-way, can choose spherical self-aligning spherical seat cushion type or with spherical seat type.
3. High quality steel - used can extend bearing life highest 80% super clean steel
4. The height of the grease technology - lubricants technology can make the life of the grease to extend and improve the performance of the bearing
5. The high grade ball - quiet and smooth when high-speed rotation
6. Use of options in the ring, can allow installation error.
Application of thrust ball bearing:
1.Thrust Ball Bearings should use close to the radial bearing, in order to prevent the effect of shafts deflection.
2.When using big size ball bearings on a horizontal shaft, preload should be implemented to prevent the clearance between housing washer and balls.
3.Under the inevitable circumstances of shaft deflection and misalignment, aligning seat washer should be applied.
Model |
DIA (mm) |
Weight (kg) |
|||
|
d |
d1 |
D |
H |
|
52202 |
15 |
10 |
32 |
26 |
0.085 |
52204 |
20 |
15 |
40 |
26 |
0.144 |
52205 |
25 |
20 |
47 |
28 |
0.23 |
52206 |
30 |
25 |
52 |
29 |
0.26 |
52207 |
35 |
30 |
62 |
34 |
0.405 |
52208 |
40 |
30 |
68 |
36 |
0.54 |
52209 |
45 |
35 |
73 |
37 |
0.64 |
52210 |
50 |
40 |
78 |
39 |
0.71 |
52211 |
55 |
45 |
90 |
45 |
1.12 |
52212 |
60 |
50 |
95 |
46 |
1.15 |
52213 |
65 |
55 |
100 |
47 |
1.36 |
52214 |
70 |
55 |
105 |
47 |
1.52 |
52215 |
75 |
60 |
110 |
47 |
1.6 |
52216 |
80 |
64 |
115 |
48 |
1.73 |
52217 |
85 |
70 |
125 |
55 |
2.22 |
Ps: This is only a little part model number of our Trust Ball bearings, If you fail to find the one you need, please contact us directly. Thanks in advance.

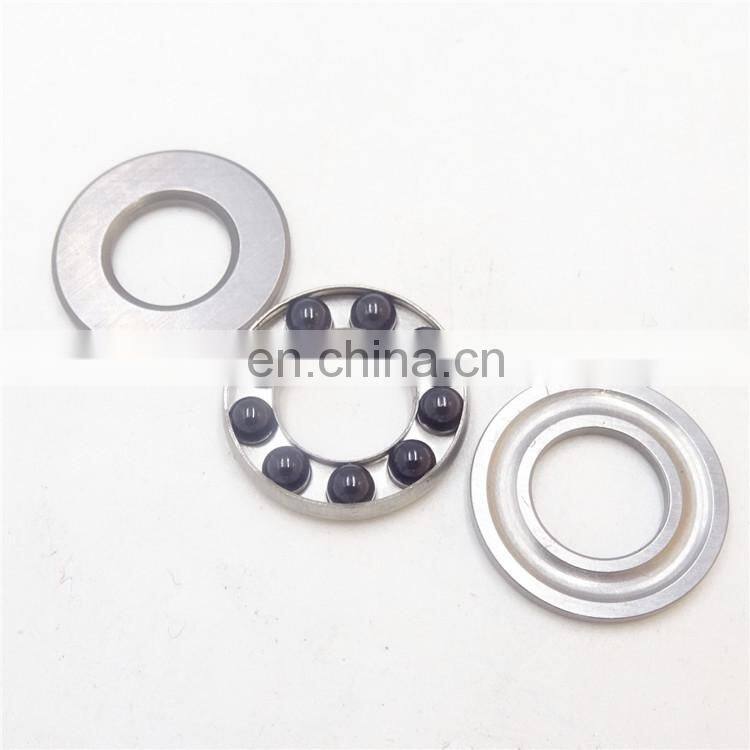

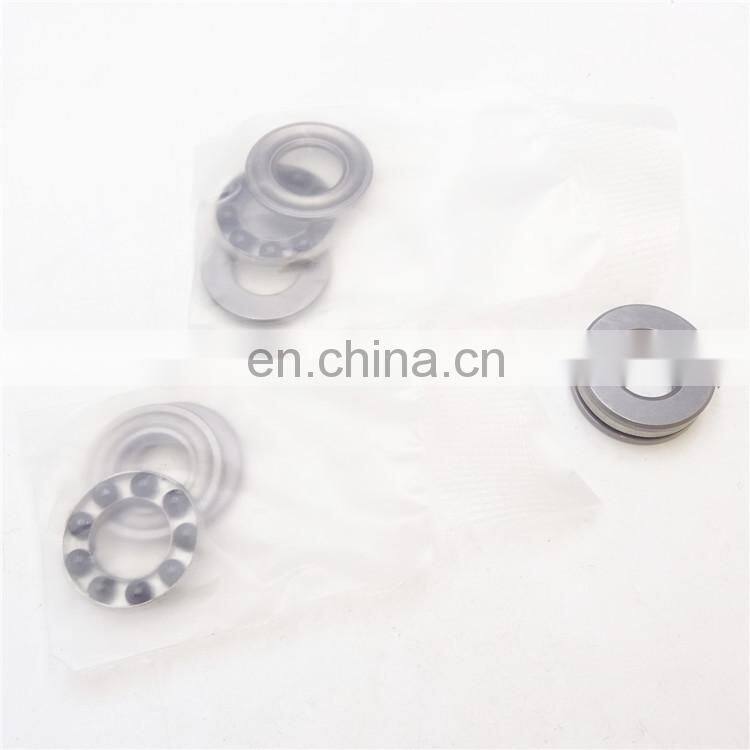

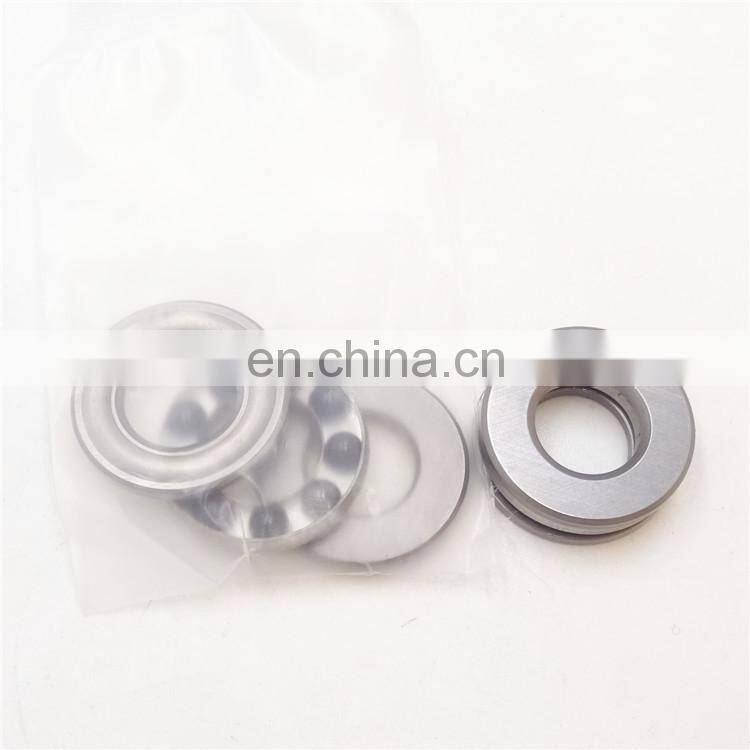

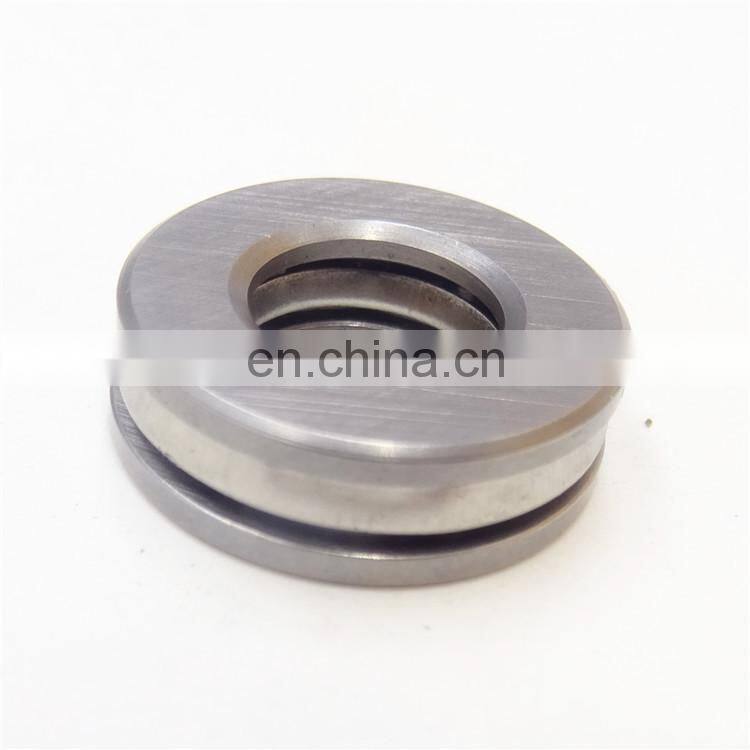

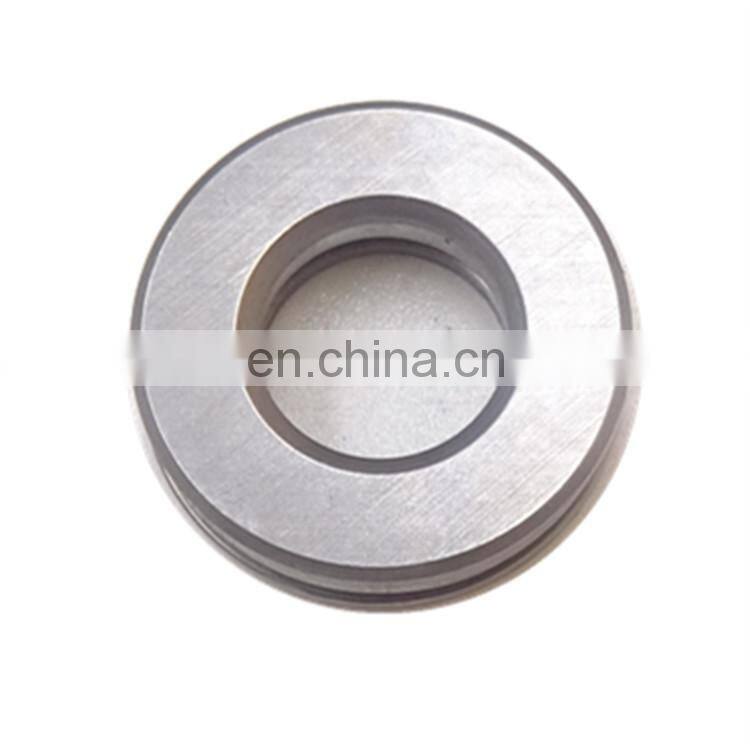

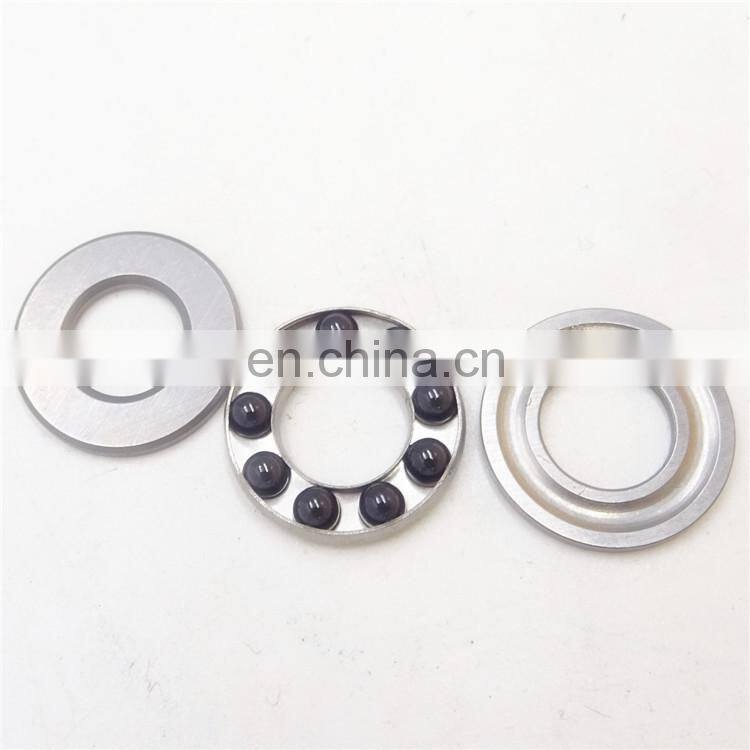

Products Show
Our Service
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
Our Company
Jinan Shenglei Bearing co.,Ltd is a product and trade integrated company specializing in bearings. We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers. So one of our biggest advantages compared others is that we can provide the best factory price based on the same good quality.
The company has passed ISO9001 Quality Management System and is managing the production in strict compliance with the international and domestic standards. "ZYSL" is the company's registered trademark. The main products include tapered roller bearings, self-aligning roller bearings, cylindrical roller bearings, deep groove ball bearings, self-aligning ball beairngs, angular contact ball bearings, thrust ball bearings, pillow block bearings, joint bearings, needle bearings, linear bearings, auto bearings,etc. Our bearing are mainly used in industry, machinery, rolling mill, textile, railway, metal lurgy, mining and other major manufacturers and facilitate the dealers in supporting and assistance service at any time. In addition,our technical team has also developed ceramic bearings, plastic bearings and stainless steel bearings etc. Our products are mainly exported to Middle East, Southeast Asia, South America, India, Pakistan, Canada, Singapore, Korea and other countries and areas.
We have been serving every customer by virtue of our superior pre-sale technological support and after-sale tracking service since the company was established. We dedicate to the proposition of “Quality assurance, great variety of goods, favorable price and punctual supply” and comply with the management idea of “Integrity,pragmatic and win-win “so that the most superior service and goods can be provided for our customers. We will also offer customers the most perfect service in terms of the selection of imported bearings, application direction, performance testing, and technology communication to grant every customer faith in all aspects of our products. We are sincerely looking forward to cooperating with more customers as well as friends and pushing forward prosperity of business. Warmly welcome people of vision from all walks of life in bearing industry to visit us for discussion and cooperation.
Packing & Delivery
Package:
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
Payment Terms:
A.100%T/T
B.30%T/T in advance,70% aganist copy of B/L(For large order)
C.Western Union
