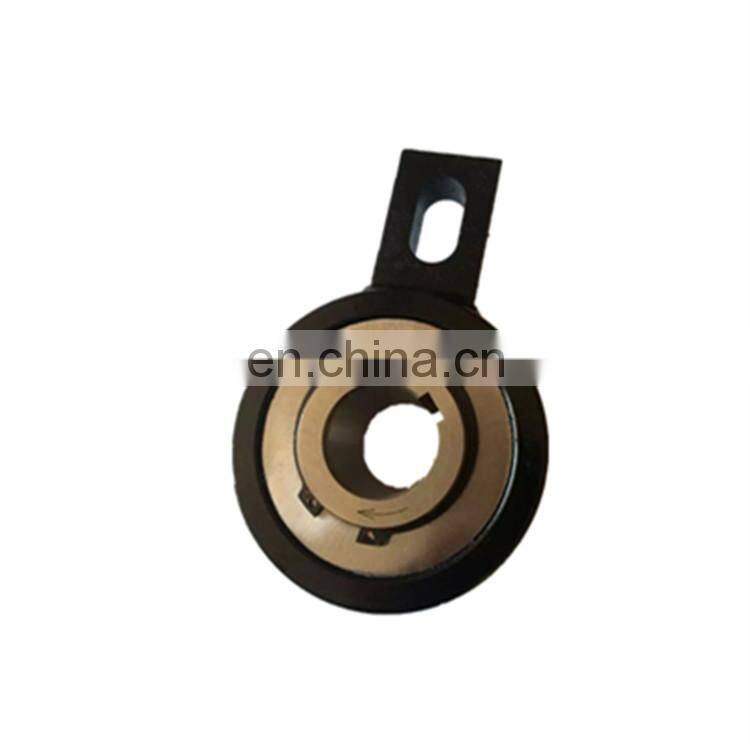

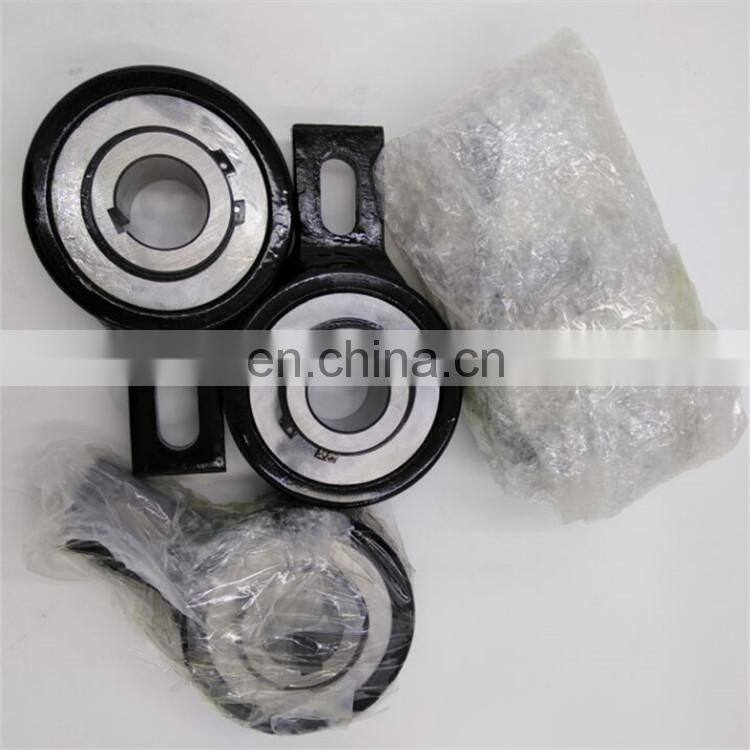

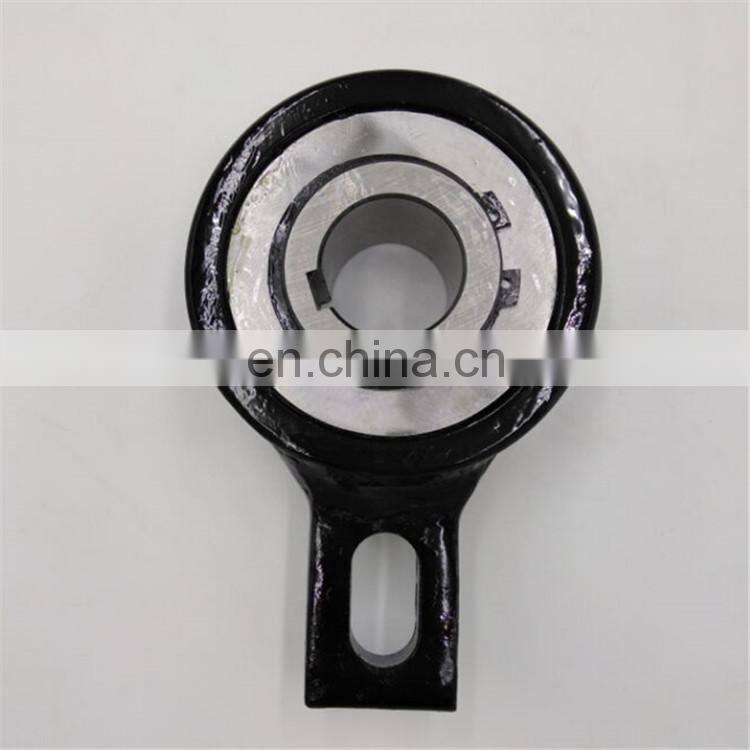

35x106x35 Backstop RSBW35M One Way Bearing With Torque Arm

US$ 55 - 55 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZYSL
Place of Origin:
Shandong, China
Model Number:
RSBW35
Contact Supplier Request Quote Chat Now
Jinan Shenglei Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ZYSL
Place of Origin Shandong, China
Model Number RSBW35
Seals Type Non-sealed
Precision Rating P0 P4 P5 P6

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

In the one-way bearing is free to rotate in one direction, while in the other direction to lock a bearing. Also called a one-way clutch bearing, but depending on the industry, the role of different named. The metal in the one-way bearing, comprising a number of rollers, roller or ball, and the rolling seat (hole) shape rolling it in only one direction and in the other direction generates a large resistance (The so-called "one-way").

Entity using one-way bearing GCr15 bearing steel, heat-treated hardness HRC61-65, bearing small size and high load carrying capacity, there is enough storage space for grease, may have come a long lubrication intervals.

Main purpose: textile machinery; printing machinery; automobile industry; appliances; detectors.

One-way bearing: HF, HFL, FC, FCB, RCB, RC, F, IWC, EWC, DC, CSK, CKB (B200), ASNU, CKA, FWD, NF

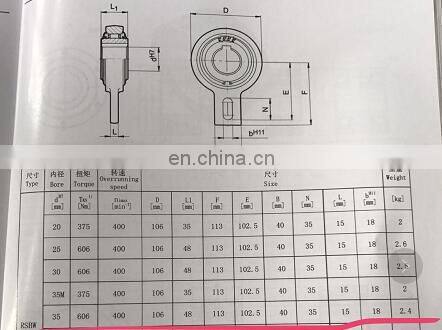

Model:



Type Size   Overrun   Weight
speed
RSBW dH7 TKN1) nimax D L 1 F E B N L bH11
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
20 375 400 106 35 113 102.5 40 35 15 18 2
25 606 400 106 48 113 102.5 40 35 15 18 2.6
30 606 400 106 48 113 102.5 40 35 15 18 2.5
35M 375 400 106 35 113 102.5 40 35 15 18 2
35 606 400 106 48 113 102.5 40 35 15 18 2.4
40 1295 300 132 52 125 115 60 35 15 18 4.6
45 1295 300 132 52 125 115 60 35 15 18 4.5
50 1295 300 132 52 125 115 60 35 15 18 4.5
55 1295 300 132 52 125 115 60 35 15 18 4.4
60 2550 250 161 54 140 130 70 35 15 18 6.5
70 2550 250 161 54 140 130 70 35 15 18 6.4
80 4875 200 190 70 165 150 70 45 20 25 9.9



Ps: This is only a small part modle number of bearings we have, if you fail to find the one you need, please contact us directly. Thanks in advance.



RSBW is a DC sprag type freewheel. It is self-contained,  centered by plain bearings for  low rotational speeds and sealed using shield protected Outer Rings.



Unit is delivered grease lubricated ready for installation in either a horizontal or vertical position.



Primarily used as a backstop, this type provides a high torque capacity with a minimum space



requirement.
The design allows installation in difficult environments such as high humidity or water splash areas.



A bolt, secured to a fixed part of the machine and passing through the slot in the torque arm,



provides the rotational stop. Radial clearance on this bolt should be equal to 1-3 % of the slot



width. The torque arm and the bearings must not be prestressed.

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

35x106x35 Backstop RSBW35M One Way bearing with torque arm

1.High speed, High Precision, Low Noise, Long Service Life


2.Wide Array of Applications

3.Large Inventories

4.Small order accept

5.Competitive Prices and High Quality

6.Various Brands

7.Require little maintenance

8. OEM is supported

9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

35x106x35 Backstop RSBW35M One Way bearing with torque arm

 35x106x35 Backstop RSBW35M One Way bearing with torque arm
