Direct Stroke Electronic Electric Actuator Price Control Valve Electric Actuator Zkz-4300m Zkz-4300d

US$ 400 - 1250 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Freya
Place of Origin:
China
Model Number:
zkz-4300m zkz-4300d
Contact Supplier Request Quote Chat Now
Tianjin Freya Automation Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN XINGNAG PORT
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Freya
Place of Origin China
Model Number zkz-4300m zkz-4300d

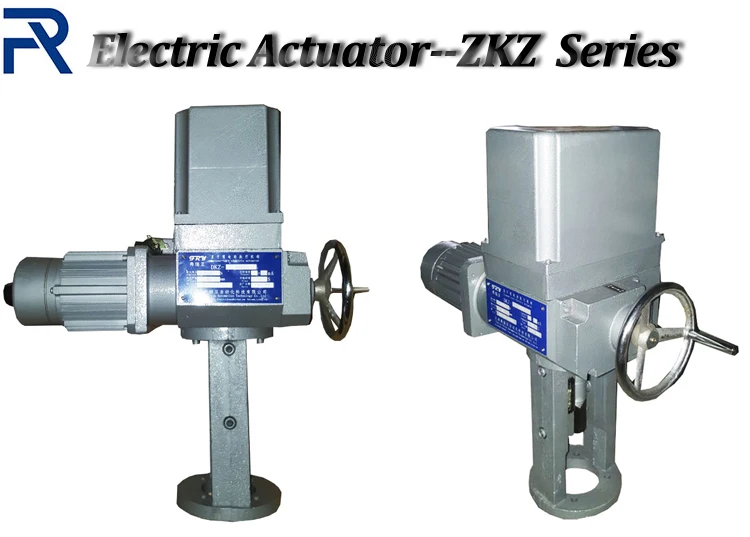

ZKZ type linear electric actuator, an execution unit in DDZ type electronic unit combined instrument, accepts signals from a regulating unit (or computer) and automatically controls the actuator to complete regulating tasks. It is widely applied to power stations, chemical, petroleum, metallurgy, building materials, heat supply, light industry, water treatment and other industries.

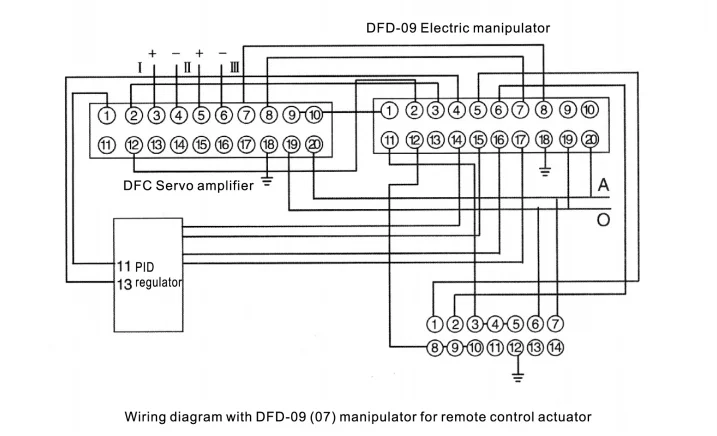

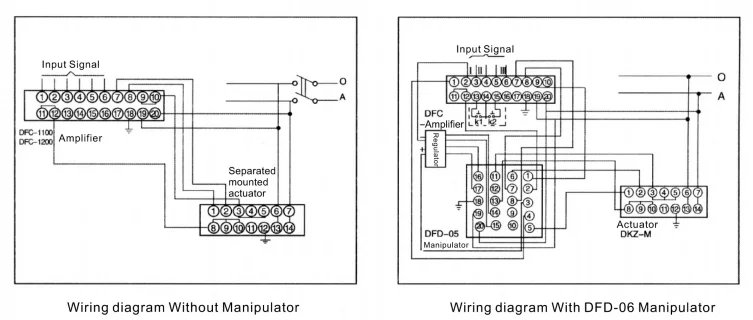

ZKZ type electric actuator with various electric Manipulators can achieve undisturbed switching of "Manual Auto" of the regulating system for remote manual operation on an object to be regulated in a timely manner.

ZKZ series electric actuator is divided into three types of products: electronically integral, ordinary, and explosion proof.

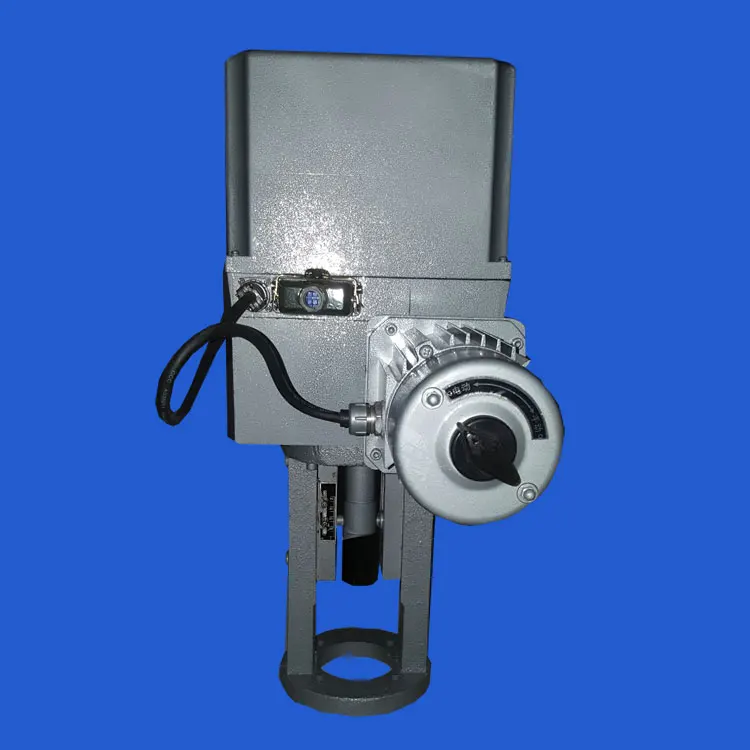

44.jpg   DKZ_10.jpg

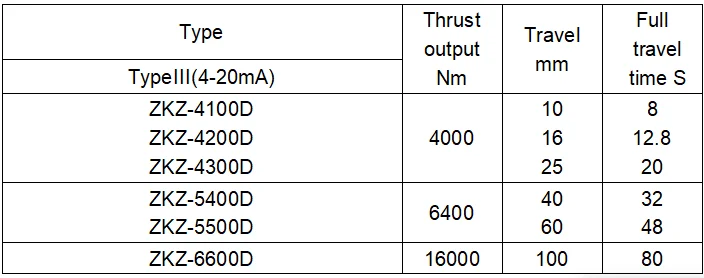

Type

Thrust
output
Nm

Travel
mm

Full
 travel
 time S

TypeIII(4-20mA)

TypeII(0-10mA)

ZKZ-4100M
ZKZ-4200M
ZKZ-4300M

ZKZ-410M
ZKZ-420M
ZKZ-430M

4000

10
16
25

8
12.8
20

ZKZ-5400M
ZKZ-5500M

ZKZ-540M
ZKZ-550M

6400

40
60

32
48

ZKZ-6600M

ZKZ-660M

16000

100

80





1. Input signal: Type II 0-10mA DC; Type III 4-20mA DC

2. Input channel: 3

3. Input channel impedance: Type II 200Ω; Type II 250Ω

4. Output torque: See table above

5. Full travel time: See table above

6. Limit of basic error:±2.5%

7. Dead zone:≤3%

8. Damping characteristic: ≤3 half cycles

9. Return difference: ±1.5%

10. Power supply voltage: 220V (±10%,±15%) at frequency 50Hz

11. Service environment temperature: Actuator:-10~+55°C or -25~+70°C; Amplifier:0~+50°C

12. Relative humidity of service environment: Actuator:≤95%; Amplifier: 10%-70%













Shipment Term:

1. Orders processed timely after the payment verification .

2. Terms of Deliver: FOB / CFR / CIF / EXW etc.

3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .

Payment Term:

1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.

2. Advance payment should be made within 3 days of order .

Our Services

Our company provides you with the following services free of charge:

1. All-round electric actuator and valve technology selection service

2. High-quality post-product maintenance and technical analysis services

3. Accept other related cooperation.
