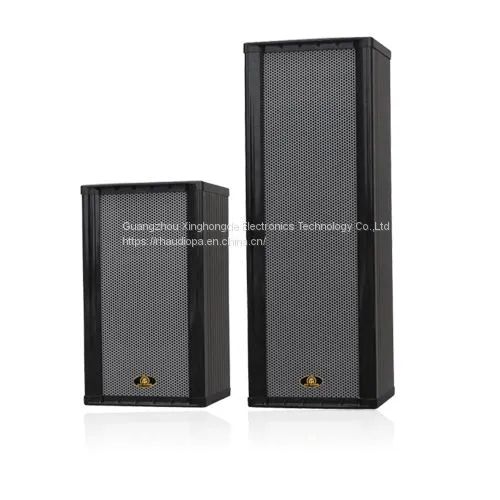

IP Speaker RH6030 & RH6060
※ With Power Saving Mode.
※ Built-in D type digital amplifier.
※ Two way system with separate woofer and tweeter.
※ All metal extruded aluminum alloy enclosure with cast aluminium top and bottom plates are fully dust free and
waterproof IP65 rated, suitable for in/outdoor use.
※ Support protocols of UDP,TCP/IP,IGMP.
※ Standard Rj45 network port.
※ Easy and secure installation through the supplied strong metal mounting brackets.
※ Are suitable varied applications such as stations,gardens, swimming pools,stadiums,and tennis courts,etc.
Column SpeakersPA SystemPublic Address System
Download
DescriptionSpecification
The RH-AUDIO Full-weather IP Speaker Column Series which produce good clear sound and acoustical clarity for background music and paging,are suitable for indoor and outdoor applications such as stations,gardens, swimming pools,stadiums,and tennis courts,etc.
Even in extreme weather conditions, the all metal extruded aluminum alloy enclosure with cast aluminium top and bottom plates are fully dust and weatherproof, IP65 rated.
Easy and secure wall mount installation in outdoor area through the supplied strong metal mounting brackets.
Bottom Plate Details:
(1). Address code reset button: Keep pressing this button for 5 seconds to restore the factory default IP address 192.168.1.105.
(2). Power connector:This connector is used to connect the AC power source to active speaker.
(3). RJ45 interface: Connecting the Ethernet/switch port.
(4). Config. interface:The connection can set address code with computer.
(5). AC power fuse: 1A.
(6). Power switch: Switch on/off the speaker.
(7). Power indicator: This indicator lights in red,means power supply is normal.
Specifications
Model |
RH6030 |
RH6060 |
Rated Power |
30W |
60W |
Network Port |
Standard RJ45×1 |
Standard RJ45×1 |
Protocols |
TCP/IP,UPP,IGMP |
TCP/IP,UPP,IGMP |
Audio Format |
MP3/MP2 |
MP3/MP2 |
Sampling Rate |
8K~48KHz |
8K~48KHz |
Network Rate |
10Mbps |
10Mbps |
Audio Quality |
16 bits of stereo, CD timbre |
16 bits of stereo, CD timbre |
Output Frequency |
80Hz~16KHz |
80Hz~16KHz |
THD |
≤%1 |
≤%1 |
S/D |
>70dB |
>70dB |
Rated Power |
30W |
60W |
Speaker Unit |
6.5inch woofer x2+1.5inch tweeter x1 |
6.5inch woofer x2+1.5inch tweeter x1 |
Working Temperature |
-20℃~+60℃ |
-20℃~+60℃ |
Working Humidity |
10%~90% |
10%~90% |
Consumption |
≤90W |
≤90W |
Power Supply |
AC 110V-240V/50Hz/60Hz |
AC 110V-240V/50Hz/60Hz |
Protection |
AC FUSE*T1.6A |
AC FUSE*T1.6A |
Power Cord |
3*0.75mm*0.5M |
3*0.75mm*0.5M |
Product Size |
320(H)×190(W)×175(D)mm |
320(H)×190(W)×175(D)mm |
RH-AUDIO develops, manufactures, and markets highly reliable sound products of ip speaker system and commercial speaker system. We provide commercial pa speakers, Public Address Loudspeaker, speaker ip, wifi ip microphone and etc. Want to know more? Please cont act us.
