Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > AM4-I Microcomputer Integrated Protection Relay

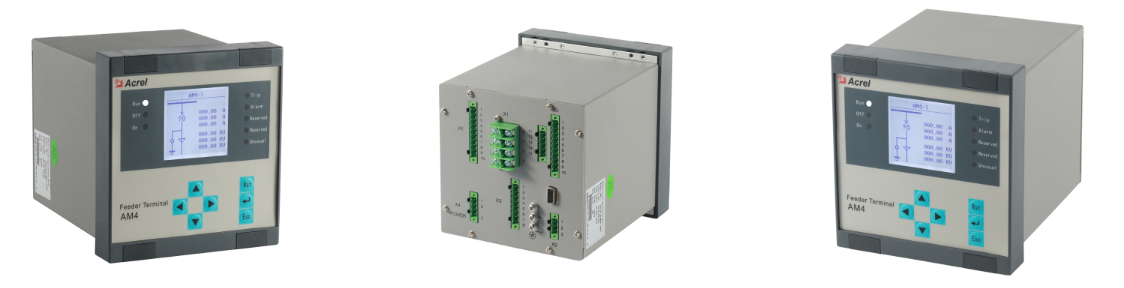

AM4-I Microcomputer Integrated Protection Relay
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AM4-I
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Alarm Output Multi-channel Temperature Thermocouple Data Logger ARTM-P3-300NegotiableMOQ: 1 Piece -
ARTM-8-JC Multi-channel Temperature Thermocouple Data LoggerNegotiableMOQ: 1 Piece
-
ARD2-25 LED Display Motor Protector For Motor PowerNegotiableMOQ: 1 Piece
-
AM2 RS485 Medium Voltage Application Protection RelayNegotiableMOQ: 1 Piece
-
WHD46-33 Industrial Digital Temp Controller With RS485NegotiableMOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
AM4-I
Phase
Three Phase
Operating Temperature
-25~55℃
Display Type
Analog and Digital
Accuracy Class
0.5
● A complete set of protection, related to the application;
● 4 current input, 4 voltage input, 12DI, 5DO;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;
● 1 RS485 serial communication, IEC60870-5-103 and Modbus-RTU;
● 1 RS232 for user update;
● 1 GPS for GPS timing;
● More than 200 sequence of event records, more than 400 system logs, and more than 10 seconds tripping context records;
● Powerful graphic programmable Logic.

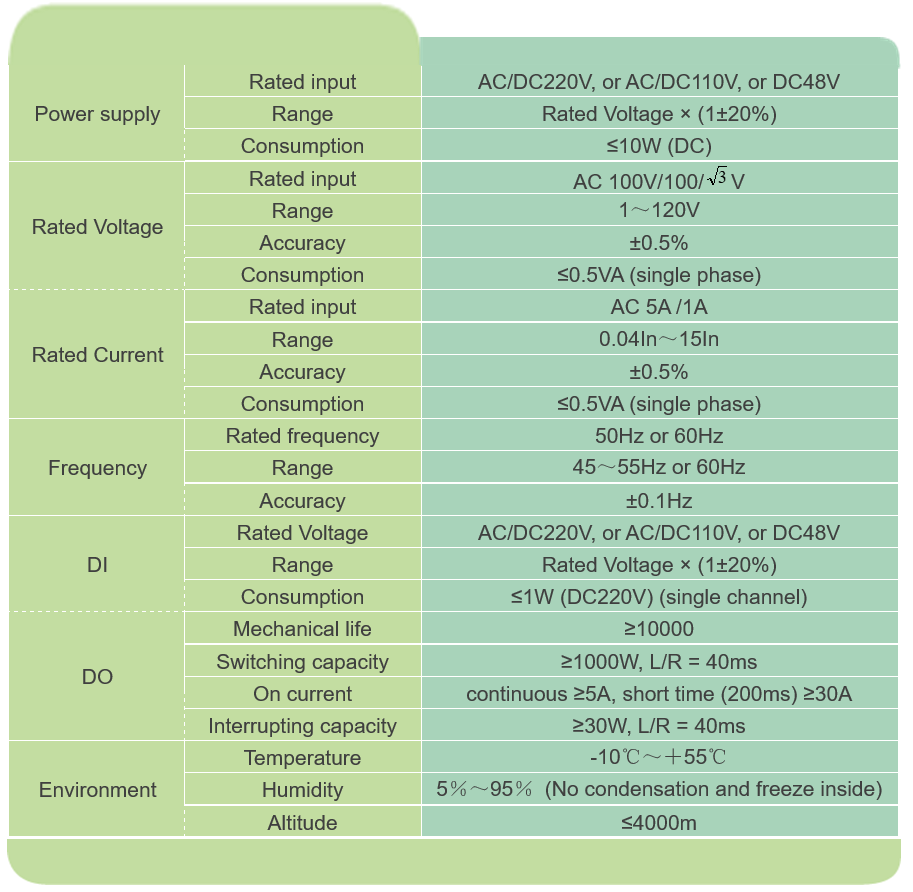

Charactristics
LCD Display
Appearance

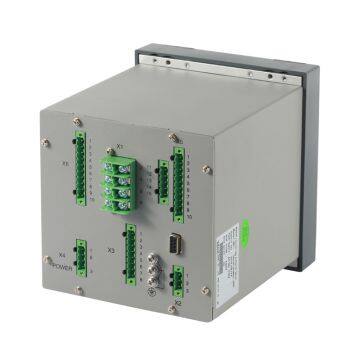

Wiring
Datasheet
