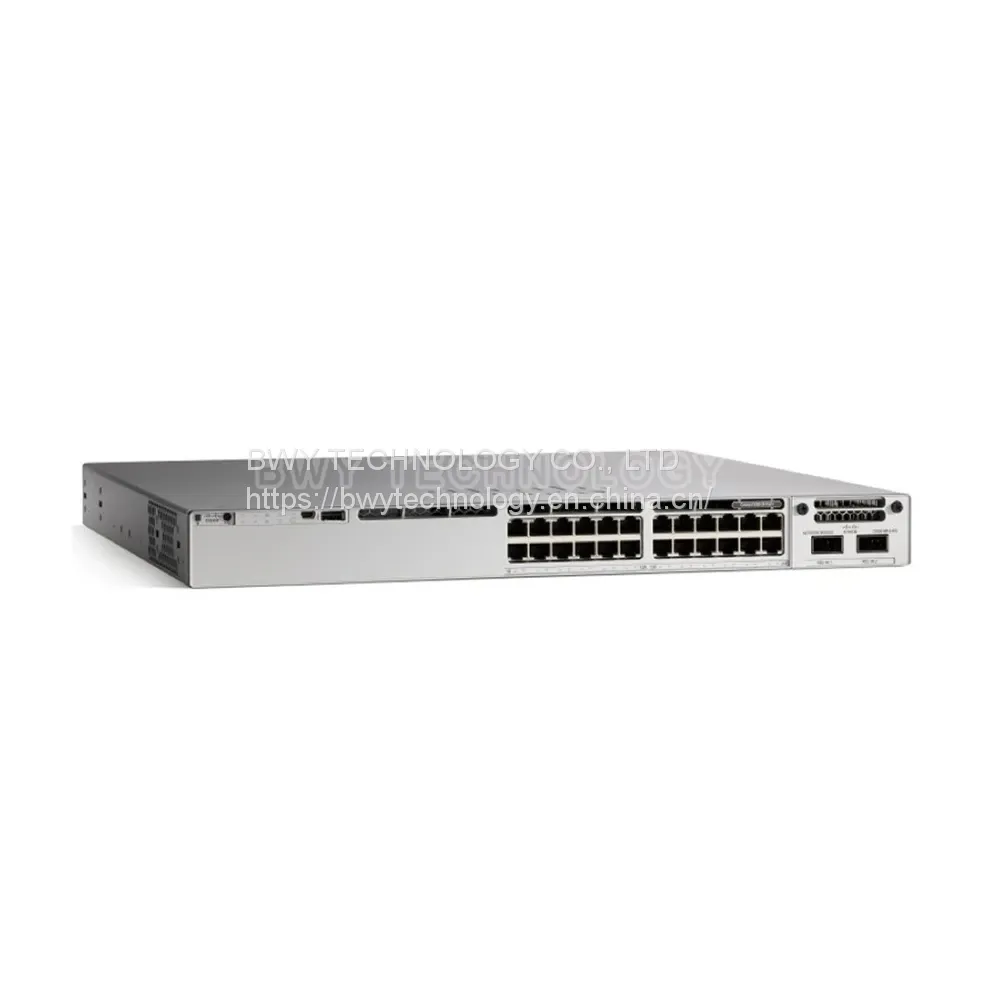

C9200-24T-A Overview
C9200-24T-A is the Catalyst 9200 24-port Data Switch, with Network Advantage software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
- C9200-24T-A Specification
-
C9200-24T-A Specification Downlinks total 10/100/1000 or PoE+ copper ports
24 ports data
Uplink configuration
Modular uplink options
Default primary AC power supply
PWR-C6-125WAC
Fans
FRU redundant
Software
Network Advantage
Chassis Dimensions
1.73 x 17.5 x 13.8 in
4.4 x 44.5 x 35.0 cm
Virtual Networks
4
Stacking bandwidth
160 Gbps
Total number of MAC addresses
32,000
Total number of IPv4 routes (ARP plus learned routes)
14,000 (10,000 direct routes and 4,000 indirect routes)
IPv4 routing entries
4,000
IPv6 routing entries
2,000
Multicast routing scale
1,000
QoS scale entries
1,000
ACL scale entries
1,600
Packet buffer per SKU
6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries
16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM
4 GB
Flash
4 GB
VLAN IDs
4096
Total Switched Virtual Interfaces (SVIs)
1000
Jumbo frames
9198 bytes
Wireless bandwidth per switch
Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model
Switching capacity
128 Gbps
Forwarding rate
190.4 Mpps
Mean time between failures (hours)
587,800
