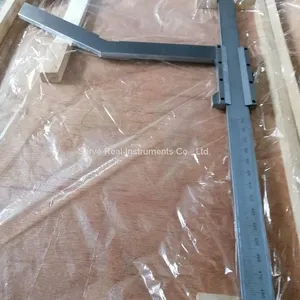

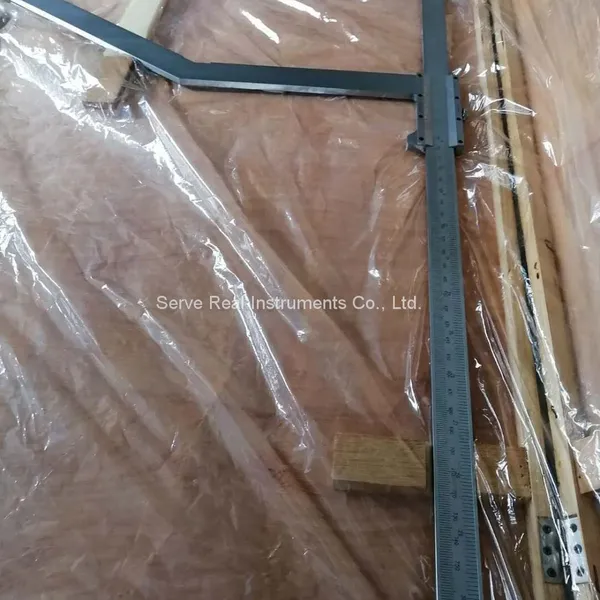

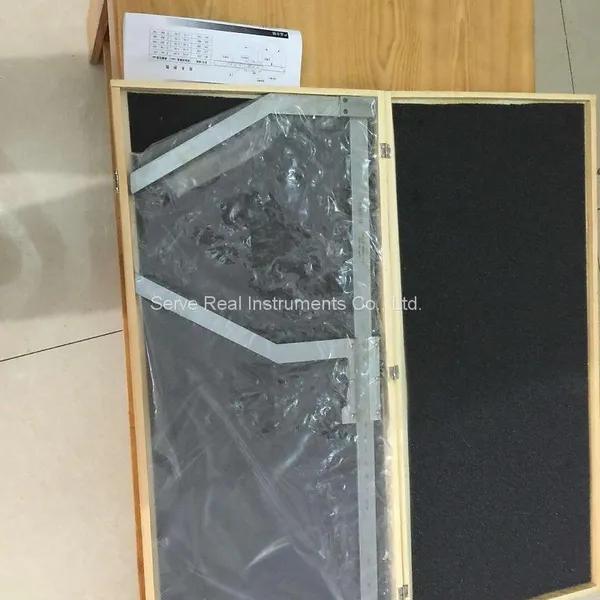

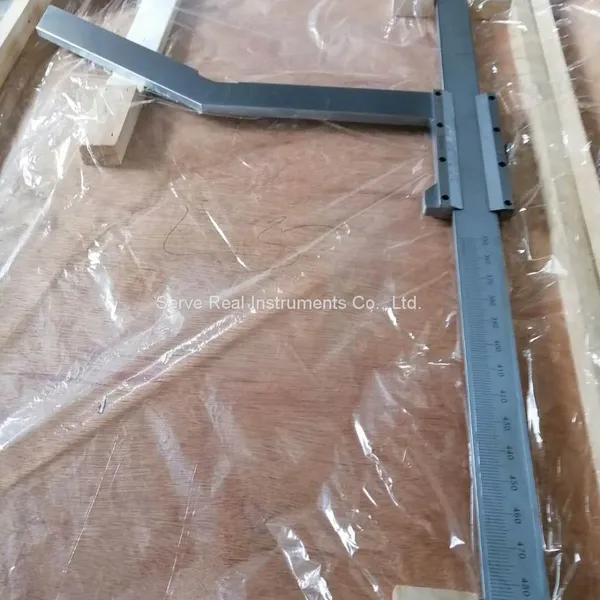

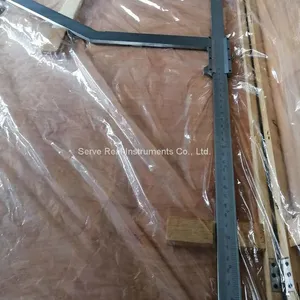

Help CenterOilfield Instrument 3-point Caliper Gauge
Related Products
The three-point caliper is a measuring tool used to measure oilfield parts (drilling bits, oil pipelines, three-wing centralizers, and round parts). It’s designed per mathematical theory.
Made of high quality carbon tool steel T10A, according to GB/T1214-93 standard
Specifications
Measure range: 80-130mm,130-230mm,230-350mm,350-480mm,480-750mm,750-1050mm
Measure deviation: ±0.02mm

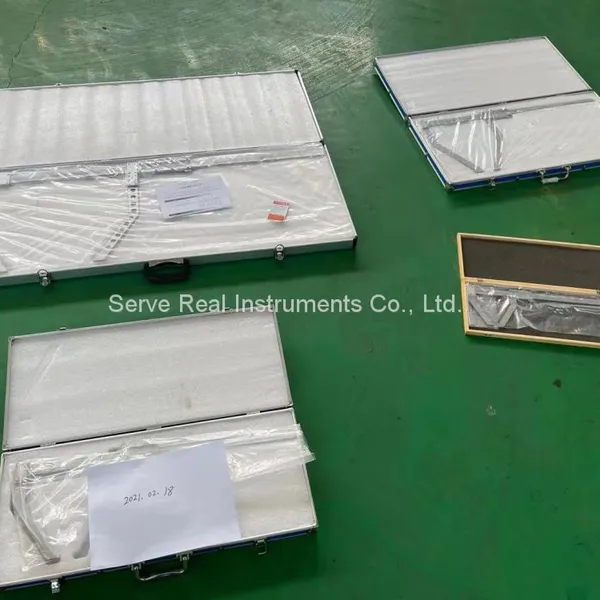

Packing size & Gross weight:
80-130mm: 430*170*25mm, 1kg
130-230mm: 650*300*80mm, 3.5kg
230-350mm: 760*390*80mm, 4.8kg
350-480mm: 1150*480*75mm, 9kg
Operation method
Choose suitable gauge per object size, place the object within the three measure surface, let the complete circle part contact the measure surface, thus can directly read the object size on the gauge.
Using tips
1. Keep the measuring tool clean and pollution-free, prohibit contact with corrosive objects, and apply anti-rust oil after use.
2. It should be handled with care and no strong impact during use.
