Help Center5V Battery Powered Heating Element,Customize 3.7v 5v 7.4v 9v 12v 24v 36v 48v 60v Polyimide Film Heater
Related Products
-
12V Flexible PE Electric Heated Pads PT & PE Film HeaterUS$ 2.3 - 6MOQ: 10 Pieces -
Topright High Performance Electric Film Polyamide HeaterUS$ 1.5 - 6MOQ: 10 Pieces
-
Topright-made Industrial Round Kapton Film Heater Use in Bullet Camera HousingUS$ 5 - 8MOQ: 10 Pieces
-
Topright-made Irregular Polyimide Film Heater Size 75x75mm 12v40wUS$ 5 - 8MOQ: 10 Pieces
-
Topright High Quality Flexible Polyimide Film Heater For Heat InsoleUS$ 5 - 8MOQ: 10 Pieces
| Specifications |
| 1)Kapton heateris a variety of shapes, sizes, and wattages. . |
| 2)Working temperature: -200c - 200c |
| 3) flexible kapton heater |
Kapton Heater Description:
Kapton insulated heaters are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.
Kapton heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.
NO. |
Description |
paremeter |
1. |
Certification |
CE and Rohs |
2. |
Voltage range |
1.5v-400v |
3. |
Power density range |
0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2) |
4. |
Using temperature range |
-60~200°C(-140~392°F) |
5. |
Width range |
10mm~500mm(0.39"~19.68") |
6. |
Length range |
10mm~1800mm(0.39"~70.86") |
7. |
Thickness range |
Standard:0.126~0.266mm(0.005"~0.01") |
8. |
Plug |
Chinese, British, Ametican, European and so on |
9. |
Quality giarantee |
1 year |
10. |
Life |
more than 4 years(normal useful) |
11. |
MOQ |
10pcs |
OEM and ODM is welcom, can print your logo | ||
Specification of Polyimide (kapton) Heaters
- Working voltage: 12 - 400V
- Working temperature: -200°C - 200°C
- Watt density: 1.1-6.5w/cm2
- Mounting: PSA or mechanical
- Max. size: 500x600mm
- Thickness: ≤0.25mm
- Exit: teflon, kapton or silicone insulated leads

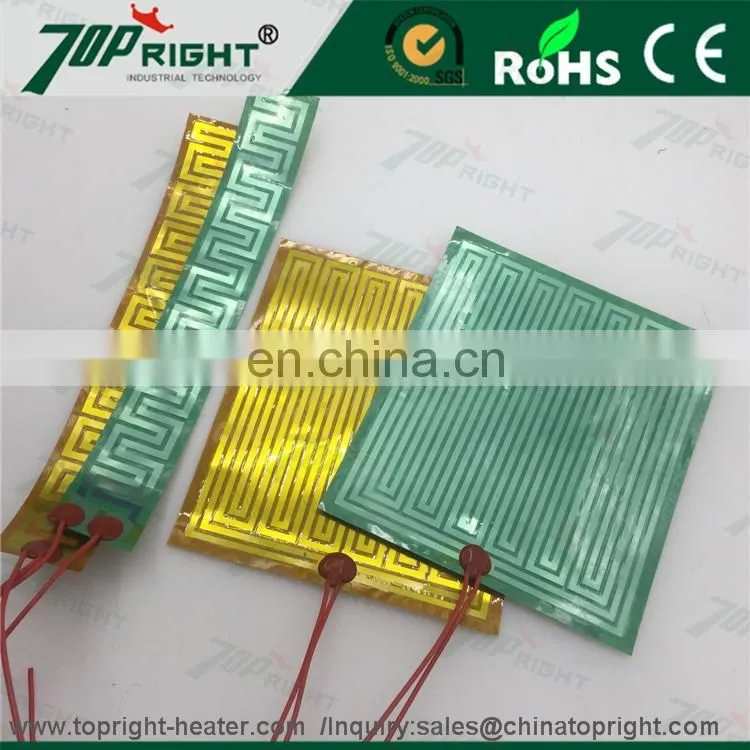

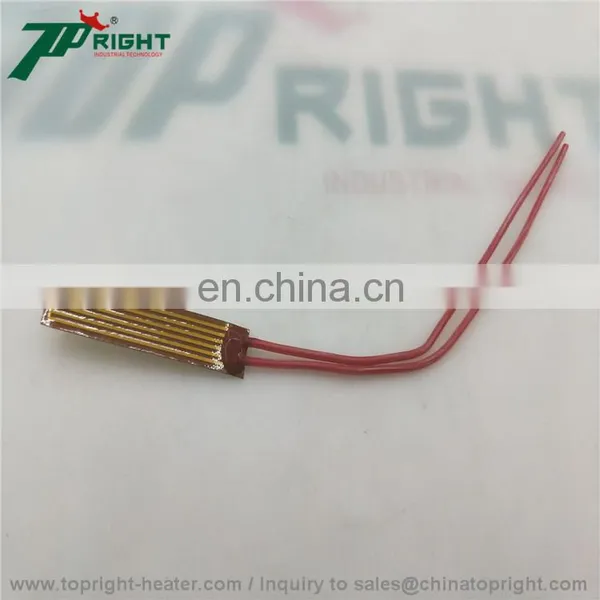

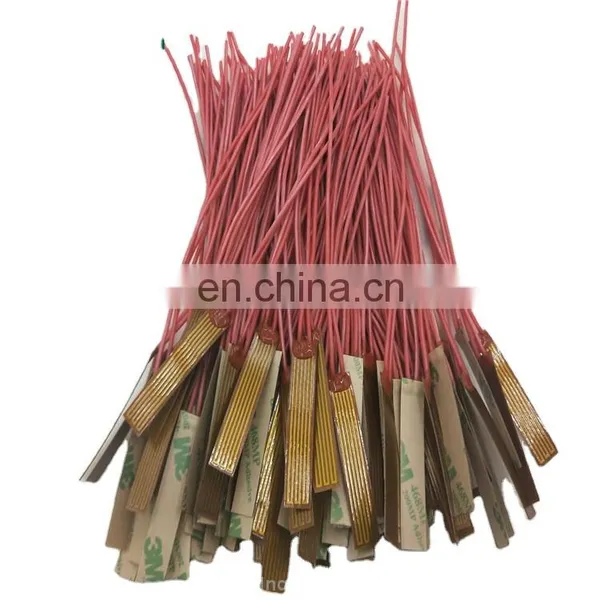

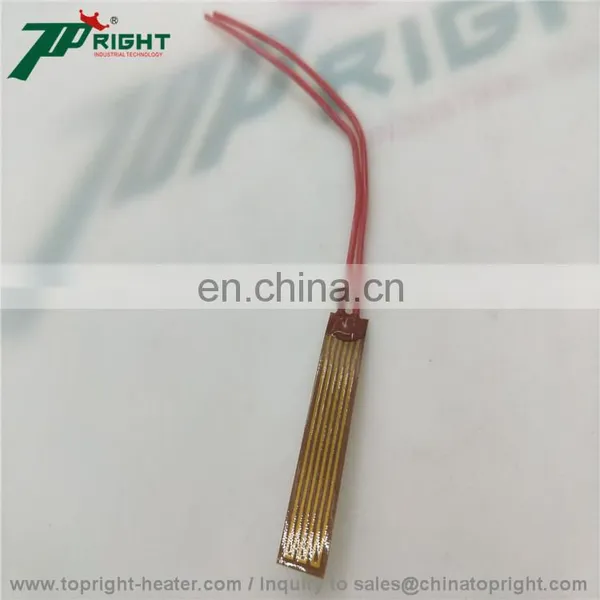

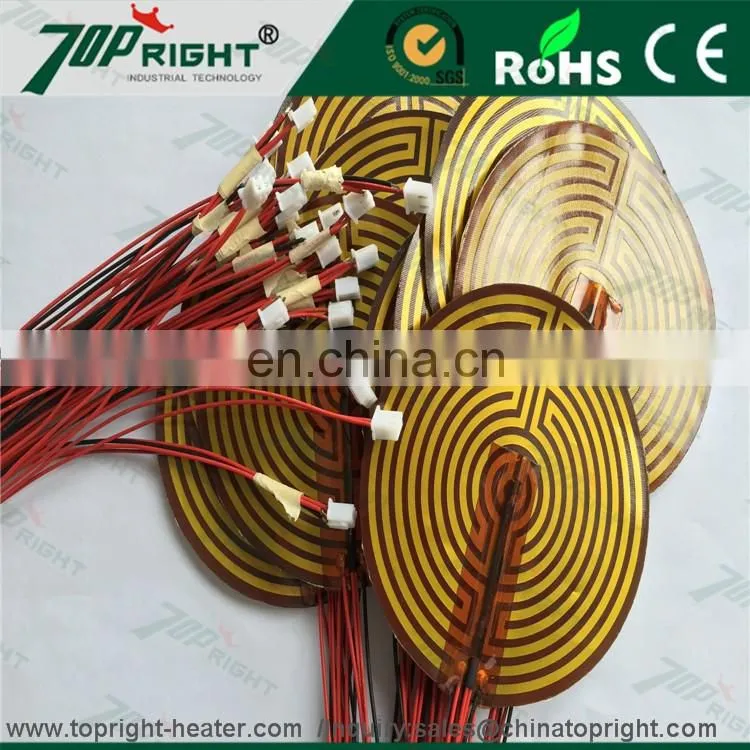

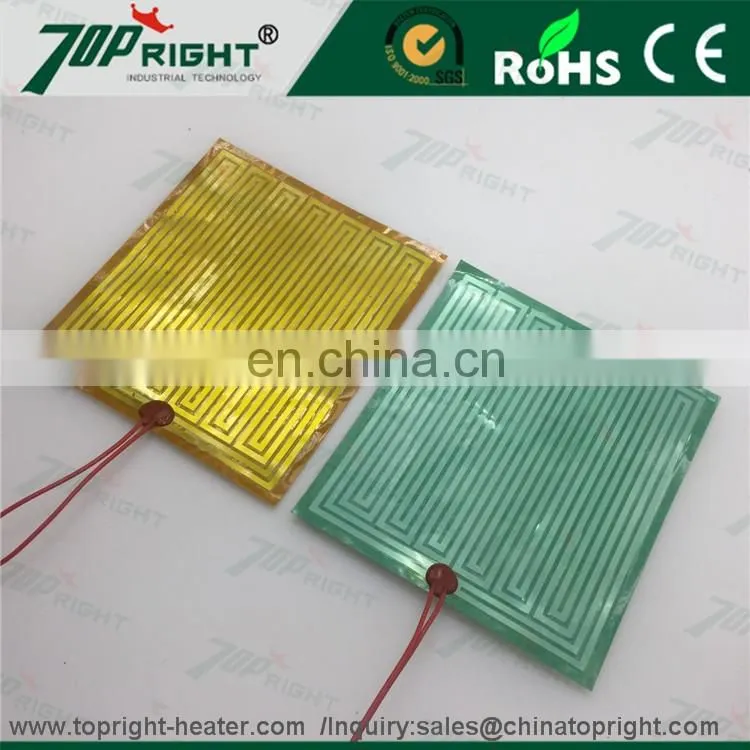

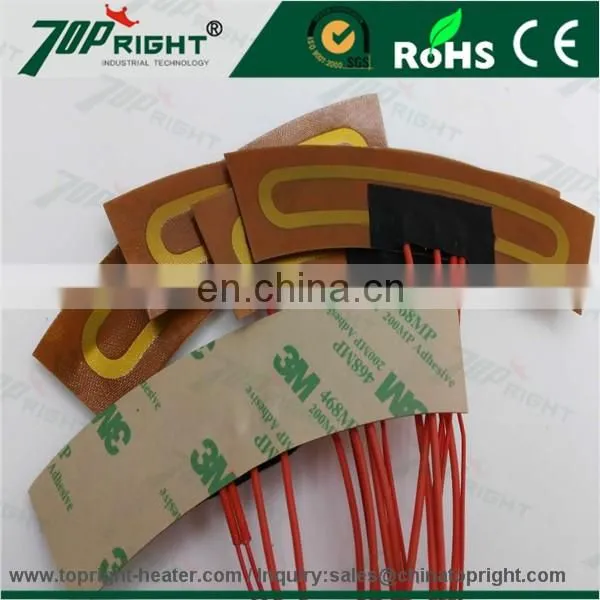

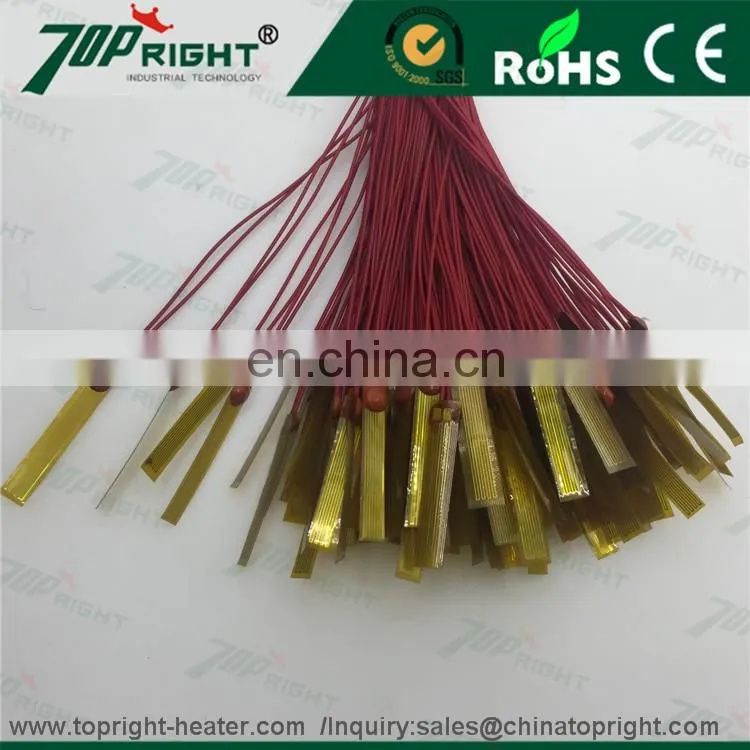

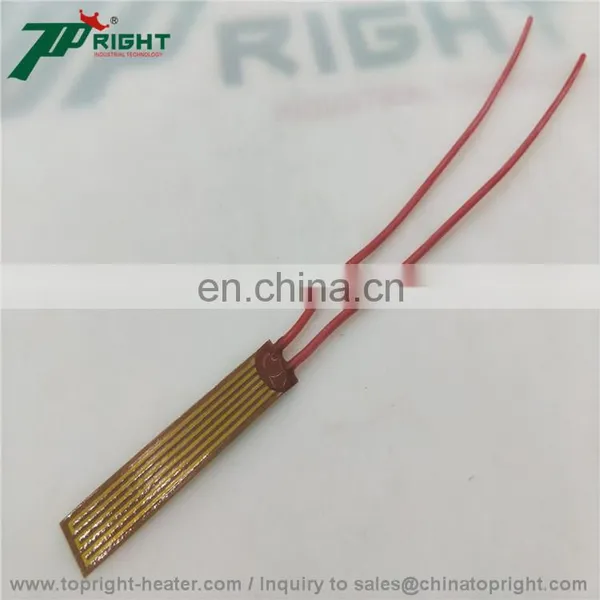

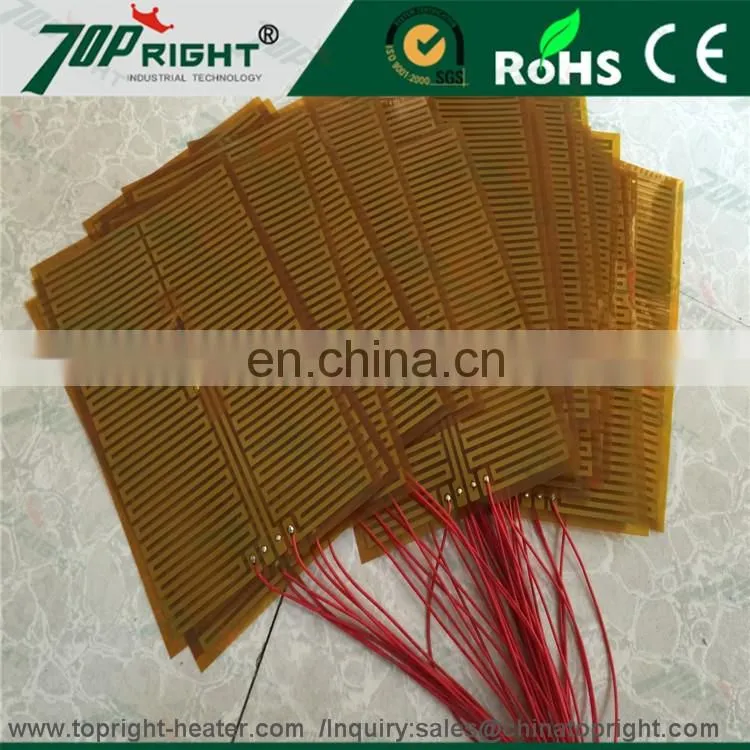

Kapton (polyimide) heaters Photos:

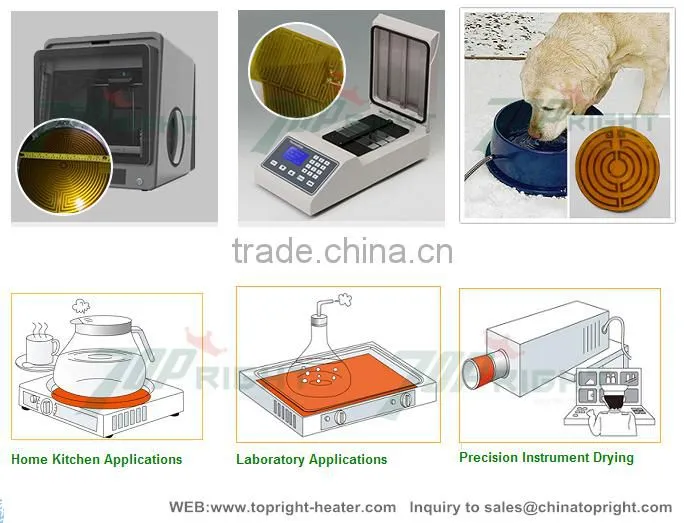

Application of kapton heaters:
- Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
- Stabilize optoelectronic components
- Test or simulate integrated circuits
- Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD’s
- Protect aircraft electronic and mechanical devices in cold weather / area.

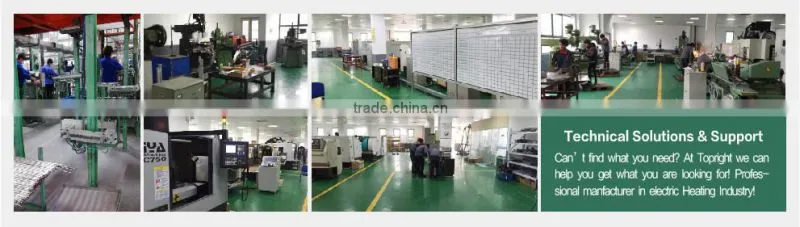

Since 2001, Topright Industrial Technology is engaged in the development, design, production and sales in one of the sales of industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years, constantly pursuit of technological value-added products,promote industry technology progress, Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
Order Guide:
Send Inquiry to This Supplier
