Help Center4mm Diameter 16mm Long 24V 25W Electric Cartridge Heater Cartridge Heating Resistances
Related Products
-
Industrial 4mm Ultimaker 3d Printer Heater CartridgeUS$ 11.5 - 15MOQ: 10 Pieces -
Hot Sale Dia.10x180mm 220v 200w Cartridge Heater as Igniter for Wood Pellet BoilerUS$ 12.5 - 14MOQ: 10 Pieces
-
UL Standard Heater Cartridge, Industrial Electric Cartridge Heater, Heating Cartridge Element Swaged In LeadsUS$ 9 - 11MOQ: 50 Pieces
-
SS 304 Ignition for Pellet Stove 230v Electric Heater Cartridge HeaterUS$ 11.5 - 14MOQ: 50 Pieces
-
100 Watt Electric Cartridge Heater,resistance 220v Cartridge Heating ElementUS$ 6 - 8.5MOQ: 50 Pieces
Cartridge Heater Description:
Cartridge heaters is consist of a cylindrical stainless steel tube and thus provide a high corrosion prevention. The heating wire inside which is wound onto a ceramic core. The number of coils varies depending on the power. and provide a great uniform distribution of heat, which considerably increases the long life of the heater as well as prevents the oxidation of the heater wire even at high temperatures .The solids, liquids, and gases need to be heated by cartridge heater, transmit heat quickly by conduction if the producer of the heat (the cartridge) is in direct contact with the heat sink (any solid, liquid, or gas). Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc they are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.Apart from our broad standard range we also develop and manufacture cartridge heaters according to your special demands.
Cartridge Heater Technical Detail:
- Tube diameter: Φ3mm-Φ30mm
- Tube Material:SS304;SS316,SS321,NICOLOY800 etc.
- Insulation Material:High-purity Mgo
- Reisistance wire element:Ni-Cr or FeCr
- Wattage density: high/middle/low(5-25w/cm2)
- Lead Connection Option: Crimped or Swaged leads
- Lead wire type: 10" Standard(Teflon/silicone high temperature frberglass)
Cartridge Heater Applications:
- Liquid Immersion
- Plastic Molds
- Dies
- Labeling
- Medical Equipment
- Platens
- Packaging Equipment
- Hot Stamping
- Sealing
- Injection Molding

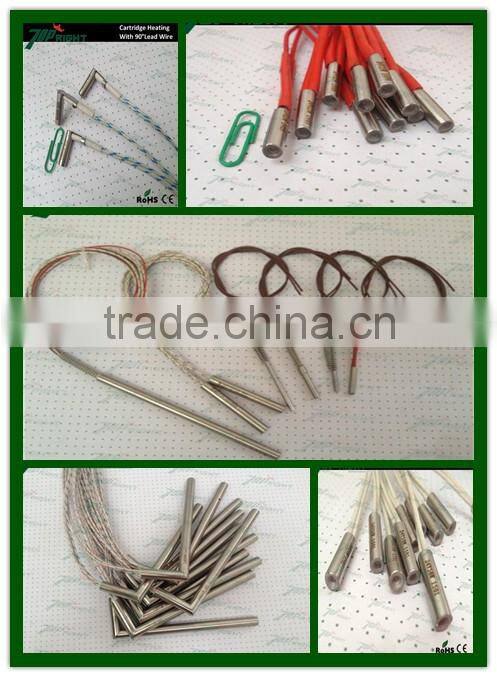

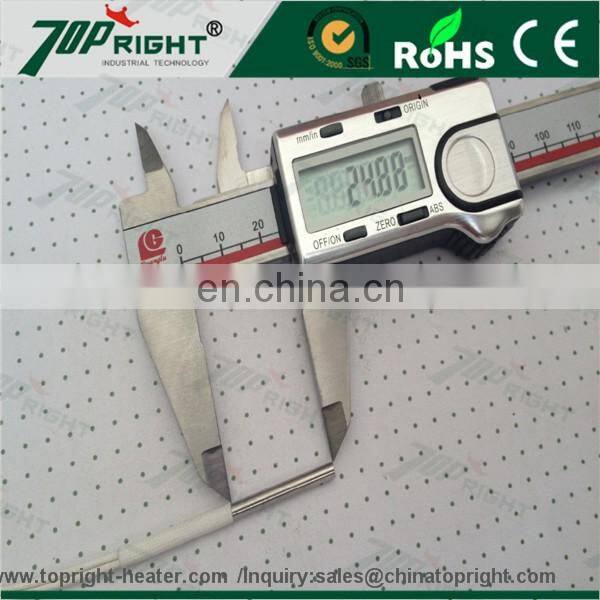

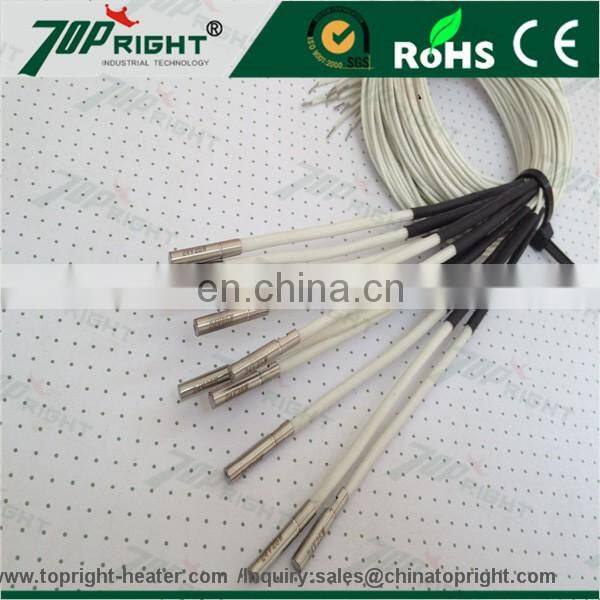

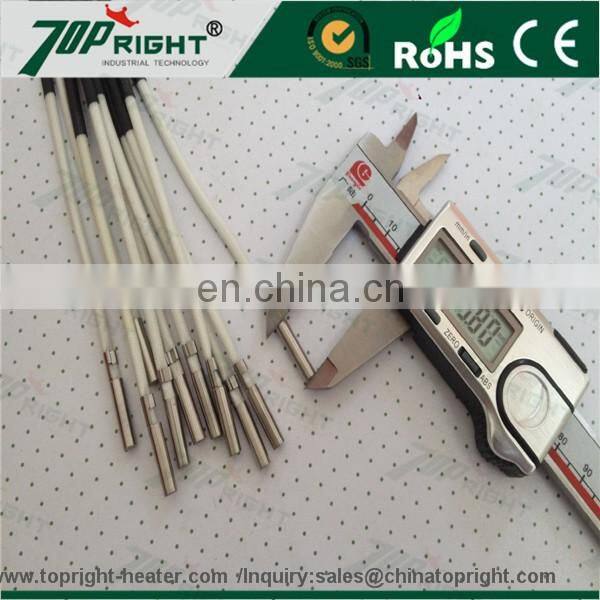

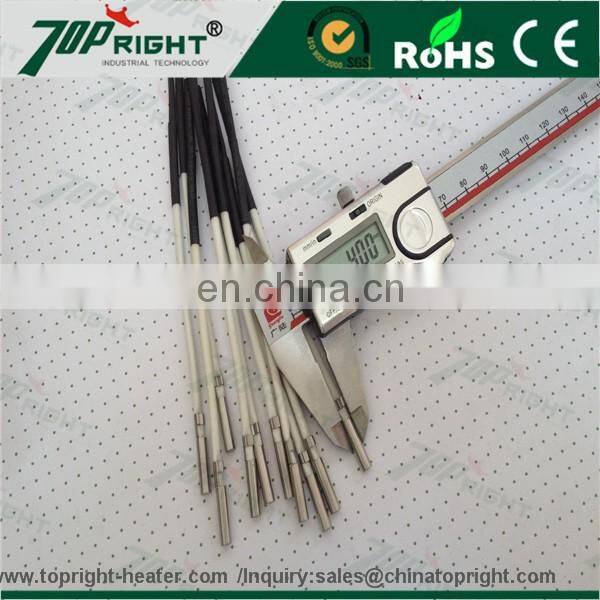

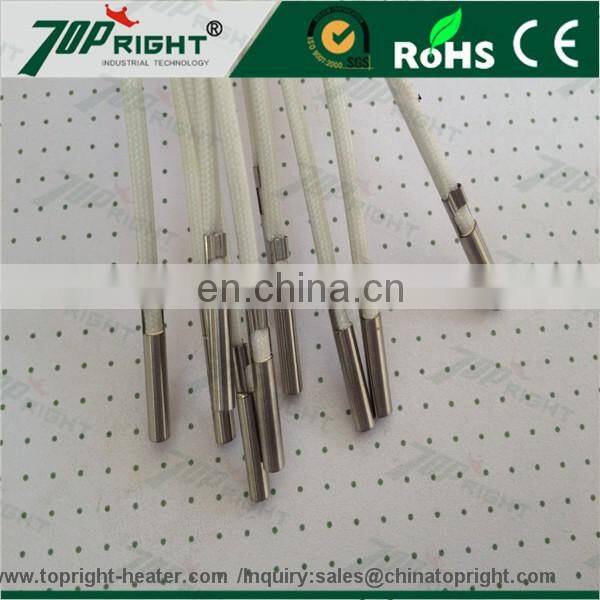

Cartridge Heaters Photos:
Dia. |
4*15.8mm |
Voltage |
24v |
Wattage |
25w |
Swaged lead wire length |
1250mm |
Specification:
| Product name | cartridge heater |
| Insulation | High-purity Mgo |
| Heating resistance | OCr20Ni80 wire |
| Tube material | SS304;SS316,SS321,NICOLOY800 |
| Min. dia. | 2.8mm |
| Lead option | Swaged or Crimped |
| Voltage | 12-230v |
| Lead wire | 5-25wcm2 |
| Thermocouple | with or without |
Note:
1.We support OEM order,and print Brand or Logo on surface.
2.We can custom cartridge heaters specially(According to your size,voltage,power etc.)
More Fashion Heater Cartridge In Topright Industrial:
Order Guide:
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3. Topright sales send the Proforma Invoice with Topright seal. |
4. Customer make the payment for deposit and send us Bank receipt. |
5.Initial Production Stage-Inform the clients that we have got the payment,And will make the products according to your request,. After getting the sample or drawing approval, we inform that we will arrange the production & inform the estimated time. |
6. If possible,middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection . |
8. Clients make payment for balance and Topright Ship the goods .Also can accept payment term-Balance against B/L Copy Or L/C payment Term which we discussed. Inform the tracking number and check the status for clients. |
