Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating

Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating thumbnail-1
Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating thumbnail-2
Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating thumbnail-3
Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating thumbnail-4
Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating thumbnail-5
Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating thumbnail-6
Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating photo-1

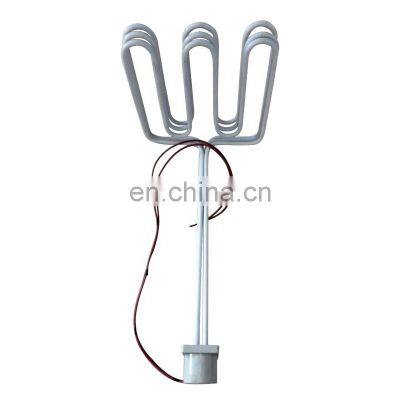

Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating photo-2

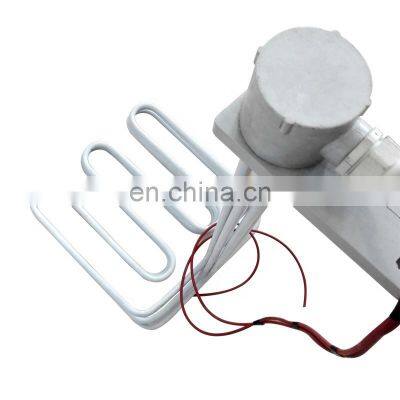

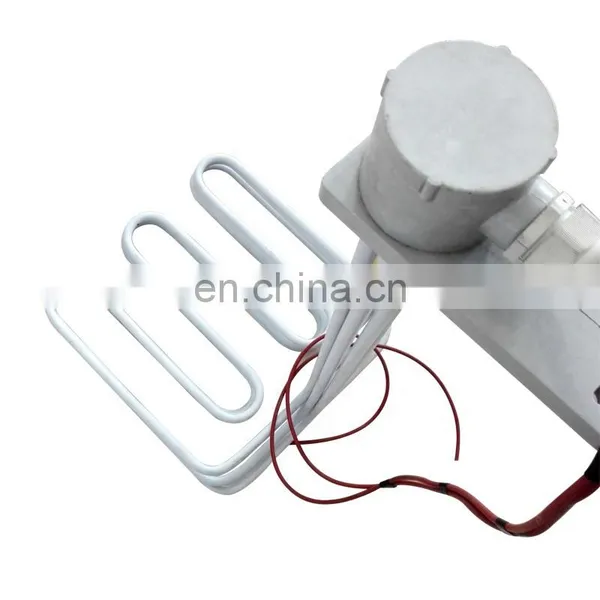

Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating photo-3

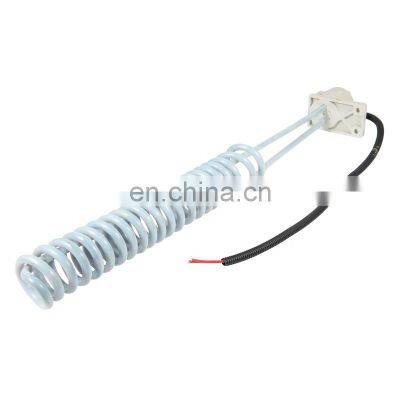

Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating photo-4

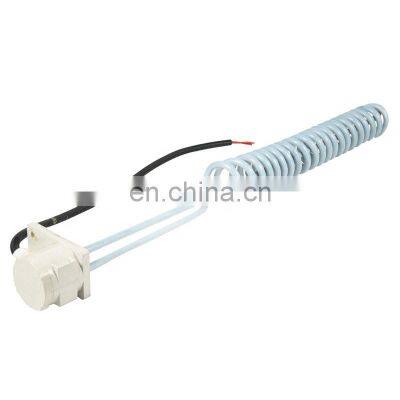

Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating photo-5

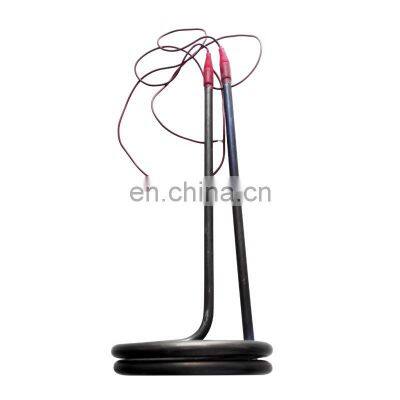

Stainless Steel L-Shaped and Bottom Immersion Heaters With PTFE Cover Anti Corrosion for Chemical Liquid Heating photo-6
US$ 38 - 45 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
YUHENG
Place of Origin:
Jiangsu, China
Type:
Immersion Heater
Contact Supplier Request Quote Chat Now
Yancheng Yuheng Electric Heating Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YUHENG
Place of Origin Jiangsu, China
Type Immersion Heater
Certification CE ROHS
Warranty 1 Year
Weight Final Dimension
Dimension(L*W*H) Cutomer's Request
Condition New
Voltage 110-600V Customized
Power Source Electric
Related Products

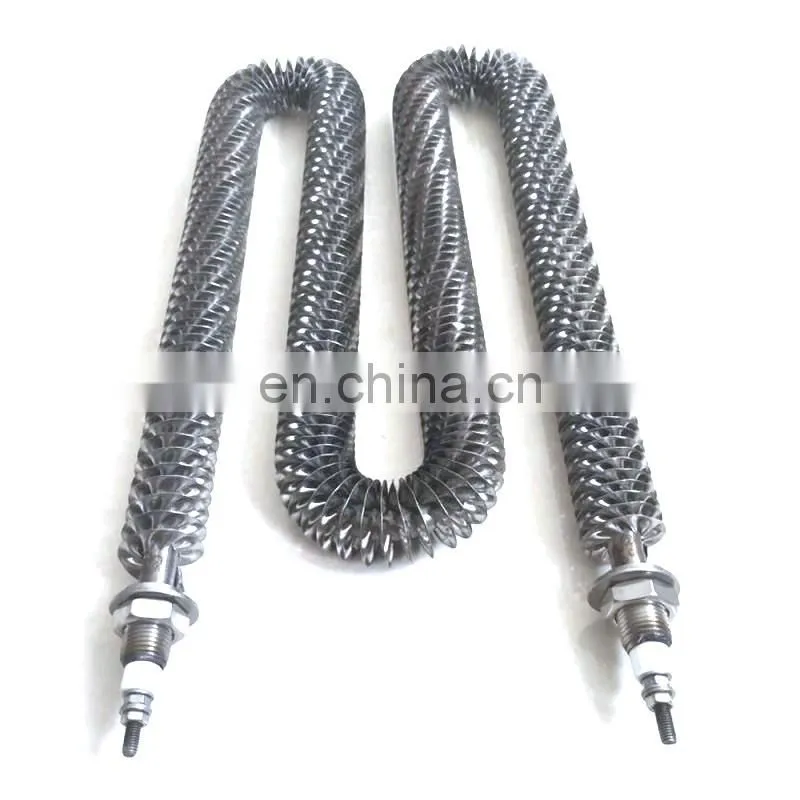

           Finned Tubular Heater

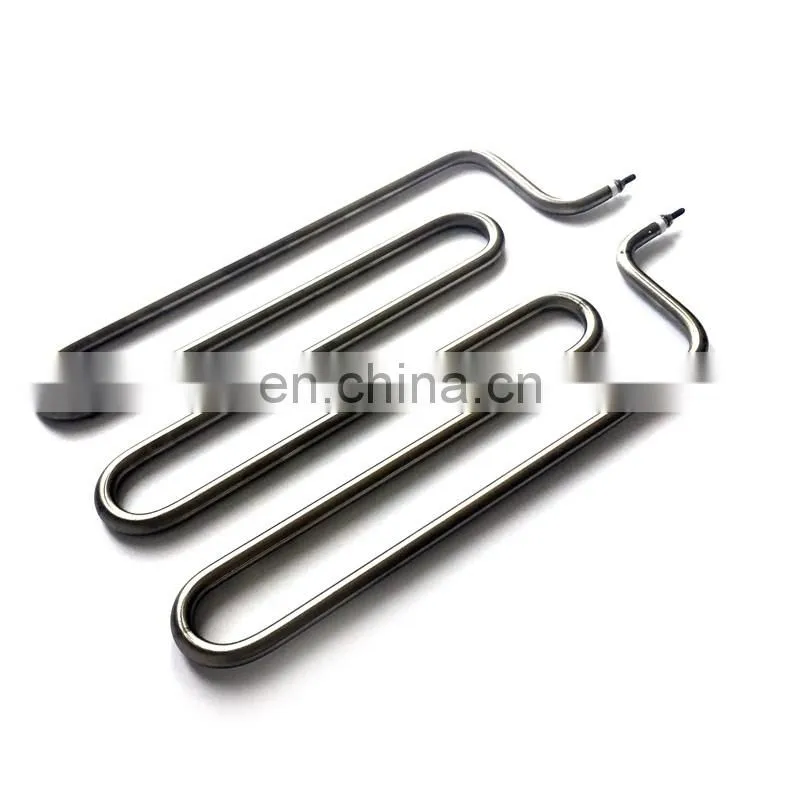

        Formed Tubular Heater

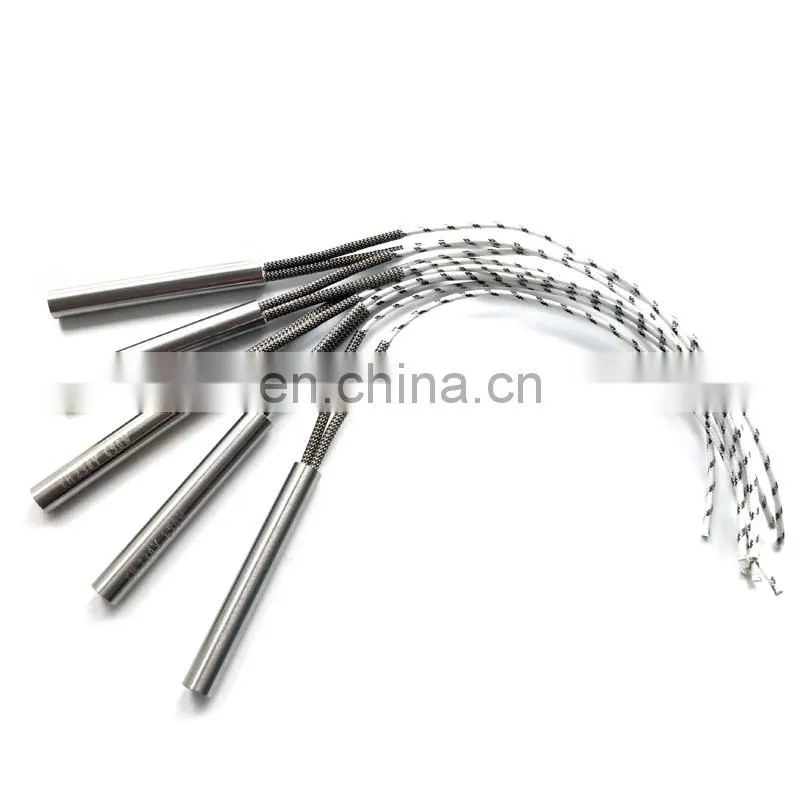

                Cartridge Heater

Manufacturer Advantage

1.Low MOQ: 1-5 pcs MOQ based on heater type and sizes
2.OEM Accepted : Strong capacity in develop and production under customer drawings
3.Good Service : Instant response, great patience and full consideration
4.Good Quality : With 6S quality control system
5.Fast & Cheap Delivery: We enjoy great discount from shipping forwarders (2 decades cooperation)

Product Description

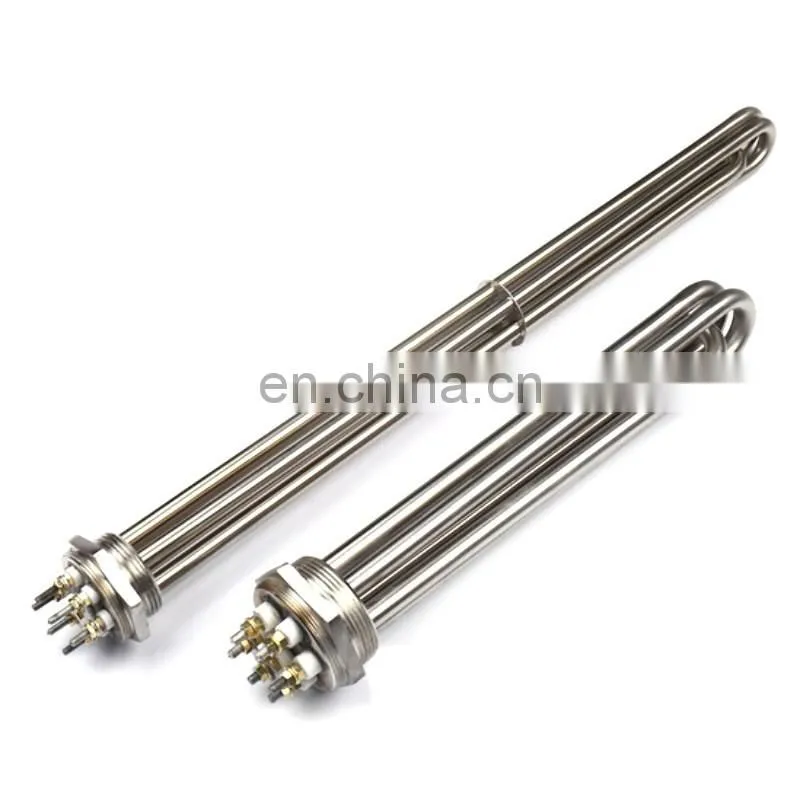

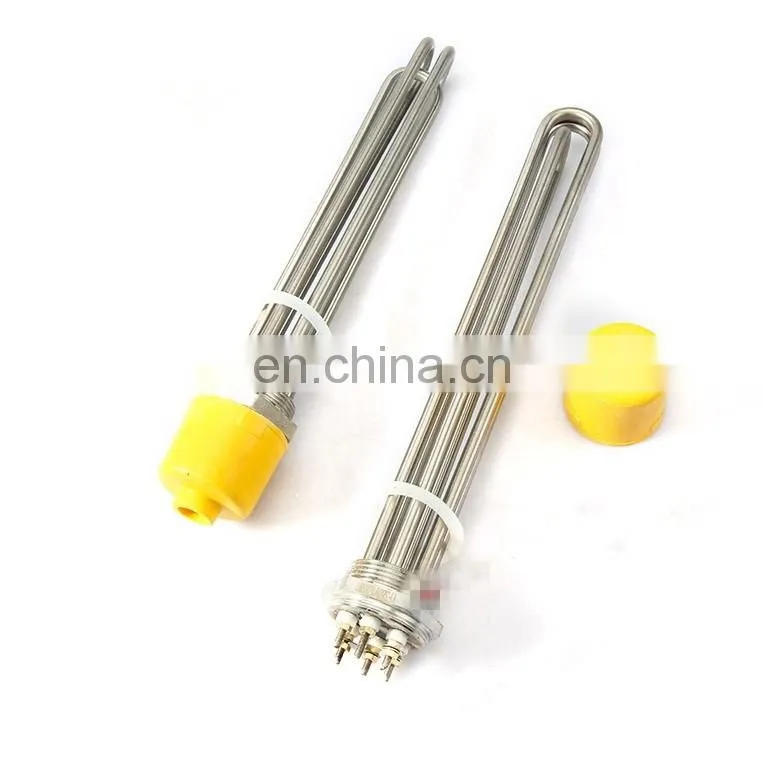

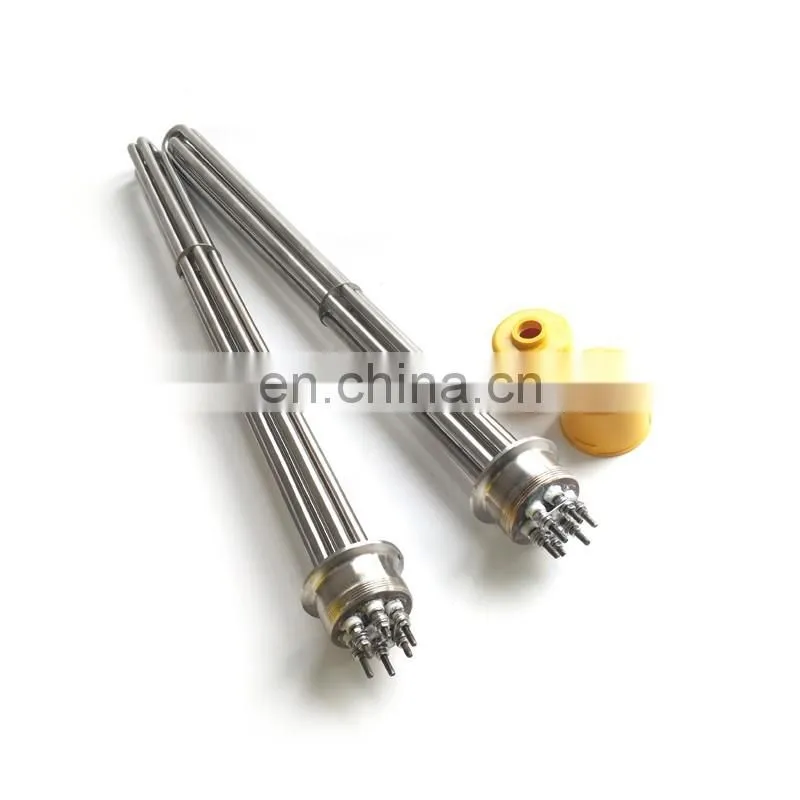

  Screw up Immersion Heater

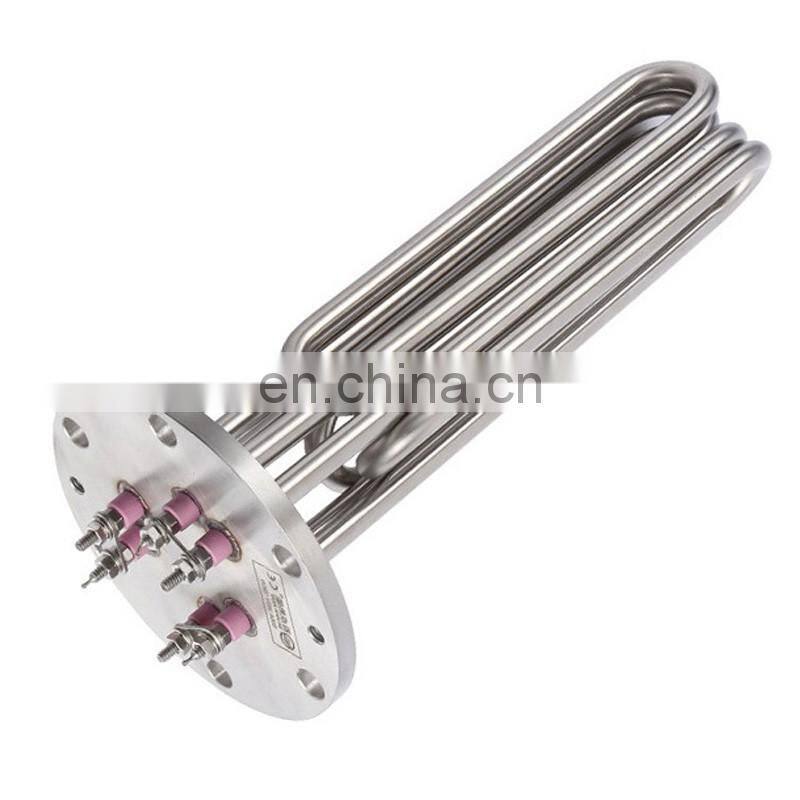

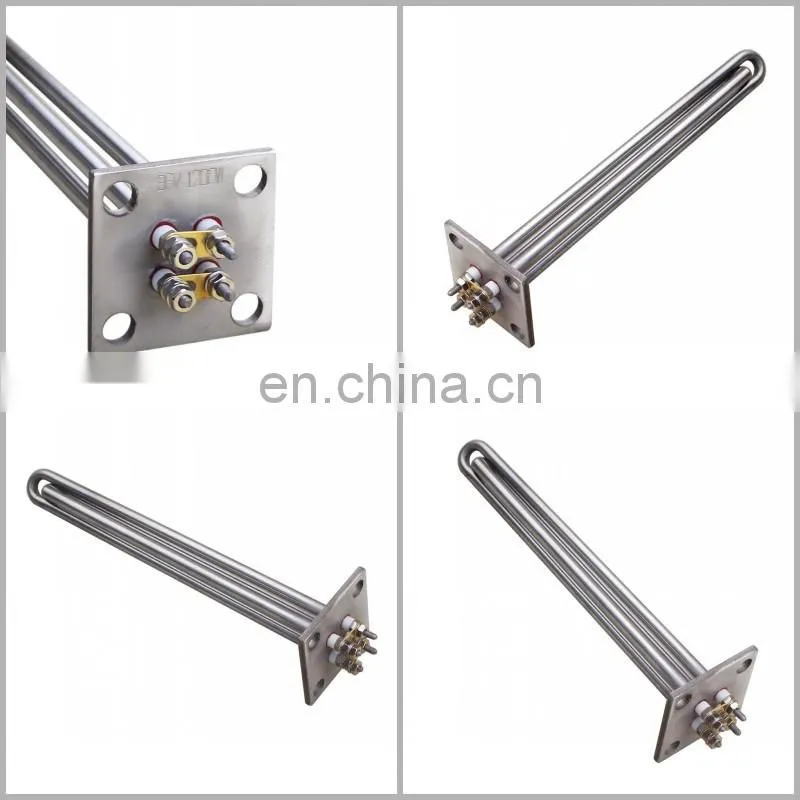

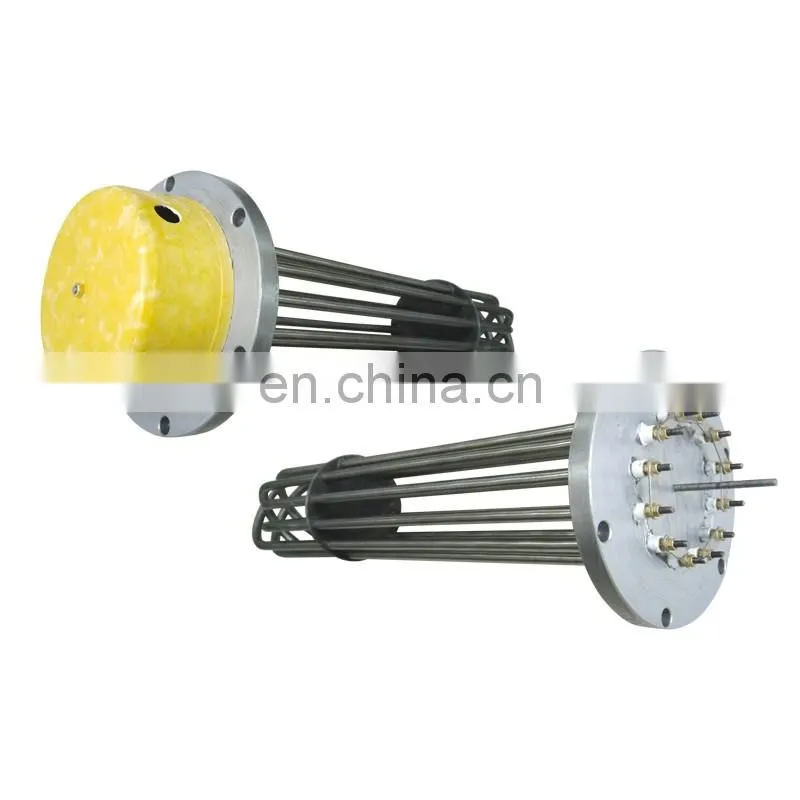

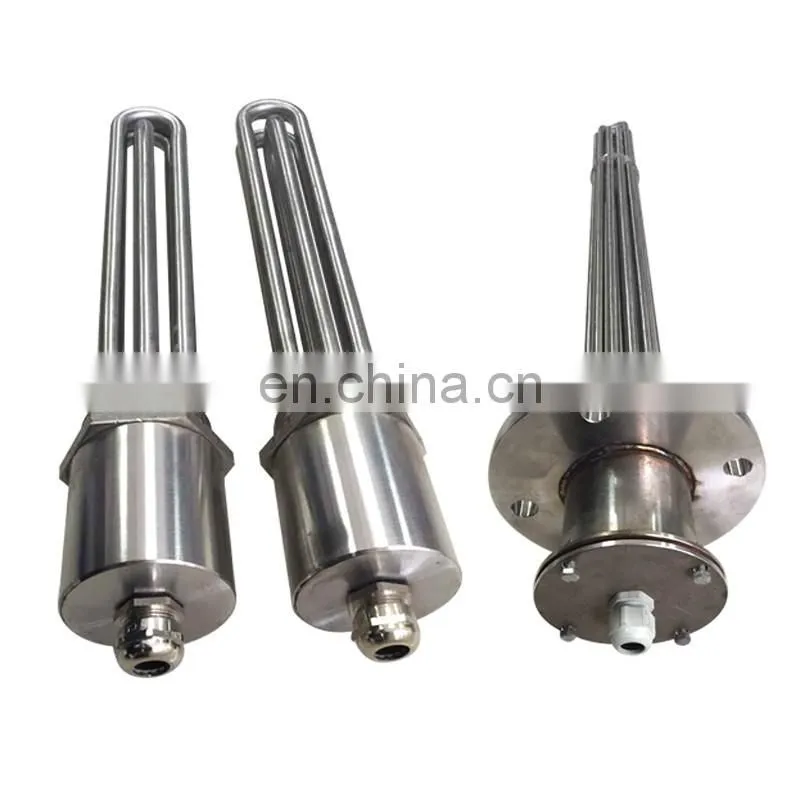

  Flat Flange Immersion Heater

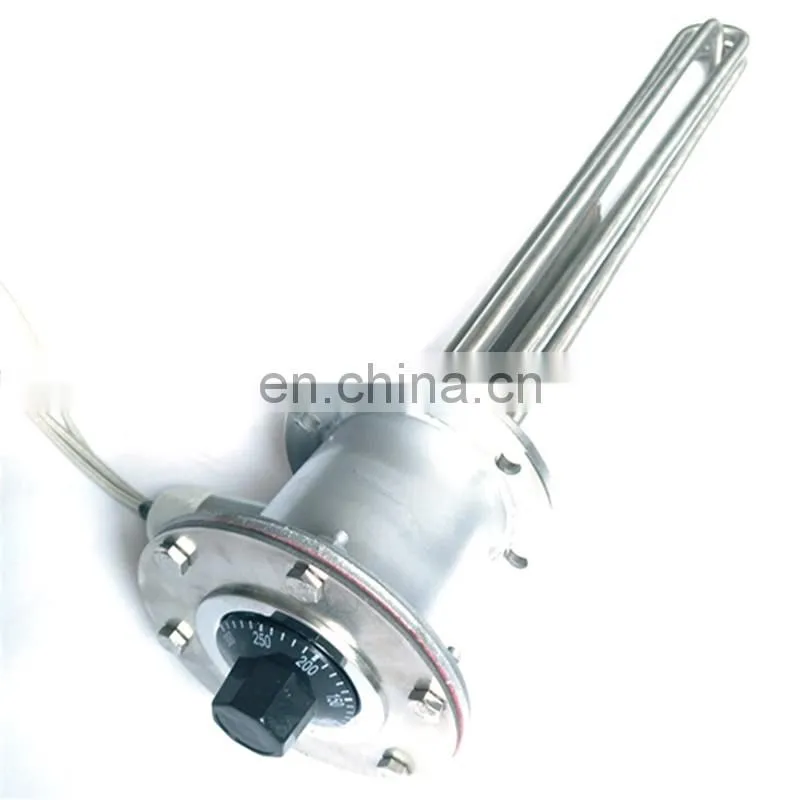

  Thermostated Immersion Heater

Immersion Tubular Heaters
Electrical flange immersion heaters are designed for heating or temperature maintening of liquids, gas or mixture in static or circulation conditions.
The design is based on customer process conditions: fluid to heat (type and properties), in/out temperature, pressure, heat exchange conditions (stagnant or flowing), and environment conditions (ATEX or not, onshore or offshore, etc.).

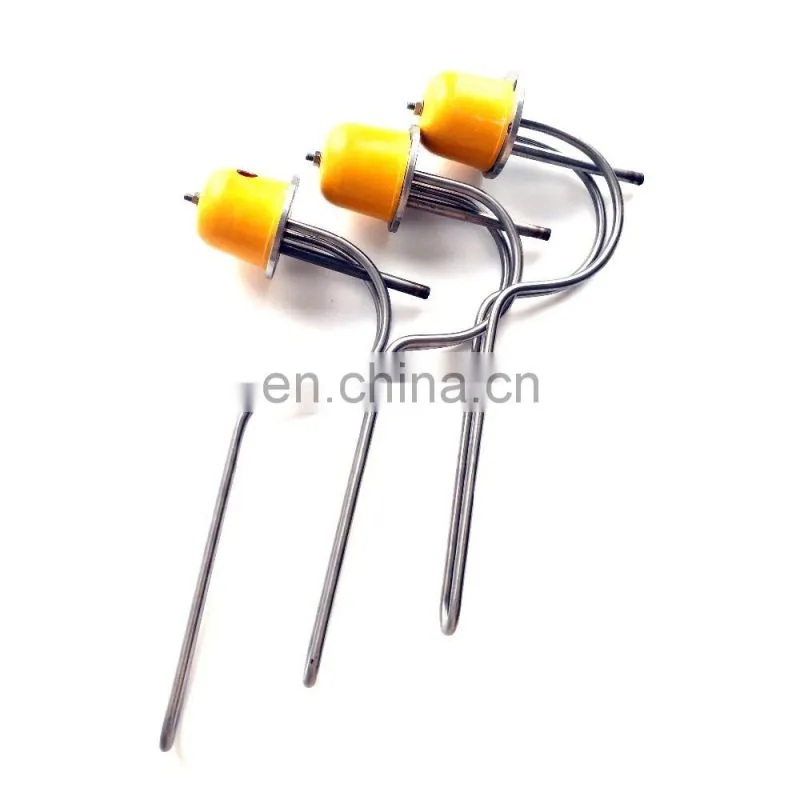

Flange immersion heaters can be straight or L-shaped.

>>Technical Data

Flange size
DN 50 to DN 800
Screw plug size
1"- 3"
Tube Diameter
8-16 mm
Immersion Length
150mm- 1500mm
Heating Element
3 elements, 4 elements, 6 elements, 10 elements etc under customer request
Wattage density
2-8W/cm2
Voltage
UP to 600V
Sheath Material
Stainless Steel 304 316L 310S Copper Incoloy 800 840
Built in thermostat well
Built-in thermostat wells can be installed upon request. When ordering, please provide length BUILT-IN THERMOSTAT WELL and internal diameter

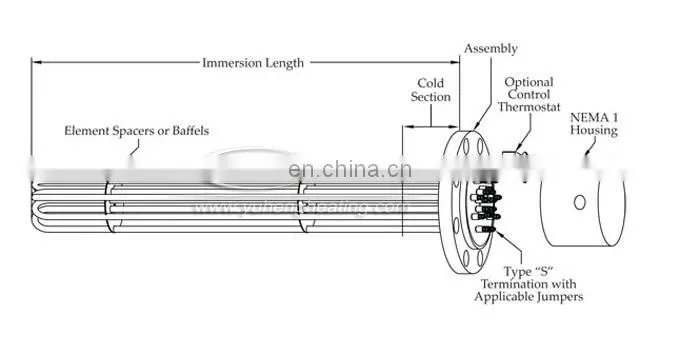

>>Reference  Drawing

>>How to choose the right Material for immersion  heater?

Application
Sheath Material
Typical Watt Density(w/cm²)
Screw Plug/Flange Material
Water, Freeze protection, Hotwater storage, Boilerandwaterheaters, Coolingtowers, Solution not corrosive to copper, Food equipment
Stainless Steel304 316L or Copper
8w/cm2
Stainless Steel or Brass
Oil, Heavy and non-circulated oils, Solution water, Corrosive solutions, Steam super heating
Stainless Steel 316L 310s or Incoloy
2.5w/cm2
Stainless Steel
Light oils , Inforced oil circulation loops
Stainless Steel304 316L
4.5w/cm2
Stainless Steel
Mildly corrosive solutions
Stainless Steel 316L 310s or Incoloy
8w/cm2
Stainless Steel
Fluid heat transfer media, Tar, High to low viscosity petroleum oils, Asphalt, Wax, Paraffin, Degreasing solvents, Alcohol, Molten salt, Solutions not corrosive to steel
Stainless Steel304 316L
2.5w/cm2
Stainless Steel
Process water, Soap and detergent solutions, Soluble cutting oils, Demineralized or deionized water
Stainless Steel304 316L
4.5w/cm2
Stainless Steel
PLEASE CONSULT CORROSION GUIDE RECOMMENDATIONS.

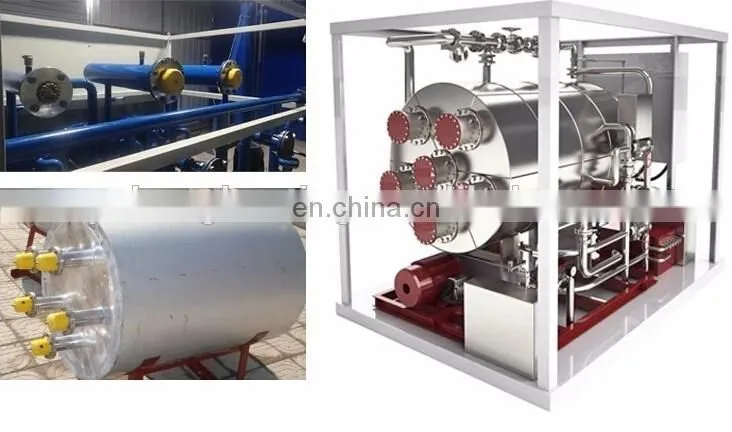

>>Product Application

Fuel and Oil Heaters                                                          Hot Water Storage Tanks
Warming Equipment                                                          Preheating All Grades of Oil
Food Processing Equipment                                            Cleaning and Rinsing Tanks
Heat Transfer Systems                                                      Process Air Equipment

Boiler Equipment                                                                 Freeze Protection of Any Fluid

Product Show

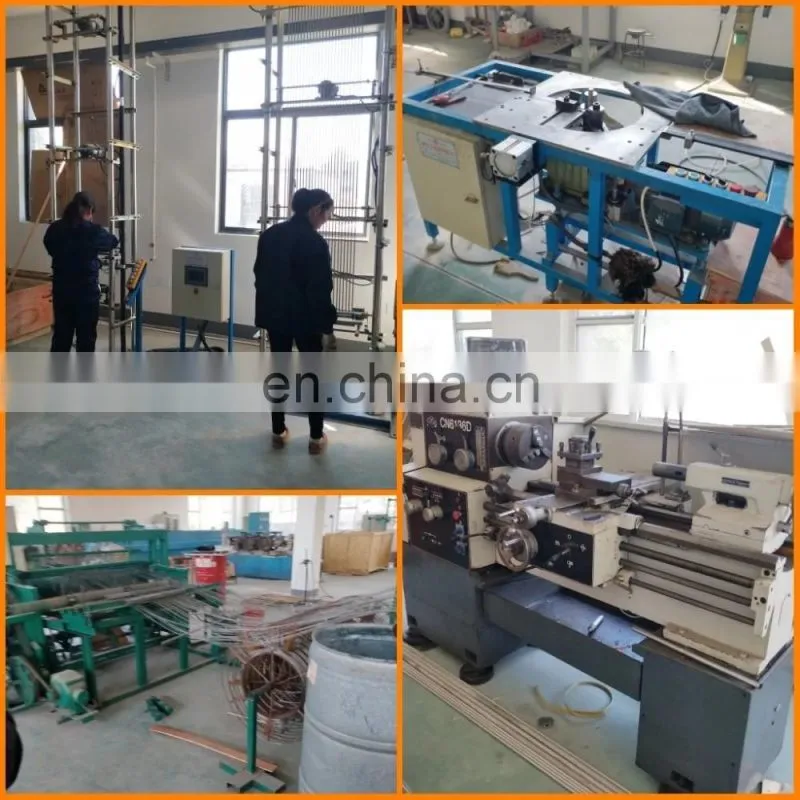

Factory
