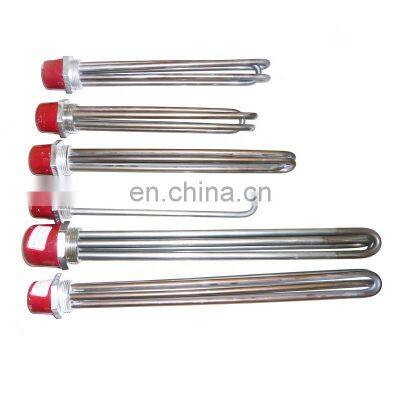

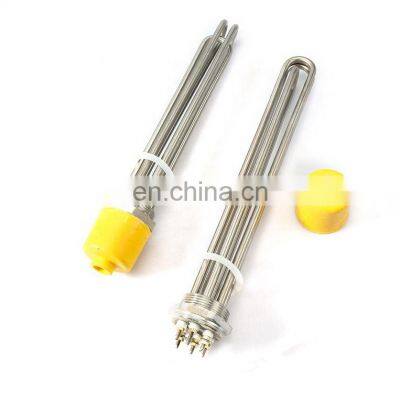

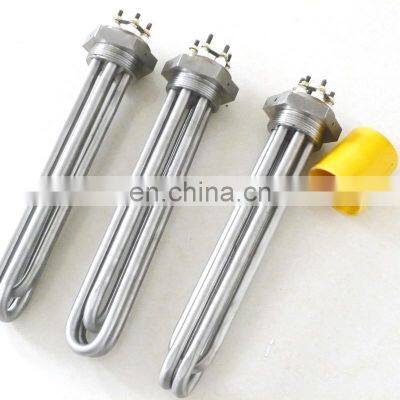

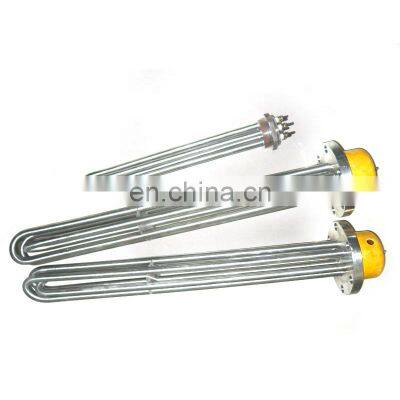

110V 1kw 2kw 3kw 5kw 6kw 9kw 12kw Industrial Electric Screw Plug Flange Immersion Tubular Heater Element With Thermostat
US$ 10 - 80
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yuheng
Place of Origin:
Jiangsu, China
Type:
Immersion Heater
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai for screw plug flange immersion tubular heater
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
250x1740mm Flexible Silicone Rubber Pad Heater Oil Drum Heater With Dial Thermostat ControllerUS$ 2.3 - 52.6MOQ: 1 Piece -
220v 650w Industrial Electric Mica Barrel Infrared Energy Saving Band Heater for ExtruderUS$ 3 - 20MOQ: 1 Piece
-
Industrial Custom Flexible Silicone Rubber Heater Heating Pad 12v Heating ElementUS$ 2.3 - 18.6MOQ: 1 Piece
-
230V 400W Flexible Silicone Heater CableUS$ 4 - 200MOQ: 1 Piece
-
120v 240v 480v 220v Heat Water Flange Immersion Heater ElementUS$ 18 - 25MOQ: 2 Pieces
Brand Name
Yuheng
Place of Origin
Jiangsu, China
Type
Immersion Heater
Certification
CE ROHS
Warranty
1 Year
Weight
Final Dimension
Dimension(L*W*H)
Cutomer's Request
Condition
New
Voltage
12V- 600V
Power(W)
1kw to 3kw/M
Power Source
Electric
Related Products

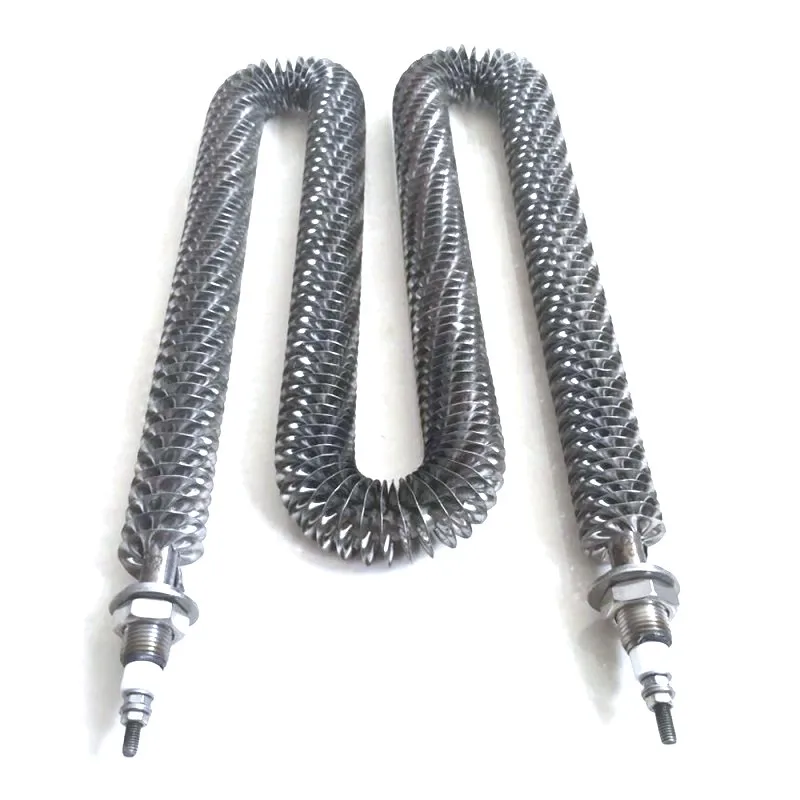

Finned Tubular Heater

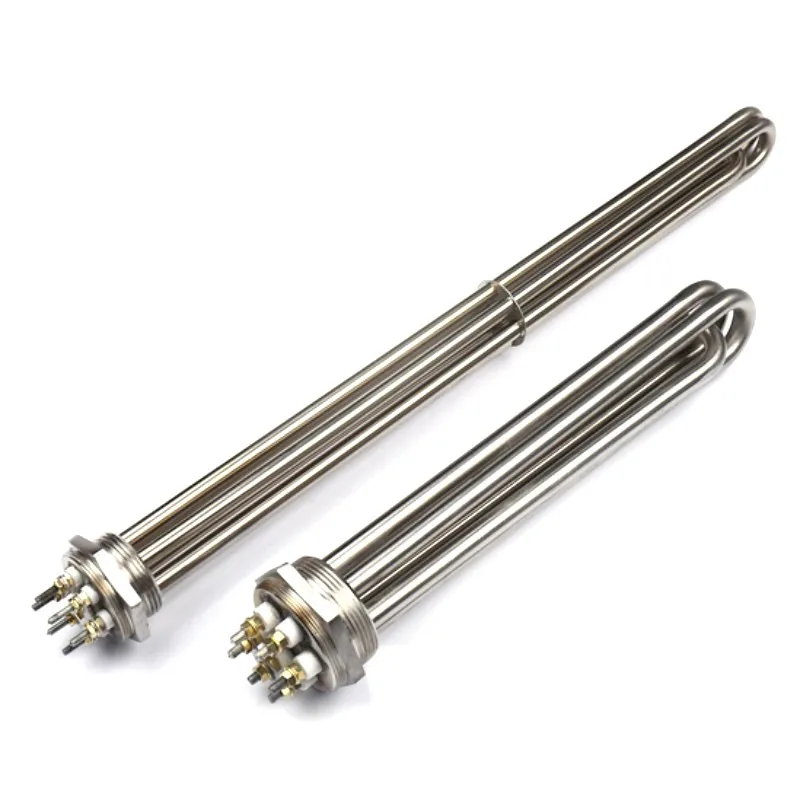

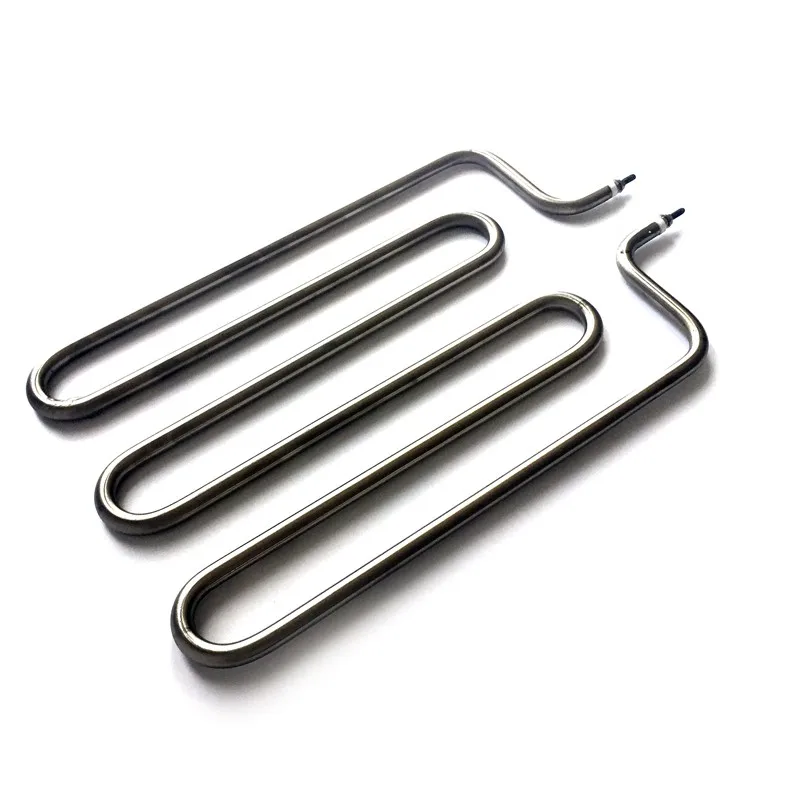

Formed Tubular Heater

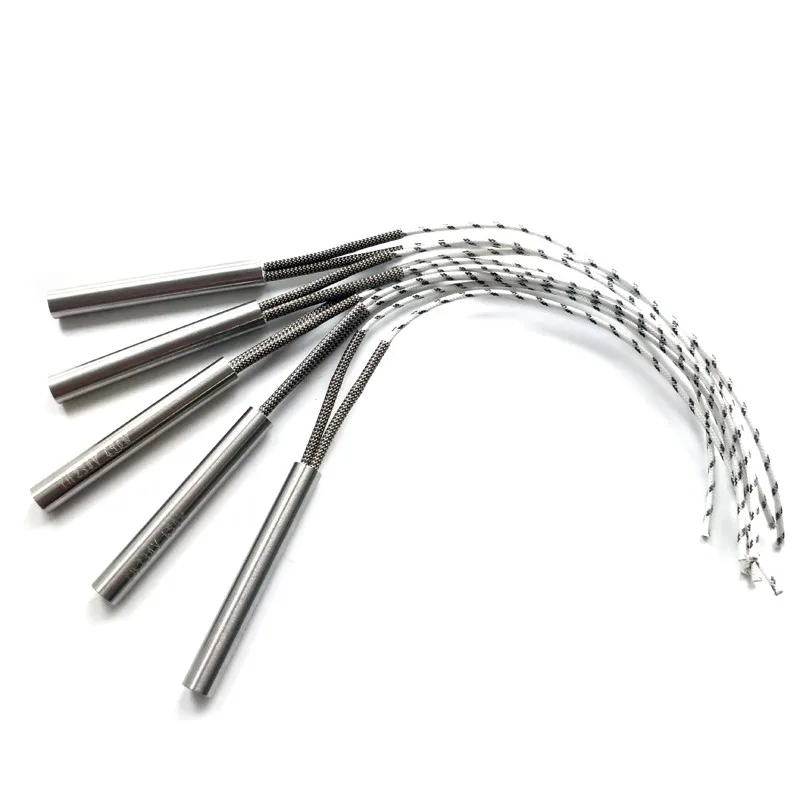

Cartridge Heater
Product Description
Immersion Tubular Heaters

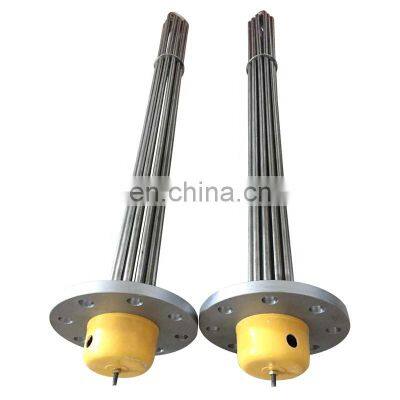

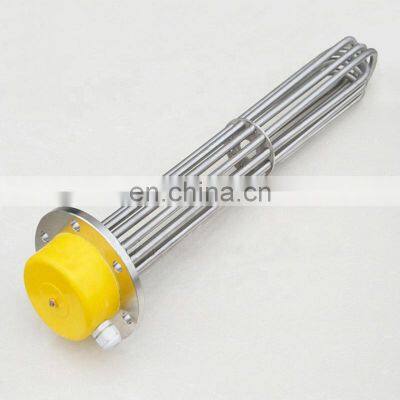

Electrical flange immersion heaters are designed for heating or temperature maintening of liquids, gas or mixture in static or circulation conditions.
The design is based on customer process conditions: fluid to heat (type and properties), in/out temperature, pressure, heat exchange conditions (stagnant or flowing), and environment conditions (ATEX or not, onshore or offshore, etc.).

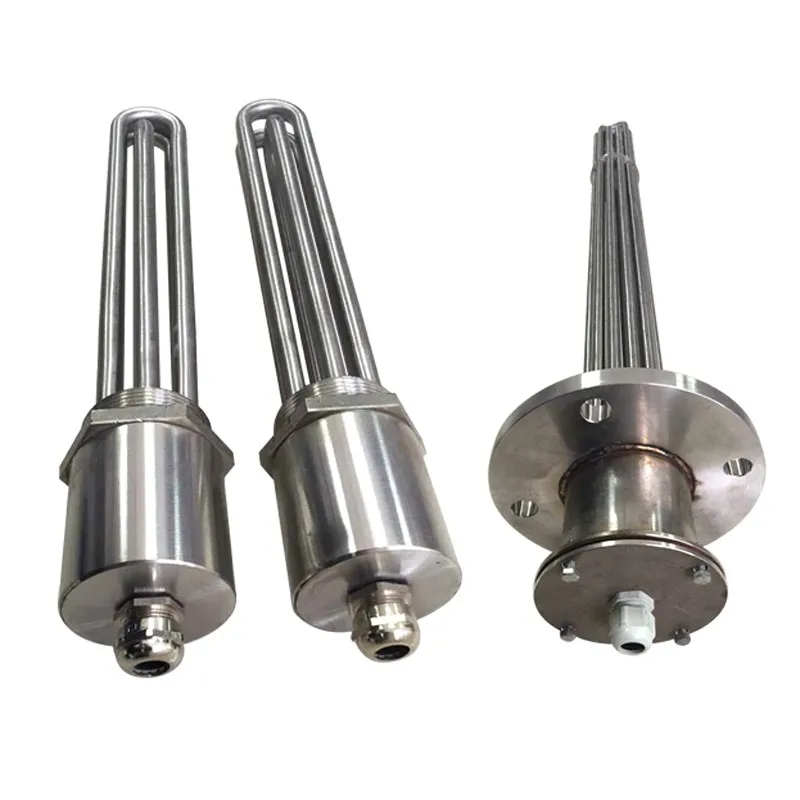

Flange immersion heaters can be straight or L-shaped.
Flange immersion heaters can be straight or L-shaped.
>>Technical Data
Flange size | DN 50 to DN 800 | ||||||
Screw plug size | 1 inch/1.5inch/2inch/2.5inch | ||||||
Tube Diameter | 8-16 mm | ||||||
Immersion Length | 150mm- 1500mm | ||||||
Heating Element | 3 elements, 4 elements, 6 elements, 10 elements etc under customer request | ||||||
Wattage density | 2-8W/cm2 | ||||||
Voltage | UP to 600V | ||||||
Sheath Material | Stainless Steel 304 316L 310S Copper Incoloy 800 840 | ||||||
Built in thermostat well | Built-in thermostat wells can be installed upon request. When ordering, please provide length BUILT-IN THERMOSTAT WELL and internal diameter | ||||||
>>Reference Drawing
>>How to choose the right Material for immersion heater?
Application | Sheath Material | Typical Watt Density(w/cm²) | Screw Plug/Flange Material | |||
Water, Freeze protection, Hotwater storage, Boilerandwaterheaters, Coolingtowers, Solution not corrosive to copper, Food equipment | Stainless Steel304 316L or Copper | 8w/cm2 | Stainless Steel or Brass | |||
Oil, Heavy and non-circulated oils, Solution water, Corrosive solutions, Steam super heating | Stainless Steel 316L 310s or Incoloy | 2.5w/cm2 | Stainless Steel | |||
Light oils , Inforced oil circulation loops | Stainless Steel304 316L | 4.5w/cm2 | Stainless Steel | |||
Mildly corrosive solutions | Stainless Steel 316L 310s or Incoloy | 8w/cm2 | Stainless Steel | |||
Fluid heat transfer media, Tar, High to low viscosity petroleum oils, Asphalt, Wax, Paraffin, Degreasing solvents, Alcohol, Molten salt, Solutions not corrosive to steel | Stainless Steel304 316L | 2.5w/cm2 | Stainless Steel | |||
Process water, Soap and detergent solutions, Soluble cutting oils, Demineralized or deionized water | Stainless Steel304 316L | 4.5w/cm2 | Stainless Steel | |||
PLEASE CONSULT CORROSION GUIDE RECOMMENDATIONS. | ||||||
>>Product Application
Fuel and Oil Heaters Hot Water Storage Tanks
Warming Equipment Preheating All Grades of Oil
Food Processing Equipment Cleaning and Rinsing Tanks
Heat Transfer Systems Process Air Equipment
Boiler Equipment Freeze Protection of Any Fluid
