Home > Consumer Electronics > Warmer Appliance > Heater Fan > CE Marked CP Series Ceramic Heater Infrared

CE Marked CP Series Ceramic Heater Infrared

CE Marked CP Series Ceramic Heater Infrared thumbnail-1
CE Marked CP Series Ceramic Heater Infrared thumbnail-2
CE Marked CP Series Ceramic Heater Infrared thumbnail-3
CE Marked CP Series Ceramic Heater Infrared thumbnail-4
CE Marked CP Series Ceramic Heater Infrared thumbnail-5
CE Marked CP Series Ceramic Heater Infrared thumbnail-6
CE Marked CP Series Ceramic Heater Infrared photo-1
CE Marked CP Series Ceramic Heater Infrared photo-2
CE Marked CP Series Ceramic Heater Infrared photo-3
CE Marked CP Series Ceramic Heater Infrared photo-4
CE Marked CP Series Ceramic Heater Infrared photo-5
CE Marked CP Series Ceramic Heater Infrared photo-6
US$ 26 - 30 MOQ: 10 Units
Key Specifications
Get Latest Price
Brand Name:
Heatfounder
Place of Origin:
China
Type:
Air Heater
Contact Supplier Request Quote Chat Now
Heat Founder (Shanghai) Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Heatfounder
Place of Origin China
Type Air Heater
Certification CE
Warranty 1 Year
Weight 3.2kg
Condition New
Voltage 80v
Power Source Electric

CP15-80V Preheating Pad

Product Description

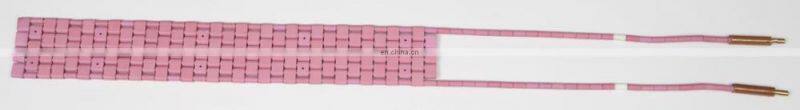

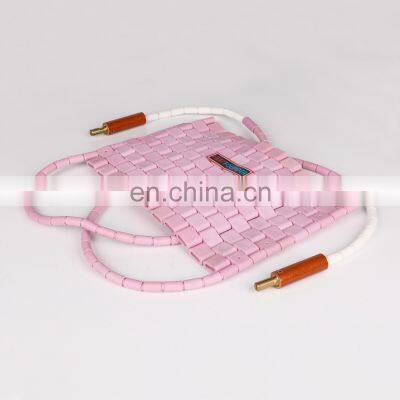

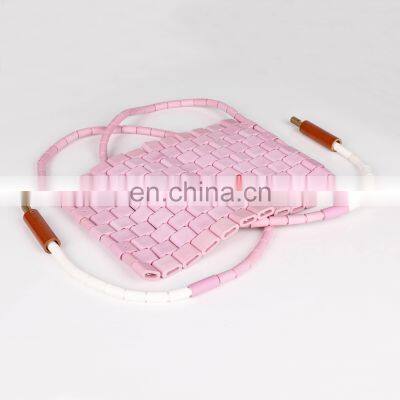

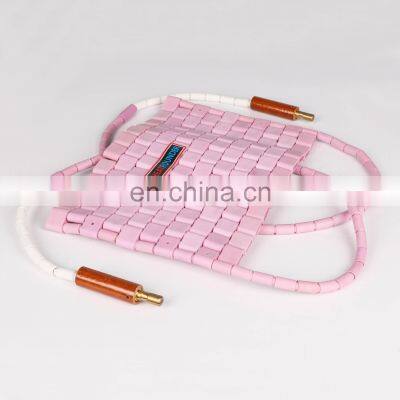

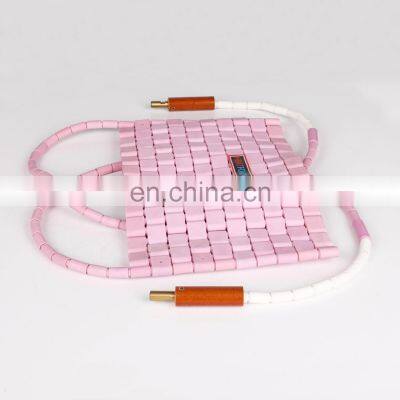

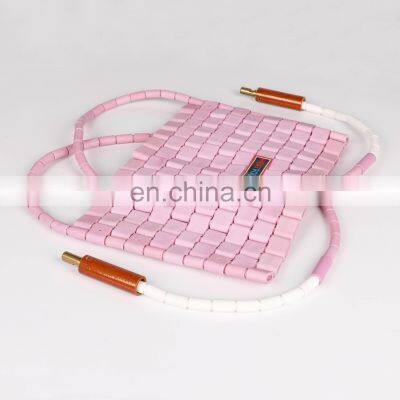

PWHT HEATER
Our high quality PWHT heaters are manufactured from high grade 0.55mm nickel-chrome (NiCr80/20) 19 stranded resistance wire which

run through durable aluminum oxide ceramics beads. Each ceramic pad heater has a cold tail of nickel 212 wire which allows the operator

to safely work with the element heater when it’s in use. All of our ceramic heating elements are equipped with camlock connectors.



The insulators together with the resistance wires are very flexible and gives a good heat radiation and effective heat transmission during

the required thermal process. Our heating elements are manufactured with a wide range of power ratings and voltages. We are able to

meet our customers’ needs regarding special models of size, shape, voltages and power rating.



Flexible, ceramic pad heating elements for pre and post weld heat treatment (up to 800°C) of pipe welds and fabrications.



60V Heater
Type Width(mm) Length(mm) Rating(KW) Current(amp) Voltage(V)
CP3-60V 76 736 2.7 KW 45 amp 60v
CP4-60V 102 533 2.7 KW 45 amp 60v
CP6-60V 152 381 2.7 KW 45 amp 60v
CP8-60V 203 279 2.7 KW 45 amp 60v
CP10-60V 254 229 2.7 KW 45 amp 60v
CP12-60V 305 178 2.7 KW 45 amp 60v
CP15-60V 381 152 2.7 KW 45 amp 60v
CP18-60V 457 127 2.7 KW 45 amp 60v
CP21-60V 533 102 2.7 KW 45 amp 60v
CP26-60V 660 89 2.7 KW 45 amp 60v
CP50-60V 1270 44 2.7 KW 45 amp 60v





80V Heater
Type Width(mm) Length(mm) Rating(KW) Current(amp) Voltage(V)
CP3-80V 76 991 3.6 KW 45 amp 80v
CP4-80V 102 737 3.6 KW 45 amp 80v
CP6-80V 152 508 3.6 KW 45 amp 80v
CP8-80V 203 381 3.6 KW 45 amp 80v
CP10-80V 254 305 3.6 KW 45 amp 80v
CP12-80V 305 254 3.6 KW 45 amp 80v
CP15-80V 381 203 3.6 KW 45 amp 80v
CP18-80V 457 178 3.6 KW 45 amp
