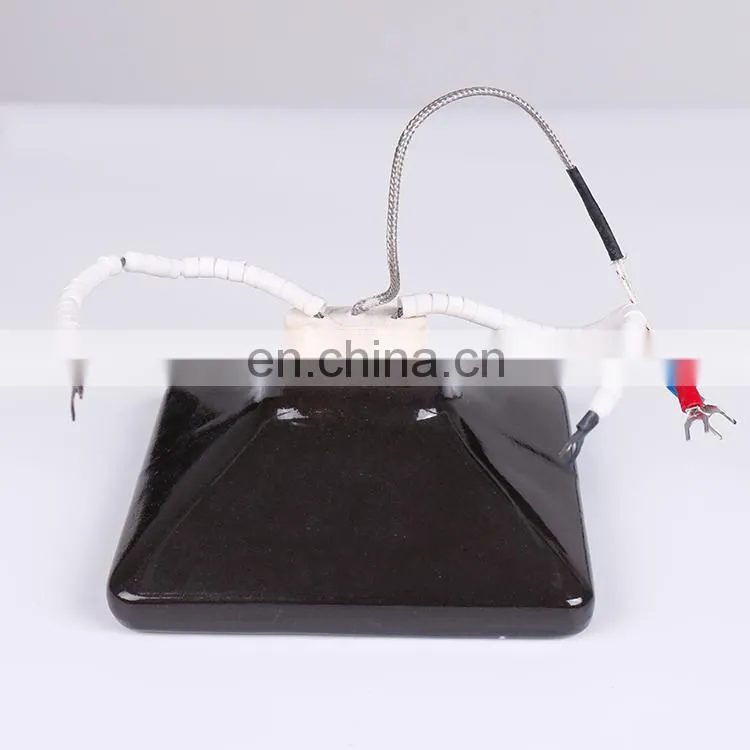

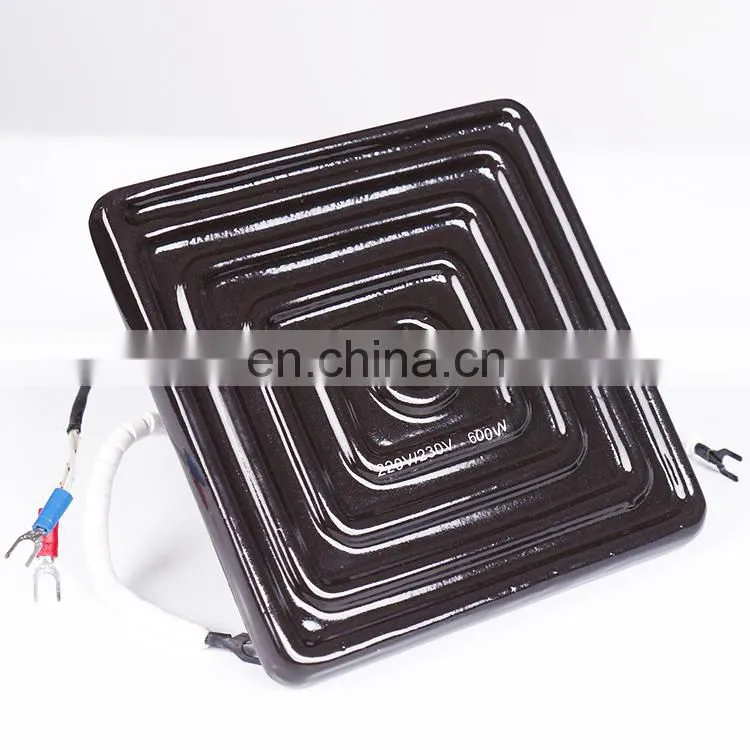

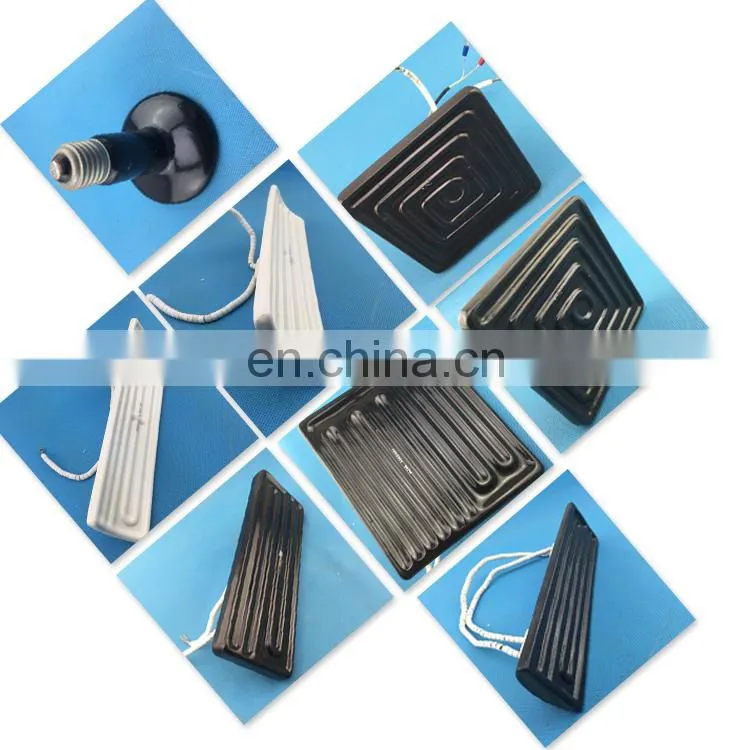

Help CenterWholesale Cheap Ceramic Plates Heater White Ceramic Heating Plate With CE Certificates
Related Products
-
Good Price Of Low Voltage Ceramic Heating Element White Ceramic Heating Plate With Good QualityUS$ 1.75 - 3MOQ: 20 Pieces -
Flexible Ceramic Pad Heater Element IR Heating Pad Heating Element From ChinaUS$ 1 - 150MOQ: 20 Pieces
-
Industrial Electric Far Infrared IR Ceramic Heater Plate With Reflector From ChinaUS$ 1.75 - 3MOQ: 20 Pieces
-
Black Electric Infrared Ceramic Heating Plate For Vacuum DryingUS$ 2 - 10MOQ: 20 Pieces
-
Electric IR Heater Far Infrared Ceramic Plate HeaterUS$ 2 - 10MOQ: 20 Pieces
Ceramic infrared heat elements are efficient, robust heaters which provide long wave infrared radiation.
The ceramic heaters and infrared heaters are used in a diverse range of industrial and engineering applications
such as thermoforming heaters, packaging and as heaters for paint curing, printing and drying.
They are also used very effectively in infrared outdoor heaters and infrared saunas.
| Material | Ceramic |
| Color | White/black/customized |
| Max operating temp | 750℃ |
| Voltage | 12v-480v/customized |
| Wattage | 125w-1500w/customize |
| Shape | Flat/curved/bulb |
| Reisistance wire element | Ni-Cr or FeCr |
| Useful wavelength range | 2 to 10μm |
| Average operating lift | Up to 20000hours depending on conditions |
| Cold areas | Depends on the length and diamter 5-25mm |
| Interal thermocouple | K or J type |
| Recommended radiation distance | 100mm to 200mm |
| Specification (MM) | Voltage (V) | Power (W) | Surface Load (4w/cm2) | Surface Temperature (℃) |
| 150*100 | 220 | 600 | 4 | 600-650 |
| 240*160 | 220 | 1000 | 2.6 | 500-550 |
| 250*150 | 220 | 1000 | 2.7 | 500-550 |
| 300*200 | 220 | 2000 | 3.3 | 550-600 |
| 330*240 | 220 | 2500 | 3.1 | 550-600 |
| 500*300 | 220 | 4000 | 2.6 | 500-550 |
Features For Ceramic Heating Plate
<1>.Power wire buried-cast, ant oxidation, resistant to impact, long service time
<2>. Heating alone or together.
<3>.It can obtain better uniform temperature to keep up and down about consistent when compact
<4>.In the hollow state off heat can also preserve heat, and heating speedup (adiabatic insulation cotton inside,
so the temperature directional radiate to achieve rapid warming effect).
<5>.Uniform temperature, will not fade.
Application For Ceramic Heating Plate
<1>.Heating in PH environment (for example: Footwear processing, tape, plywood heating).
<2>.Stove machine with major vibration or impact (for example: Vacuum forming machine , Compression Molding Machine).
<3>. Short distance heating (for example: Printing ink dryer, PCB repair station, Electric heating tables).
<4>.Heating in vertical or half round array (for example: Angle iron, Aluminum windows paint stove) .
