Price of XINXING PE, UHMWPE or HMWPE Board / Parts and Sheet

Price of XINXING PE, UHMWPE or HMWPE Board / Parts and Sheet photo-1
Price of XINXING PE, UHMWPE or HMWPE Board / Parts and Sheet photo-2
Price of XINXING PE, UHMWPE or HMWPE Board / Parts and Sheet photo-3
Price of XINXING PE, UHMWPE or HMWPE Board / Parts and Sheet photo-4
Price of XINXING PE, UHMWPE or HMWPE Board / Parts and Sheet photo-5
US$ 3 - 6 MOQ: 500 Kilograms
Key Specifications
Get Latest Price
Brand Name:
XINXING
Place of Origin:
China
Model Number:
UHMWPE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
15 days
Brand Name XINXING
Place of Origin China
Model Number UHMWPE
Material PE
Size 1220x3040mm , 1000x2000mm, 1550x3050mm etc
Thickness from 8mm to 260mm

Price of XINXING PE, UHMWPE or HMWPE board / parts and sheet

Price of XINXING PE, UHMWPE or HMWPE board / parts and sheet

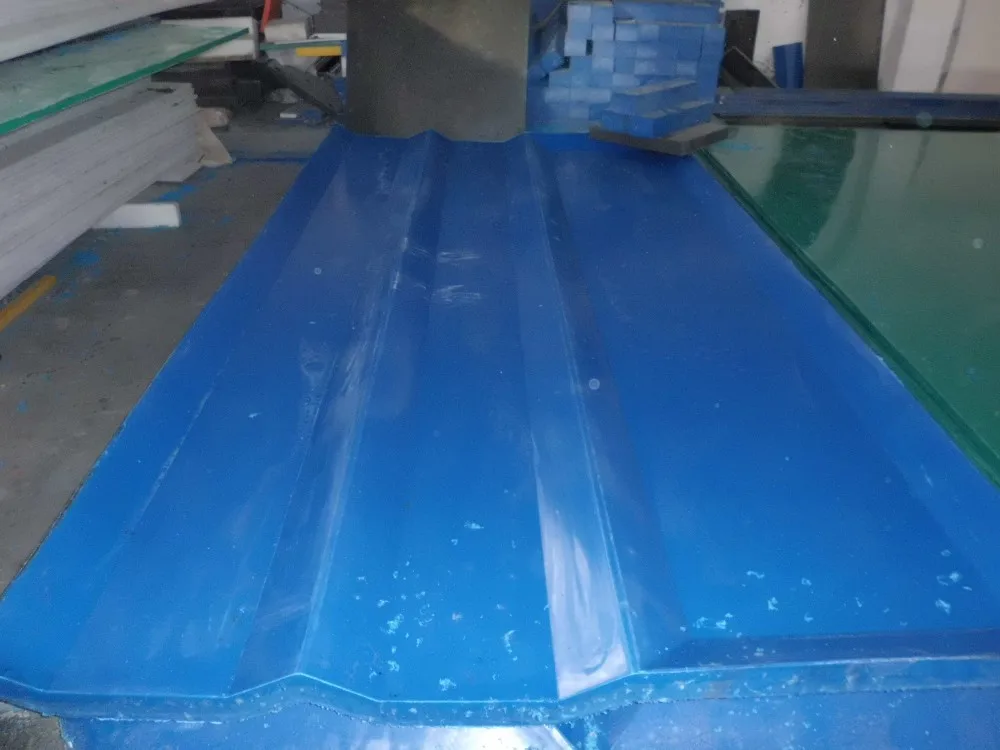

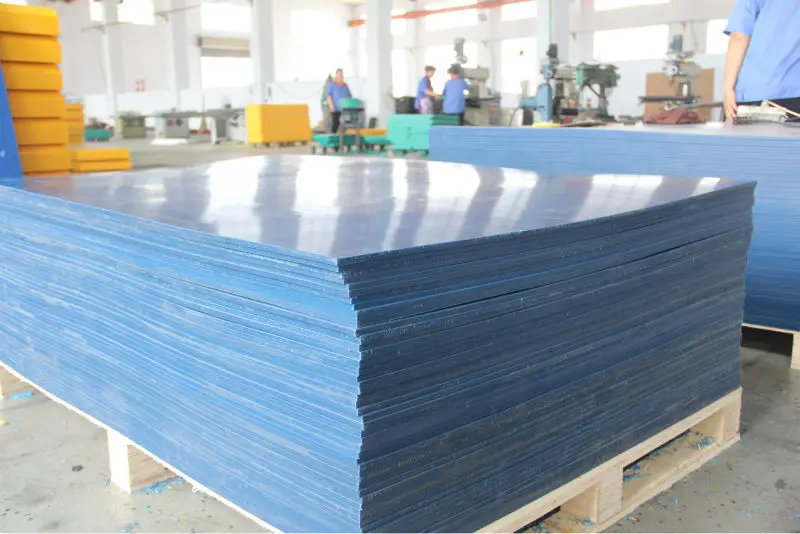

self lubrication pehd 1000 plate engineer plastic uhmwpe sheets


Price of XINXING PE, UHMWPE or HMWPE board / parts and sheet


self lubrication pehd 1000 plate engineer plastic uhmwpe sheets



Why Choose Us

More than 15 years' professional manufacturing experience with own factory.

Virgin 100% material produced, high quality with good surface and color make ensured

GB/T 19001-2008 ; ISO 9001:2008 certification.

Competitive price, In stock, Fast delivery, and Excellent service.

OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.

 The properties of UHMW-PE:

Property

Unit

Value

Density

g/cm3

0.93-0.96

Average molecular weight

 g/mol

3million- 10 million

Tensile strength (23°C in air)

MPa

22

Breaking strength

MPa

42

Tensile strain at break

%

600

Charpy impact strength (notched)

mJ/mm2

No break

Ball indentation hardness

N/mm2

42

Shore D hardness

--

65-70

Abrasion

%

70-80, steel = 100

Static Friction Coefficient

--



0.16

Kinetic Friction Coefficient

--



0.10

Water Absorption

--

NIL

Elongation at break at 23 degress

%

300

Temperature resistance

°C

-269 to +85

Melt Temperature

°C

130-140

Our UHMW-PE sheet Characters:

1.very flat on the surface

2.The thickness tolerance is +2 -0,some made according to your requirements.

3.The color is pure and any color can be made by us.

4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.

5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.

6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.

UHMWPE Advantages & Key Features:

--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel

--Anti-Weather & Anti-Aging

--Self-lubricating, Very low coefficient of friction

--Excellent chemical & corrosion resistant

--superior impact resistant, Noise- absorption, Vibration-absorption

--Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800C

--High tensile Strength

--Non-Toxic and smell

--UV resistance

--Flame Retardant; Relatively low in water absorption

--Excellent electrical properties

--Good performance in resisting environment stress crack, 200 times of ordinary PE

--No adhesion

--Light weight and easier to handle and fix

--Cost efficient; Resulting in low energy consumption

--Does not rot, split or crack; 100% recyclable

--Great liner material for industrial material handling applications

--Easy Reprocessed

Our UHMW-PE sheet standard sizes:

1.Thickness: 6 - 300mm
2. Width: max 2000mm
3. Normal standard size:

Length(mm)

Width(mm)

Thickness(mm)

2000

1000

6-300

3000

1500

6-300

4700

1200

6-300

5000

1300

6-300

4500

2000

6-300

3050

1220

6-100

Any small size need us to cut , we can satisfy your special need .
