Anti-uv Uhmw pe 1000 Sheet Wear Resistance UHMWPE Block

Anti-uv Uhmw pe 1000 Sheet Wear Resistance UHMWPE Block photo-1
Anti-uv Uhmw pe 1000 Sheet Wear Resistance UHMWPE Block photo-2
Anti-uv Uhmw pe 1000 Sheet Wear Resistance UHMWPE Block photo-3
Anti-uv Uhmw pe 1000 Sheet Wear Resistance UHMWPE Block photo-4
Anti-uv Uhmw pe 1000 Sheet Wear Resistance UHMWPE Block photo-5
US$ 3 - 6 MOQ: 500 Kilograms
Key Specifications
Get Latest Price
Brand Name:
XINXING
Place of Origin:
China
Model Number:
UHMWPE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
15 days
Brand Name XINXING
Place of Origin China
Model Number UHMWPE
Material PE
Size 1220x3040mm , 1000x2000mm, 1550x3050mm etc
Thickness from 8mm to 260mm

anti-uv uhmw pe 1000 sheet wear resistance UHMWPE blockanti-uv uhmw pe 1000 sheet wear resistance UHMWPE block



self lubrication pehd 1000 plate engineer plastic uhmwpe sheets


anti-uv uhmw pe 1000 sheet wear resistance UHMWPE block

self lubrication pehd 1000 plate engineer plastic uhmwpe sheets



Why Choose Us

More than 15 years' professional manufacturing experience with own factory.

Virgin 100% material produced, high quality with good surface and color make ensured

GB/T 19001-2008 ; ISO 9001:2008 certification.

Competitive price, In stock, Fast delivery, and Excellent service.

OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.

 The properties of UHMW-PE:

Property

Unit

Value

Density

g/cm3

0.93-0.96

Average molecular weight

 g/mol

3million- 10 million

Tensile strength (23°C in air)

MPa

22

Breaking strength

MPa

42

Tensile strain at break

%

600

Charpy impact strength (notched)

mJ/mm2

No break

Ball indentation hardness

N/mm2

42

Shore D hardness

--

65-70

Abrasion

%

70-80, steel = 100

Static Friction Coefficient

--



0.16

Kinetic Friction Coefficient

--



0.10

Water Absorption

--

NIL

Elongation at break at 23 degress

%

300

Temperature resistance

°C

-269 to +85

Melt Temperature

°C

130-140

Our UHMW-PE sheet Characters:

1.very flat on the surface

2.The thickness tolerance is +2 -0,some made according to your requirements.

3.The color is pure and any color can be made by us.

4.We can give you an accurate size of UHMW-PE Sheet with advanced machine.

5.Different shaped UHMW-PE Sheets also can be made by us like bending sheet.

6.According to different requirements with different application, special specifications can be customized, like anti-UV, fire-resistant,anti-static and with other characters.

UHMWPE Advantages & Key Features:

--Highest abrasion resistance of any polymer, 6 times more wear resistant than steel

--Anti-Weather & Anti-Aging

--Self-lubricating, Very low coefficient of friction

--Excellent chemical & corrosion resistant

--superior impact resistant, Noise- absorption, Vibration-absorption

--Temperature range: -2600C ~ +800C; Very high resistance to cold,doesn't become fragile even under -1800C

--High tensile Strength

--Non-Toxic and smell

--UV resistance

--Flame Retardant; Relatively low in water absorption

--Excellent electrical properties

--Good performance in resisting environment stress crack, 200 times of ordinary PE

--No adhesion

--Light weight and easier to handle and fix

--Cost efficient; Resulting in low energy consumption

--Does not rot, split or crack; 100% recyclable

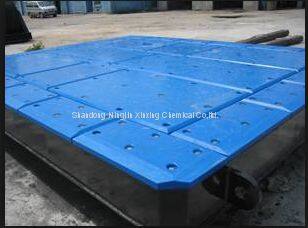

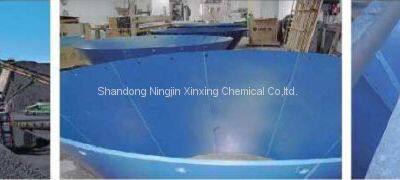

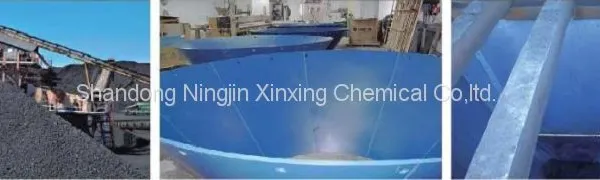

--Great liner material for industrial material handling applications

--Easy Reprocessed

Our UHMW-PE sheet standard sizes:

1.Thickness: 6 - 300mm
2. Width: max 2000mm
3. Normal standard size:

Length(mm)

Width(mm)

Thickness(mm)

2000

1000

6-300

3000

1500

6-300

4700

1200

6-300

5000

1300

6-300

4500

2000

6-300

3050

1220

6-100

Any small size need us to cut , we can satisfy your special need .


Product Tags: UHMW , UHMWPE sheet , PE1000 , UHMWPE panel , engineer plastic UPE , UHMWPE liner , UHMWPE plate , plastic , hdpe sheet
