Help CenterValve Motorized Multi Turn Actuator Electric Motors ST14
Related Products
-
Intelligent Electric Actuator With Angular Travel 4-20ma Bernard Actuator OAP OA15 ASPUS$ 335 - pcMOQ: 1 Piece -
ACTUATOR TYPE AS1000 415V 3PHASE 0.70 AMPSUS$ 600 - 1300MOQ: 1 Piece
-
Bernard Electric Actuator With Stop Valve Asm6 Asm10 Asm16US$ 600 - 1300MOQ: 1 Piece
-
On-off Type Intelligent Electric Linear Turn Actuator Skz-4200f Skz-4200kUS$ 470 - 1200MOQ: 1 Piece
-
SD Series High Torque Linear-turn Electric Actuator Skz-4100f Skz-4100kUS$ 400 - 1390MOQ: 1 Piece
Motion Mode |
|||||||
Quarter-turn |
Multi-turn |
Linear-turn |
|||||
|
Torque 4000Nm |
Torque 1~100KNm |
Torque 60~6000Nm |
Torque 10~10KNm |
||||
|
Environmental Conditions
|
General Environment
|
Control Mode
|
On / Off |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
S1S2S3S4 |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
|||
|
Explosive and Flammability
|
On / Off |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
||
S1S2S3S4 |
OA AS |
ST+RS |
ST |
ST+VE/SRA+VE |
|||
Bernard intelligent electric actuator is the result of the combination of our company’s production, study and research, adopting national and domestic technology. It absorbs Bernard Company’s 25 years experience of producing electric actuator. It is a new generation intelligent electric actuator on the basis of original products of Bernard actuator.
Multi-turn intelligent integration electric actuator can be used for control various of valves, like gate valve, globe valve, high temperature and high pressure valve, desuperheating water valve and other rotate valves with 0-360° rotation, and the torque is 60~6000Nm. Explosion-proof Grade : IP67.

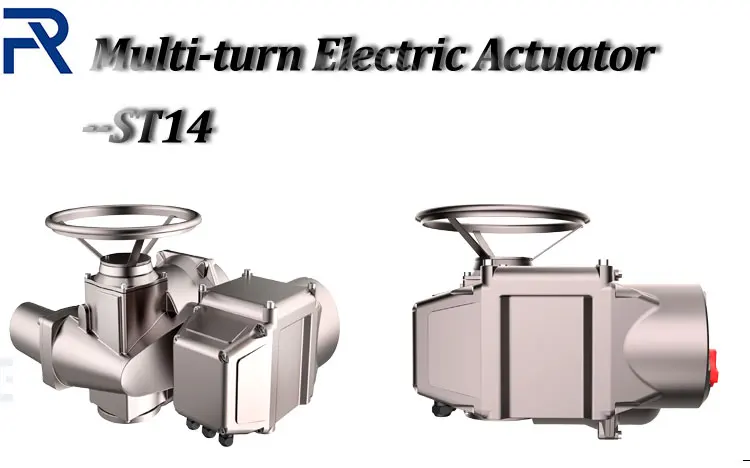

ST14 muti-turn electric actuator has archieved an excellent reputation over the years in this market thanks to a range of actuators providing the following features:
Compact construction with a high output torque
Self-locking gear train to maintain the position of the valve when the actuator is de-energized
Very good resistance to vibrations
Very simple settings - no specific tool required
Adjustable mechanical travel limit stops to prevent overtravel
Removable drive socket for easy machining
Emergency handwheel and mechanical position indicator provided on all actuators as a standard
3-phase power 380v, 50Hz
Single phase power 220v, 50Hz

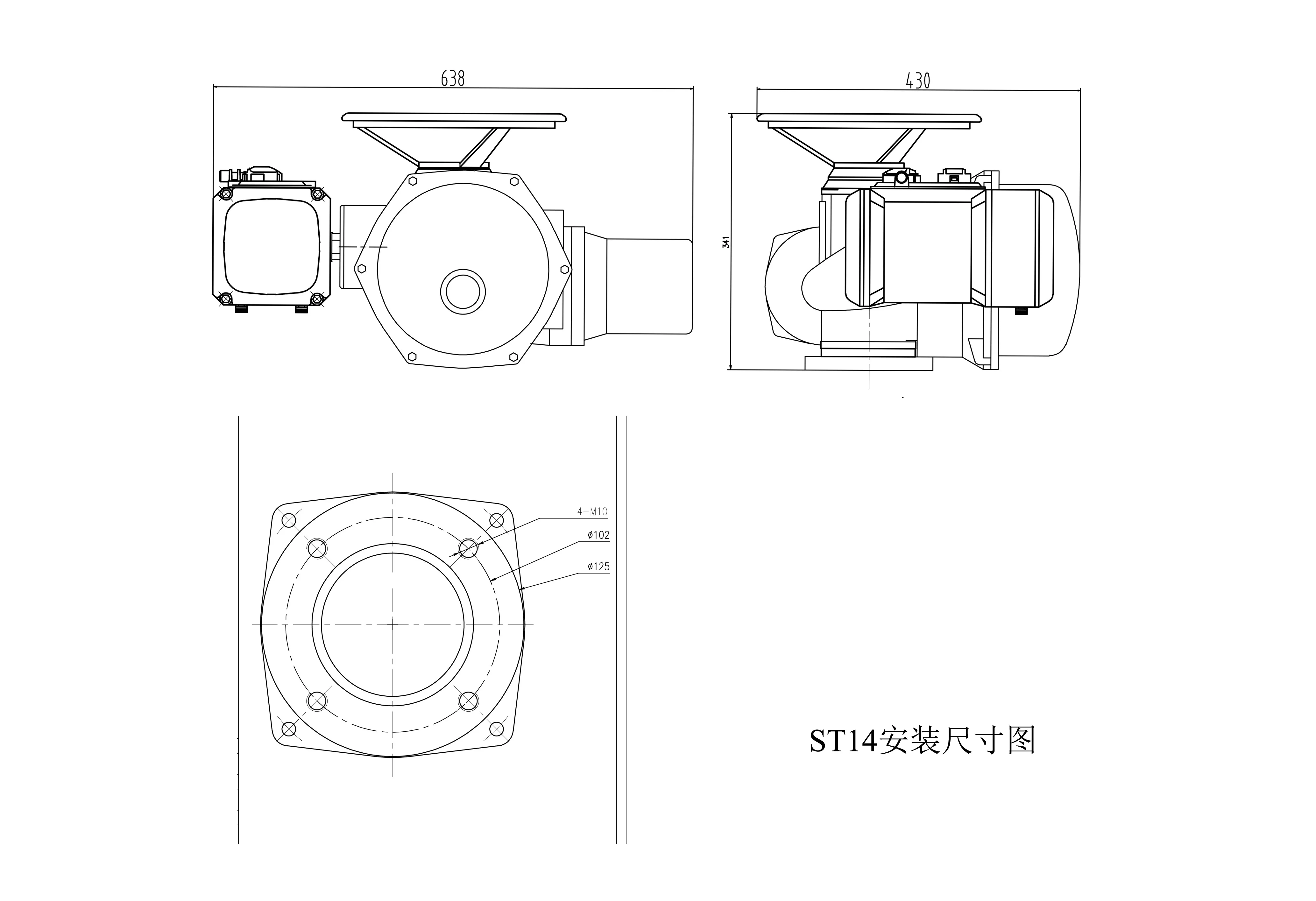

ST14 installation size drawing
1. Easy limit adjustment
2. Self-locking at all speeds
3. Continuous gear transmission between motor and valve
4. Excellent vibration resistance on main mechanical components
5. No regular maintain required, gear lubrication is effective throughout its service life
6. High gear system efficiency and low wear
7. High performance and low noise

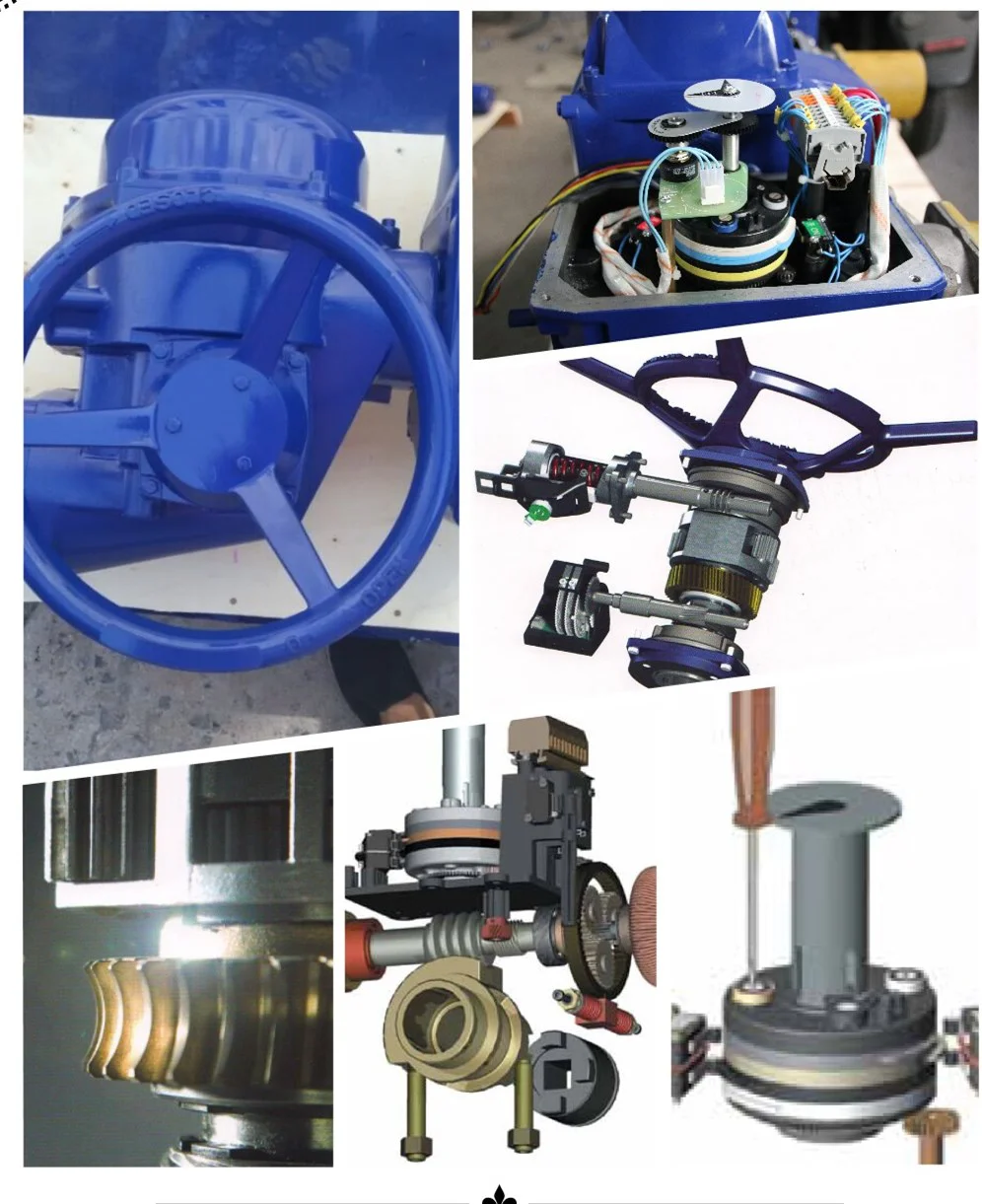

Hand wheel does not rotate during electrical control; automatic manual and motor operation switching.

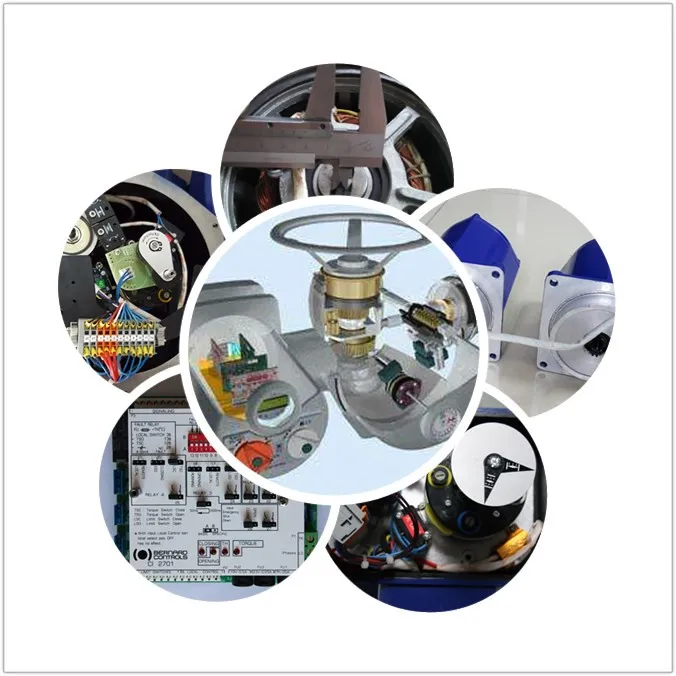

Product details
The asynchronous motor used on Bernard electrical actuator provides the highest nominal torque ratio on starting, which makes it competent in coping with all difficult situations and frequent starting operations.
1. Asynchronous motor provides high torque on starting
2. Motor overload protection
3. Motor overheat protection
Motor insulation grade F
ASP,OA series quarter-turn electric actuators
ST+RS series quarter-turn electric actuators

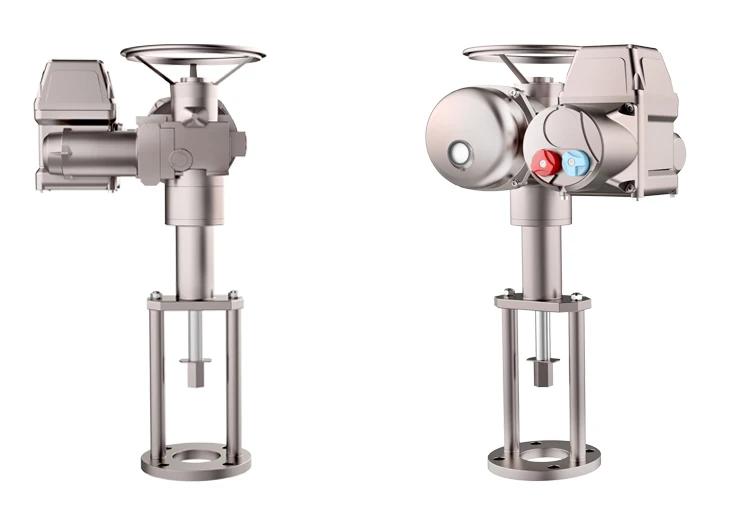

ST+VE Linear-turn electric actuators
1. Orders processed timely after the payment verification .
2.Terms of deliver: FOB / CFR / CIF / EXW etc.
3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .
Payment:
1. We accept TT,D/A,/D/P,L/C, West Union with 30% Deposit.
2. 30% Initial payment must be made within 3 days of order .and 70% TT before delivery.
Documents:
1.Certificate of origin:CO,FORM A.FORM E,FORM F,FORM X ISSUED BY CCPIT / Chamber of Commerce.
2.Commercial invoice
3.Packing list
3.Quanlity certificate.
