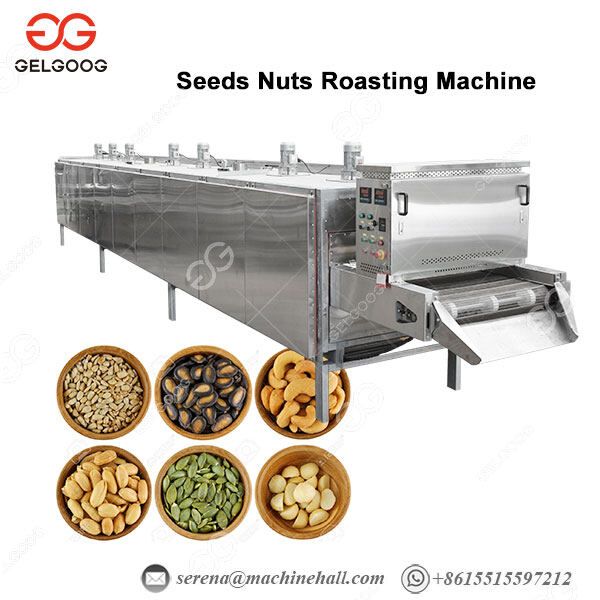

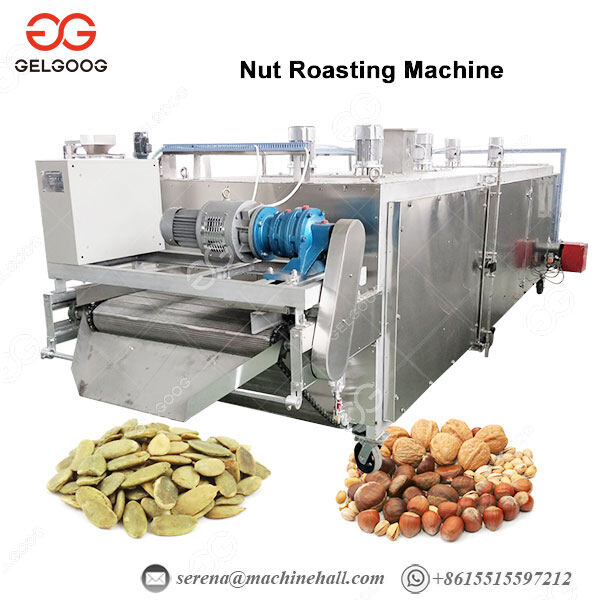

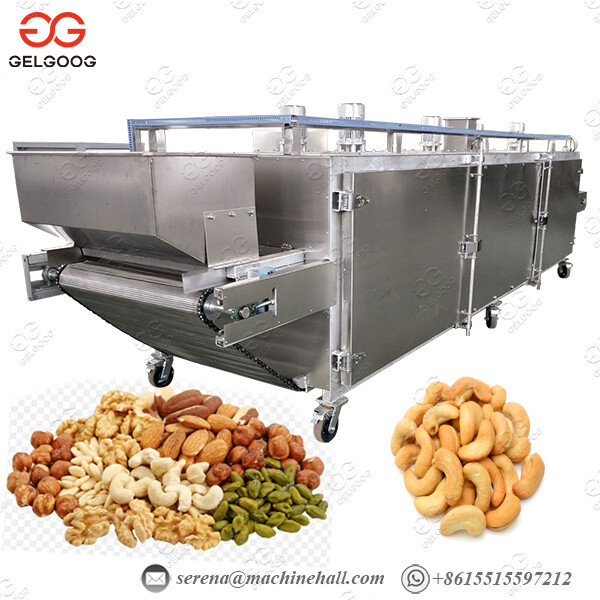

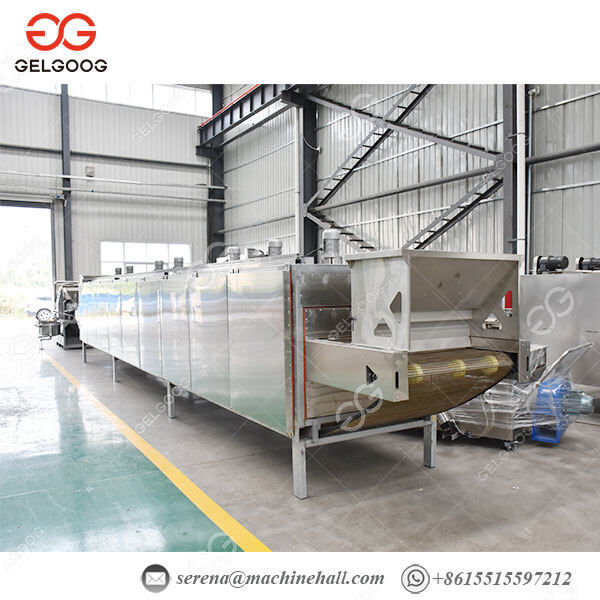

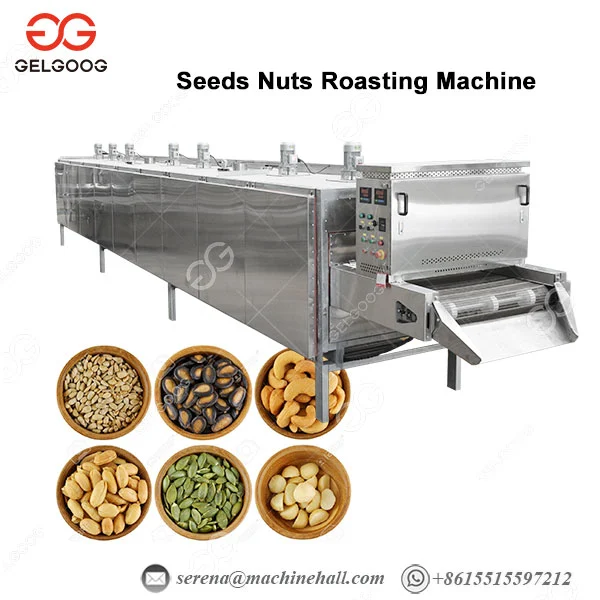

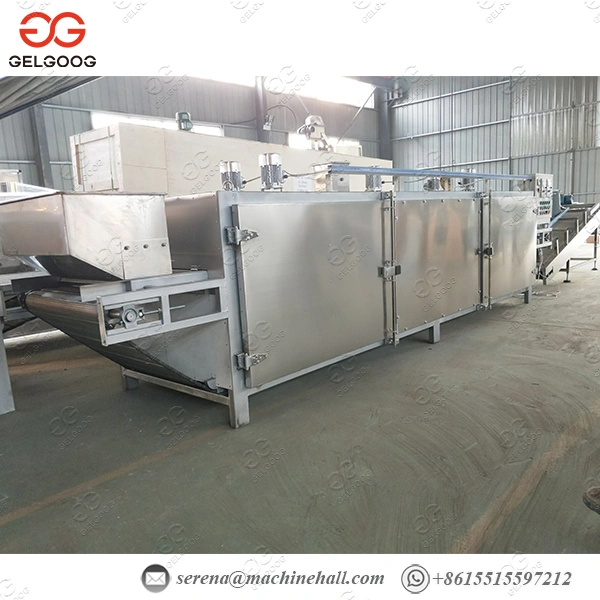

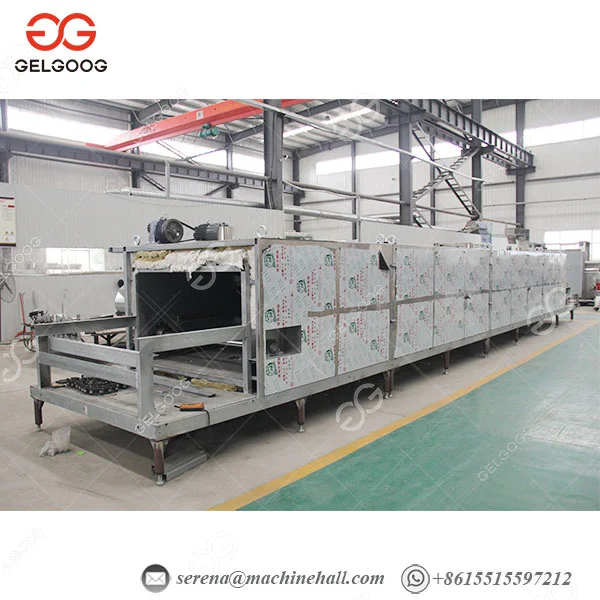

The mesh belt roasting machine is composed of a frame, a conveyor mesh belt, a heating device and a thermal cycle device. The heating device and the thermal circulation device make uniform circulating hot air in the oven.
Model |
Power(kw) |
Capacity |
Dimension |
Weight |
Gas Heating |
|
GG-HLG6 GG-HLE6 |
Motor:2.6KW Electric Heating:22-36KW |
100-150KG/H |
6000*1500*1450 |
1500 |
2-4kg |
|
GG-HLG8 GG-HLE8 |
Motor:2.97KW Electric Heating:33-48KW |
150-200KG/H |
8000*1500*1450 |
1700 |
3-5kg |
|
GG-HLG11 GG-HLE11 |
Motor:4.08KW Electric Heating:48-70KW |
200-300KG/H |
11000*1500*1450 |
2000 |
6-8kg |
Working Principle:

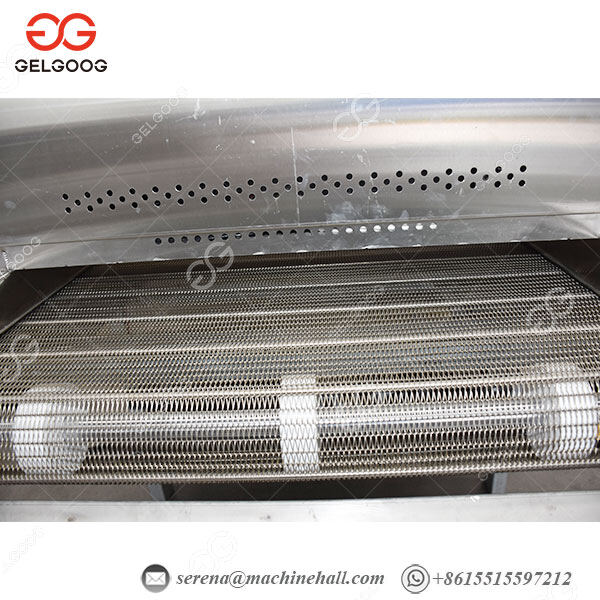

It is a kind of batch, continuous production. Its main principle is to put the material evenly spread in net, net belt with 12-60 steel mesh belt, reciprocate by dragging gear in dryer, hot air between the material flows and water vapor from moisture discharge hole, so as to achieve the purpose of drying.The cabinet length is made up by the standard section, in order to save space.
Application
This machine is mainly used to roast the peanut, soybean, nuts and other grain. The advantage of this machine is automatic, and the temperature also can be controlled automatically. Heating method can be electric heating, gas hearing and multifunctional heating method.
Features
1. Use independent temperature zones to achieve efficient heat treatment processes & maximize heat efficiency.
2. Precise control gas flow, roasting temperature and humidity to improve or maintain material properties.

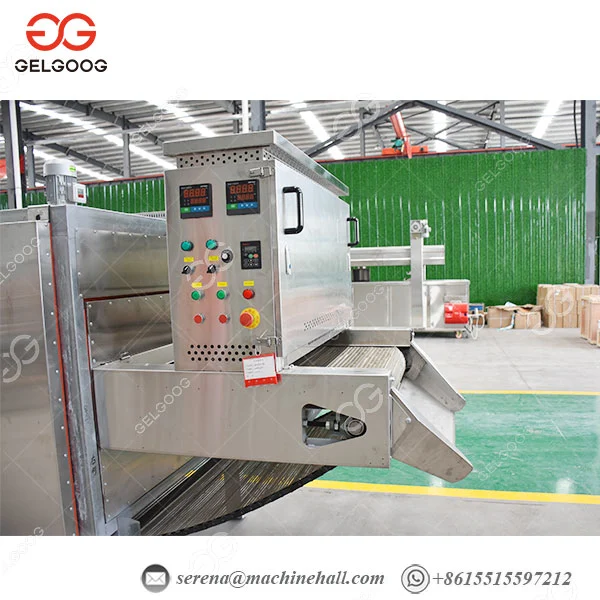

3. PLC programmed controller, man - machine conversation operation simpleness and convenience.
4. International famous brand burner, electronic control components is used on oven operation which can accurately control the flow of natural gas, temperature, equipment always keeps in optimized energy-saving operation.
