Home > Products > vibrating screen > High Precision Ultrasonic Vibrating Screen Starch Sieve Machine Sand Separator Machine
High Precision Ultrasonic Vibrating Screen Starch Sieve Machine Sand Separator Machine
- 100 Set / Sets per Month
- qingdao
- T/T Credit Card PayPal Other Cash
- Sanyuantang Rotary Vibrating Screen for Sieving Milk Powder Machine
- High Frequency Vertical Electric Three Phase Vibration Motor in Vibrating Screen
- High Capacity Rotary Vibrating Screen for Separating Soy Milk Filter Machine
- Sanyuantang Circular Vibrating Screen for Sieving Fruit Juice Separator Machine
- High Efficiency Linear Vibrating Screen for Sieving Food Separator Machine
- Sanyuantang Linear Vibrating Screen Chemical Fertilizer Sieve Shaker
Product Details
Brand Name: | Sanyuantang | Place of Origin: | China | Type: | Other, Series of rotary vibating screen |
Certification: | CE,ISO | After-sales Service Provided: | No overseas service provided | Warranty: | One year ,24 hours technical support. |
Weight: | According customer's require. | Dimension(L*W*H): | According customer's require. | Voltage: | 220V/380V/415V/450V |
Condition: | New | Power(W): | 0.75KW |
Product Description
Screens a practical and reliable screening system, which is developed by our company to resolve the current mesh plug problems’ most effective solution. Ultrasonic Vibrating Screen is composed of ultrasonic power, transducer and sympathetic vibration ring. Transducers change the high frequency current which supplied by the ultrasonic power into sinusoidal vertical wave of oscillation (ultrasonic wave), these ultrasonic wave reached the sympathetic vibration ring generate
resonance, then evenly transferred to the screen surface.
Sieve materials while doing the low-frequency vibration, superimposed on the ultrasonic vibration, it can not
only avoid the mesh plug, but also can improve product capacity and quality greatly.
Features:
A. The mesh does not block and it cab self-cleaning.
B. Bouncing balls and blocking device do not need.
C. Long service working life.
D. Ultrasonic Vibrating Screen is suitable for screening 40-635 mesh size, especially above 300 mesh.
E. The Sieve size can improve 1-70% and the capacity can improve maximum up to 10 times.
F. Ultrasonic Rotary Vibrating Screen has high screening efficiency, solve screening problems effectively
Such as strong adsorption, easy reunion, high electrostatic, high density, light proportion etc.
Application:
Ultrosonic Vibrating Screen
is widely used in metallurgy powder, electromagnetic materials, metal powder, iron powder, zinc oxide, alumina powder, alloy powder, molybdenum powder, cobalt powder, carborundum, copper, nickel powder, silica powder, titanium oxide, tungsten carbide, tungsten powder, titanium powder , stainless steel powder etc.
Technical Parameters
Ultrasonic Vibrating Screen Technical Parameters | |||
Frequency | 34KHz | Overall Dimension | 345mm*320mm*145mm |
Power | 220V~240V50/60HZ | IP Code | IP55 |
Working Mode | Continuous | Adjustment Range | 50~100% |
Temperature | 45°C | Transducer | Offset |

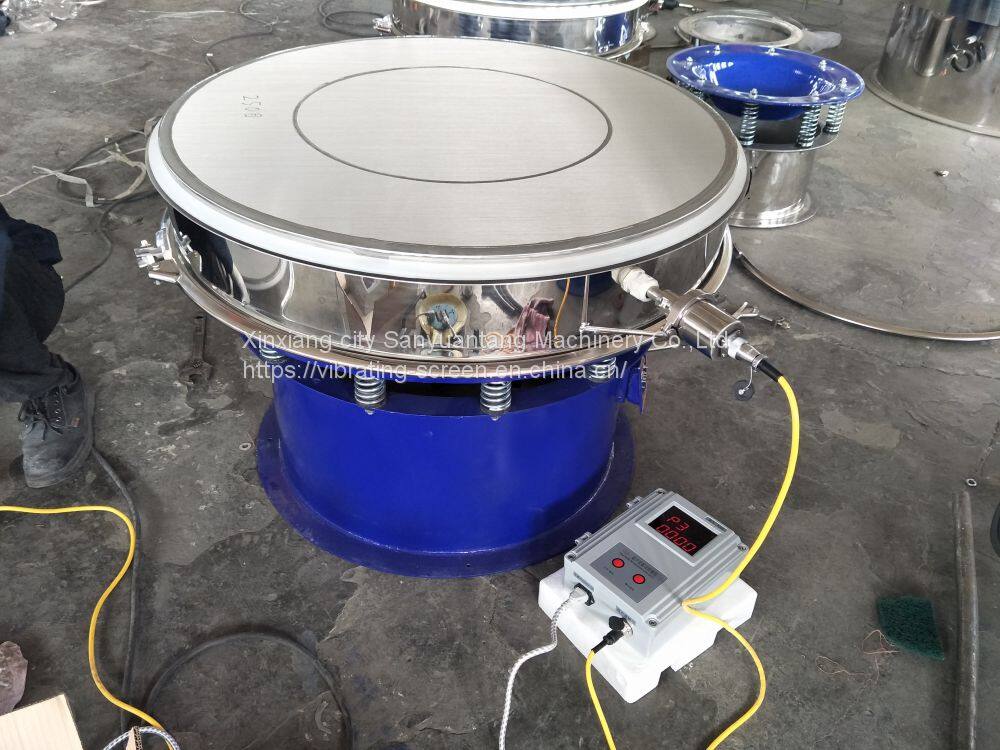

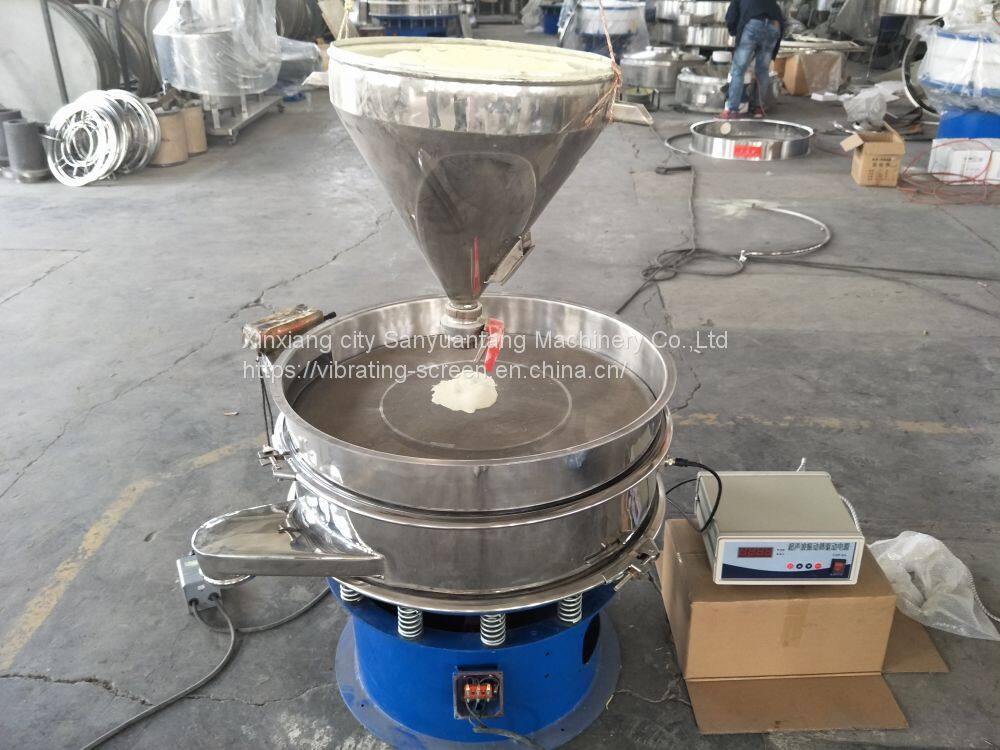

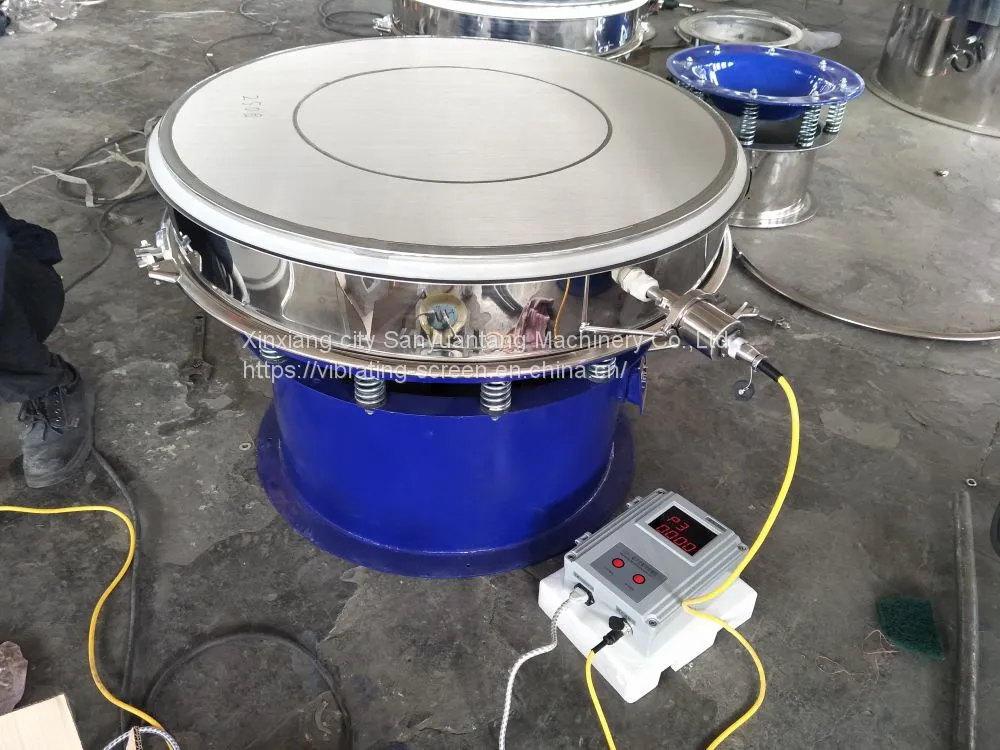

Product shows:
