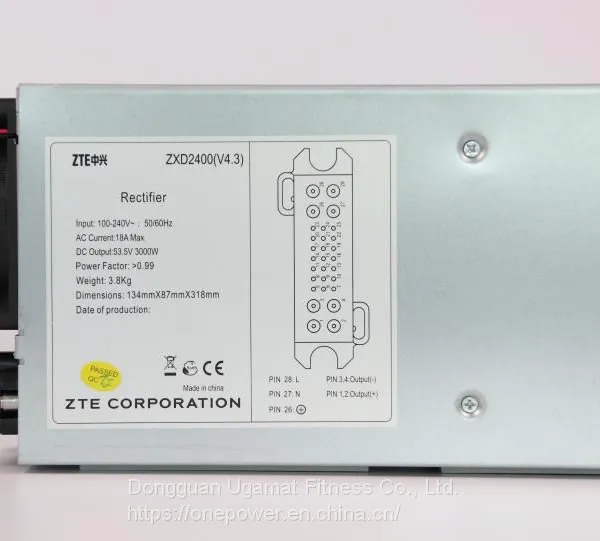

Original NEW ZTE ZXD2400 V4.3 Version, 48V 50A rectifier module.
ZTE ZXD2400 50A rectifier module features
1. ZTE ZXD2400 50A rectifier module adopts new high-capacity device IGBT, which simplifies the circuit structure and improves the reliability;
2. ZTE ZXD2400 50A rectifier module adopts soft switching power conversion technology in the full load range to ensure high conversion efficiency in the full load range, and also improve the switching frequency, making the power supply small and lightweight, and electromagnetic interference is also followed. significantly reduce;
3. The wide AC input voltage range is suitable for the current situation of China's vast rural and mountainous power grids;
4. The AC input power factor is close to 1;
5. ZTE ZXD2400 50A rectifier module realizes constant power output characteristics. After AC power failure, the caller charges the battery. When the battery voltage is low, it can provide 20% higher current than the rated output. At the same load capacity, the number of single modules can be reduced, thereby saving investment for the user;
6, built-in monitoring CPU and liquid crystal display module, real-time display of various parameters of the rectifier;
7. The protection alarm parameters can be set through the keyboard, and the variables such as the floating charge output voltage and the output current limit point can be adjusted;
8. Perfect three-way interface function, providing RS485 communication interface, which can realize centralized monitoring;
9. ZTE ZXD2400 50A input and output has perfect and reasonable protection measures, which not only improves the reliability of the rectifier, but also protects the electrical equipment;
10, convenient input and output interface, can achieve direct hot swap;
11. Advanced modular design, multiple parallel automatic equalization;
12, fan temperature control work, improve the reliability of the system;
13. ZTE ZXD2400 50A rectifier module professional input and output filter circuit and ** insulation design make it have good electromagnetic compatibility and minimal electromagnetic radiation.
Model: ZXD2400
Output type: single output
Output power: >500W
Input voltage: 110-220V
Regulated form: widened switching power supply
Power start mode: Self-excited switching power supply
Connection method: Parallel switching power supply
