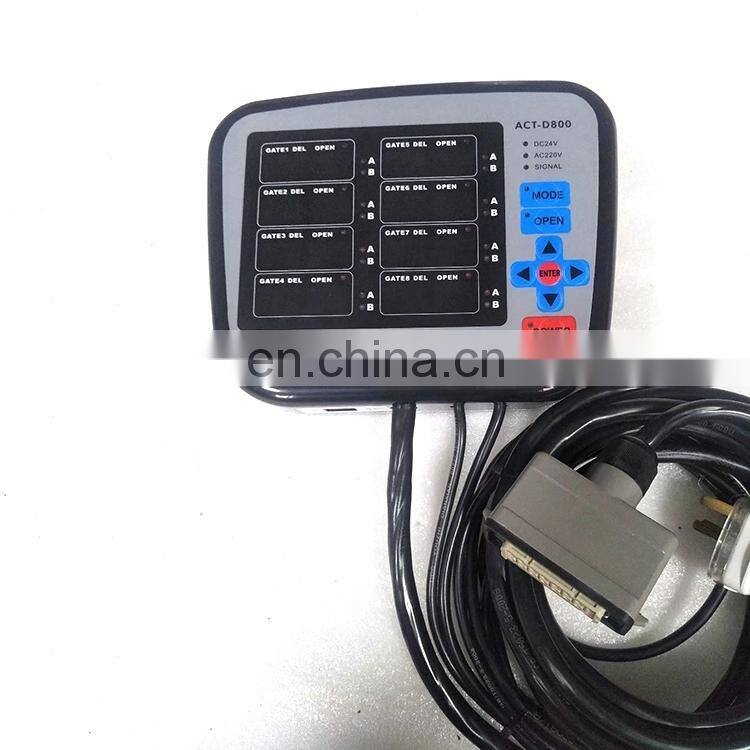

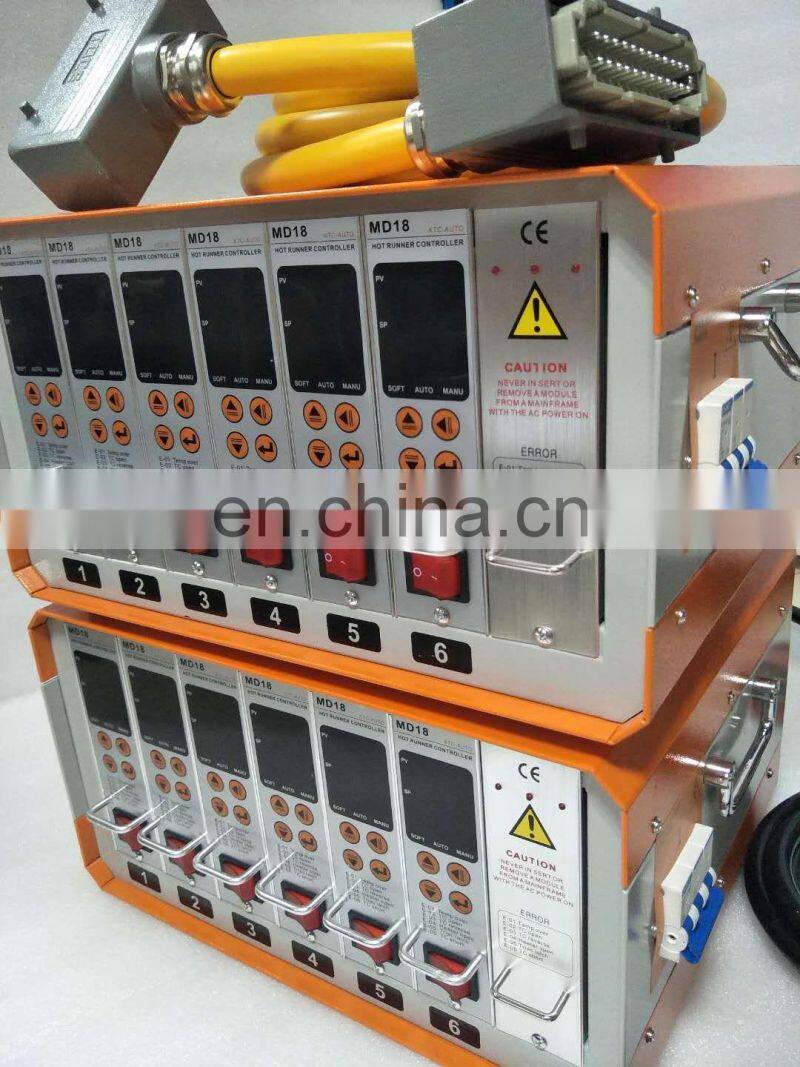

Help Center1-24 Zone Injection Mold Yudo Hot Runner Digital Temperature Controller
Related Products
-
1-24 Zone Pid Hot Runner Temperature Controller BoxUS$ 67 - 101MOQ: 1 Set -
1-32 Zone Hot Runner Heating Temperature Controller CompactUS$ 67 - 101MOQ: 1 Set
-
Mold Hot Runner 1-24 Zone Temperature ControllerUS$ 67 - 101MOQ: 1 Set
-
MACH 1-24 Zone Temperature Controller Hot Runner ModuleUS$ 67 - 101MOQ: 1 Set
-
1-24 Zone Injection Mold Yudo Hot Runner Temperature ControllerUS$ 6 - 101MOQ: 1 Set
| Product Type | Hot runner timing controller |
| Zones | 1~24,or customized |
| Power Supply | AC86~ 240V, 50/60HZ, 50/60HZ Hot runner timing controller |
| Sensor Type | Thermocouple J or K |
| Temperature Accuracy | ±0.5℃ |
| Working Temperature | 0~55℃(32~131℉) |
| Temperature Range | 0~450℃(32~860℉) |
| Control Function | Auto / Manual |
| Input Type | DC24V / AC220V |
| Output Type | Bidirectional Thyristor 15A 220V AC 3600W |
| Accuracy | 0.01s |
| PCB Composition | Controller PCB and Display PCB |
Features:
1. Wide power supply range, AC86~240V
2. Thermocouple input protection, prevent module damaged by mis-connection
3. Thermocouple & heater inverse protection, prevent thermocouple damaged by mis-connection
4. The temperature control error is 0.5 degrees, FUZYY+PID control algorithm, PID parameter has two ways: online automatic setting and manual setting.
5. The output power shows that the output power can be automatically detected during heating.
6. With the hot runner soft start heating mode, the heat flow dehumidification effect is realized, the heating pipe can be protected to prolong the service life effect, the soft start heating power and the heating time can be set freely.
7. Two kinds of K and J type thermocouple sensor signals can be set. The precise temperature nonlinear processing and integrated cold end compensation control mode is zero crossing trigger mode, PWM pulse width modulation output
8. There are two ways to set and display the temperature and the degree of Fahrenheit.
9. Temperature upper limit alarm function, temperature lower limit alarm function, upper / lower limit temperature can be set.
10. Besides automatic control, the system is equipped with manual control mode for heating in special cases.
Diagnostic Functions
Alarm when the followings occurred
1. Ultra-high or ultra-low Temperature
2. Thermocouple break, short or inverse
3. Thermocouple is out of its position
4. Heater break, short or overload
5. Output device is damaged
Q1:Where can I get product&price information?
A1:Send us e-mail , we will contact you as we receive your mail.
Q2: How soon can I get samples?
A2: Depending on your specific project, it usually takes 10 to 20 days.
Q3:How to enjoy the OEM services?
A3:Usually, base on your design drawings or original samples, we give some technical proposals and a quotation to you, after your agreement, we produce for you.
Q4:Can you make machining parts based on our samples?
A4:Yes, we can make measurement based on your samples to make drawings for machining parts making.
Q5: Is it possible to know how are my products going on without visiting your company?
A5: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
