Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > Acrel AMC96L-E4/KC Three Phase Digital Power Meter

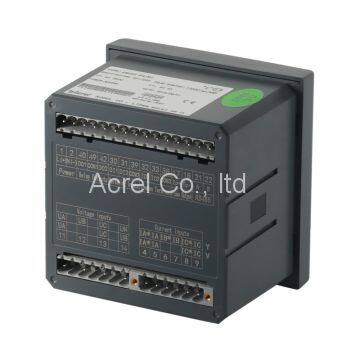

Acrel AMC96L-E4/KC Three Phase Digital Power Meter
US$ 74 - 74
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
AMC96L-E4/KC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
AMC96L-E4/KC Multifunction Meter LCD Display RS485 Modbus-rtuUS$ 74 - 74MOQ: 1 Piece -
Digital Electricity AC Ammeter Meter With Modbus-RTU AMC72L-AI3US$ 50 - 50MOQ: 1 Piece
-
Digital LCD Electric Power Meter With RS485 Communication AMC72L-AV3-CUS$ 56 - 56MOQ: 1 Piece
-
AMC72L-AI3 Ampere Panel Meter Current 3 Phase AmmeterUS$ 50 - 50MOQ: 1 Piece
-
AMC72L-AI3 Voltage Current Meter Charger Tester DetectorUS$ 50 - 50MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
AMC96L-E4/KC
Phase
Three Phase
Operating Temperature
-20~+60℃
Dimensions
75*75mm
Display Type
Analog and Digital
Accuracy Class
0.7

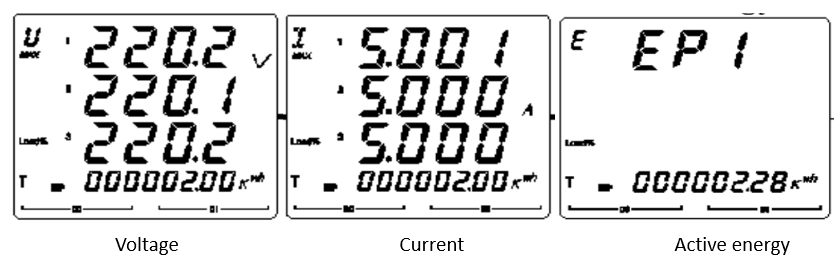

AMC series smart power monitoring meter adopts AC sampling technology, can measure many 3 phase grid electrical parameters such as current, voltage, power, electric energy etc..
It can be used for local display, and also can be connected with the control equipment to form measuring and controlling system.
Fitted with RS-485 communication port, adopting Modbus-RTU protocol. Meters can switch electric parameter signal into standard analog output, with four-channel (two-channel) switching input / two-channel switching output.

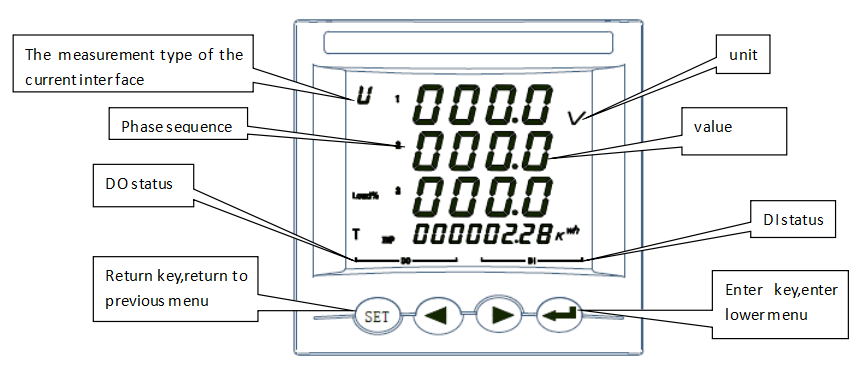

Based on different requirements, by keys on the faceplate, electric parameters for transformation ratio, alarm, communication etc. can be set up and controlled.
Charactristics
Main Functions

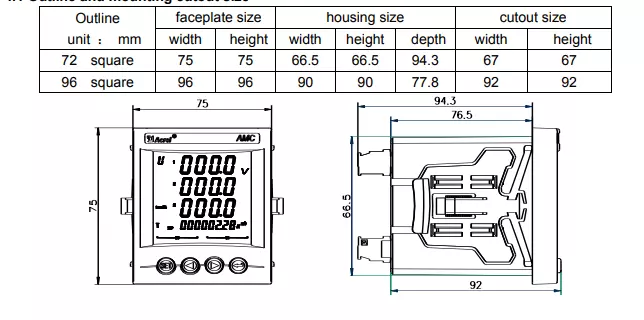

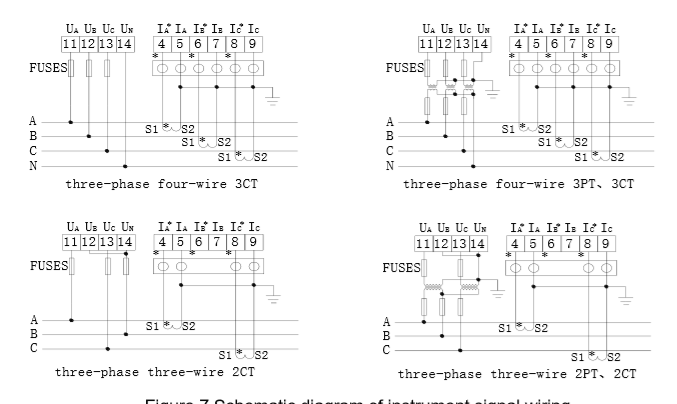

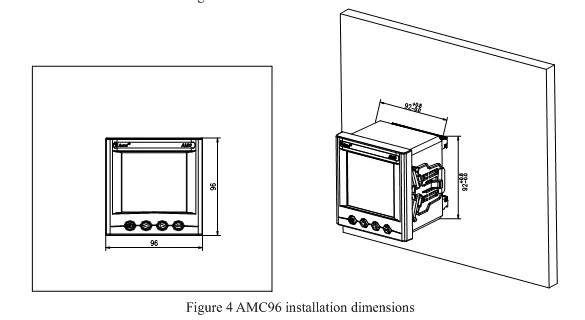

Dimensions and Wirings
Datasheet
