YR-GP stucco gypsum powder production line / 28years stucco gypsum powder production line

It needs about 8-10 containers(40 feet) to delivery the machine.

Natural gypsum generally includes dihydrate gypsum and anhydrous gypsum. In order to get the valuable materials, generally, we get semi hydrated gypsum through heating the dihydrate gypsum. Here is the

process:

                      Heating

CaSO₄·2H₂O     →     CaSO₄·1/2H₂O+3/2 H₂O↑

The calcined semi hydrated gypsum powder can widely be used for plasterboard, decoration board, gypsum block, stucco gypsum, and molding gypsum, etc.

Features of stucco gypsum powder production line

1. Easy to form a complete equipment.

Except the special parts for the production line, the other parts can use the famous standard equipment. Control the quality in strict accordance with the ISO9001. The key electronic components use the Siemens brand.

2. The scale of stucco gypsum powder production line and the area of the plant is moderate and match the automation and the mechanization of the production line, which is easy to manage.

3. Less investment and mature production technology. The production cycle is short and the customers will benefits very quickly.

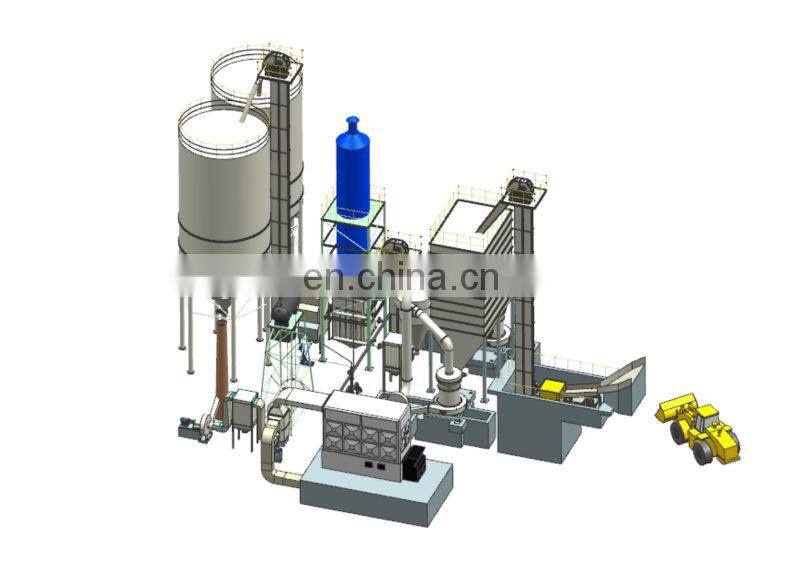

Process of stucco gypsum powder production line

1. Production capacity:12,000~300,000tons /per year

2. Finished Product related parameters

1) Product quality:  reach or exceed the china (GB9776-88<building gypsum>) requirements.

2) Bending strength  (have direct relations with raw material) :  1.8 Mpa;

    Compressive strength: 3.0 Mpa.

3) Main relative composition:

    Hemihydrate gypsum content: >=80% adjustable

    The content of dihydrate gypsum: < 5% adjustable

    Soluble anhydrous gypsum content: < 5% adjustable

4) Initial setting time: 3 ~ 8 min adjustable;

    Final setting time: 6 ~ 15 min adjustable.

1. Coarse crushing system for stucco gypsum powder production line

The crushing system can crush large ore from mine mining to an average granularity of 25 mm by one time, is an ideal version of traditional ways of two and three stage crushing.

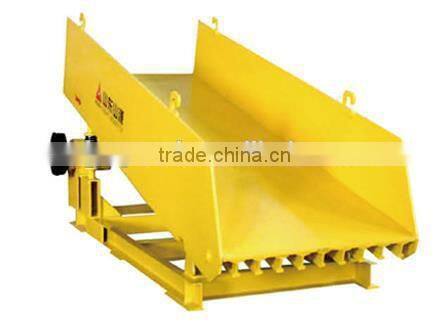

1) Vibrating feeder

2) single-stage crusher for stucco gypsum powder production line

This series of single-stage crusher is a new generation of efficient crusher designed and manufactured on the basis of the Germany advanced technology introduction, with optimized design and improved structure.

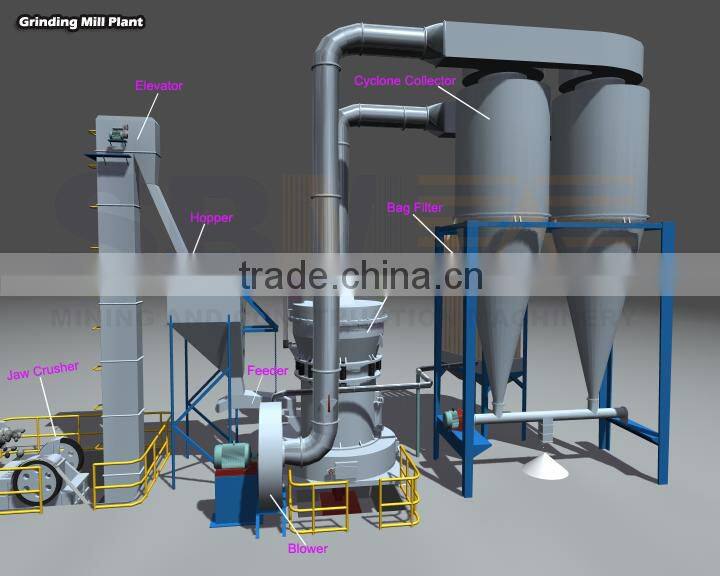

2. Grinding system for stucco gypsum powder production line

Unique design of intilted air channel. This design ensures that materials entering the shell will fall in the grinding chamber along the slope. Arranger adopts enclosed gear box and pulleys, with stable and reliable operation.

3. Calcination system-boiling furnace technology for stucco gypsum powder production line

In the production and processing of gypsum powder, drying and dewatering are the key links and also the hardest procedure to master. We have developed a new generation of dewatering equipment which can meet the production requirements of various gypsum powder - boiling furnace.

 4. Finished products packaging and storing system for stucco gypsum powder production line

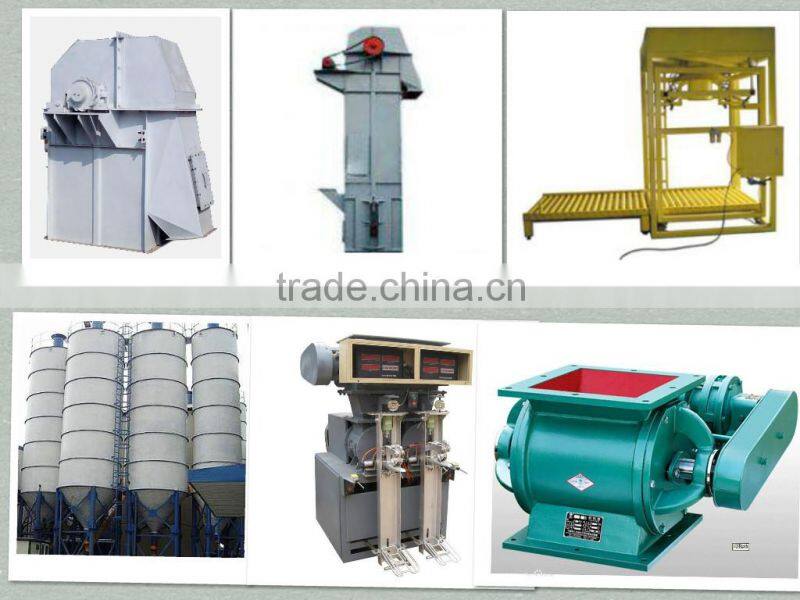

Composed of the elevator, impeller feeder, finished product warehouse, packing machine and other equipments.

5. Heat transfer oil furnace heating system for stucco gypsum powder production line

There are two kinds of process of the heat transfer oil boiler burner:

1) Chain furnace

2) Boil/gas heat carrier boiler of stucco gypsum powder production line

The boiler has a compact structure, safe and reliable, simple operation, rapid installation, low pollution, low noise, widely used in petroleum, chemical, pharmaceutical, textile printing and dyeing, etc.

6. Dust removal system of stucco gypsum powder production line

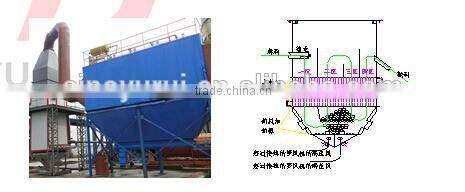

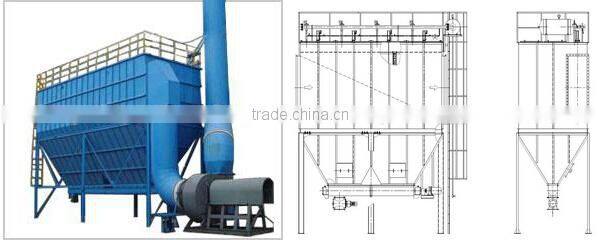

Pulsed bag precipitator with air box is mainly used for crusher, grinding machine, boiling furnace, packing machine, and the dust collecting.

7. Electrical control system of stucco gypsum powder production line

The electrical control system uses advanced DCS (distributed control system), and PROFBUS-DF fieldbus technology, centrally controlling various scattered equipments.

24 hours professional service, being normalized, valued, serialized, differentiated, and beyond our contract all the time, Shandong Yurui provides the reliable projects for you.

1. We offer technical support until the workers know how to operate.

2. We offer the technology data and relative files of stucco gypsum powder production line . The operating instruction will go to the customers with the equipment.

3. We provide lifelong guidance of stucco gypsum powder production line .

4. Excellent easy-broken parts support for buyers. Easy-broken parts guarantee for one year.

FAQ for stucco gypsum powder production line

Warranty : Excellent easy broken parts support for buyers. Easy broken parts guarantee for one

year.

Trainning: The training is free of charge , and our engineer will be on duty to train your worker.

Installation&commissioning staff: 4-12 persons(adjustable according to the degree of automatic )
