Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Nonwoven Machine > Kn95 Mask Machine Semi Automatic Machine
US$ 109,000 - 123,760
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
OYD
Place of Origin:
Shandong, China
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fully Automatic N95 Kn95 Ffp2 Face Making Mask MachineUS$ 40,000 - 60,000MOQ: 1 Set -
Full Automatic Disposable Protective N95 Face Mask Machine Production LineUS$ 160,000 - 160,000MOQ: 1 Set
-
Manufacturer Supply Maoxin Organic Machine Waved Surgical Mask Machines With Low PriceUS$ 60,000 - 60,000MOQ: 1 Set
-
New Design Dust Cup Nonwoven Disposable Blank Making Ultrasound Welding Mask Machine With High QualityUS$ 60,000 - 60,000MOQ: 1 Set
-
Automatic Ear-Loop Type N95 Non Woven Making Machinery Ultrasonic Welding Machine Mask Nonwoven With Ce CertificateUS$ 60,000 - 60,000MOQ: 1 Set
Brand Name
OYD
Place of Origin
Shandong, China
Certification
CE
Warranty
1 Year
Weight
2tons
Dimension(L*W*H)
8700x1600x2200mm
Condition
New
Voltage
220V, 220V
Automatic Grade
Automatic
Product Description
Equipment Introduction
This is a fully automatic machine for the production of folding mask production lines. Using ultrasonic technology to weld 3 to 6 layers of PP non-woven fabric, melt-blown fabric, activated carbon and filter materials. It is an all-in-one fully automatic folding mask production line for welding, folding, edge sealing, rolling and cutting nonwoven fabrics. It can process 3M 9001/9002 and other folding masks. Depending on raw materials used, the masks produced can meet different standards such as FFP1/FFP2/KN95.
No manual operation is required during the whole process, which can minimize the waste of materials and effectively ensure the quality of the masks produced. All products are produced by mechanization.
This is a fully automatic machine for the production of folding mask production lines. Using ultrasonic technology to weld 3 to 6 layers of PP non-woven fabric, melt-blown fabric, activated carbon and filter materials. It is an all-in-one fully automatic folding mask production line for welding, folding, edge sealing, rolling and cutting nonwoven fabrics. It can process 3M 9001/9002 and other folding masks. Depending on raw materials used, the masks produced can meet different standards such as FFP1/FFP2/KN95.
No manual operation is required during the whole process, which can minimize the waste of materials and effectively ensure the quality of the masks produced. All products are produced by mechanization.

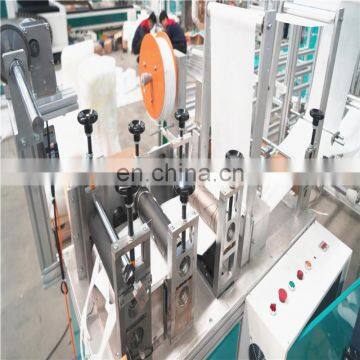

Details Images
Product Name | KN95 Fully Automatic Mask Machine Production Line | ||||||
Machine size | 8700（L）x1600（W）x2200（H）mm | ||||||
Voltage | 220V | ||||||
Equipment parameters
EQUIPMENT DETAILS DIAGRAM
Feeding device
Adopt active unreeling, automatically unreeling according to the position of tension roller.
Nose bridge welding
Nose bridge welding module: Including nose bridge unreeling, nose bridge leveling, fixed-length conveying, cut, welding.
Fabric composite seam-weld: Adopt ultrasonic welding head and steel welding; the roller depth of parallelism and positional accuracy is adjustable, welding system has a cooling function.
Ear band welding
Adopt ear band (not headset), entire fabric feeding, after the control of drive and tension, fixed length cutting, adjustable length of the ear band, using ultrasonic welding
Molding machine
The molding machine includes folding unit, cutting unit, welding unit and puller drive unit. Folding unit: Adopt adjustable triangle plate, height and angle can be adjusted to ensure that the mask is folded and neutral. Cutting unit: knife pad, pressure can be adjusted; materials: high-speed steel. Molding welding unit: Using ultrasonic welding, the welding is firm and the pattern is clear; the pressure of the welding system is adjustable, it has a cooling device, and the technical parameters are adjustable.Puller drive unit: The servo motor is used to control the main driving roller to drive the cloth, which runs smoothly and the pressure is precisely adjustable.
Feature
1. The frame is made of aluminum alloy and bright chrome steel, which is light and beautiful
2. Automatic counting can effectively control production efficiency and production schedule.
3. PLC control system, simple and fast operation, stable and reliable operation
4. Pull the tube into the material and position more accurately, which can control the
width of the raw material to a minimum and save costs.
5. Uniform control of finished product length and size, deviation ± 1mm, can effectively
control finished product length.
6. High degree of equipment automation, low requirements for operating staff. Just
need to load and sort the finished product.
7. The automatic ultrasonic welding wheel is made of imported alloy steel Cr12, which
prolongs the service life of the mold and is durable
2. Automatic counting can effectively control production efficiency and production schedule.
3. PLC control system, simple and fast operation, stable and reliable operation
4. Pull the tube into the material and position more accurately, which can control the
width of the raw material to a minimum and save costs.
5. Uniform control of finished product length and size, deviation ± 1mm, can effectively
control finished product length.
6. High degree of equipment automation, low requirements for operating staff. Just
need to load and sort the finished product.
7. The automatic ultrasonic welding wheel is made of imported alloy steel Cr12, which
prolongs the service life of the mold and is durable
Our factory
Our factory
We are a responsible manufacturer of machines in China since 2008. With 66000 sqm land and 500 workers in Jinan city Shandong Province. Now we are producing the machine by ourselves exactly. So both for the price and delivery time, we can be ensured for you. For 12 years' experience in the production of machines, we always put the quality and after-sales service at the top position.
