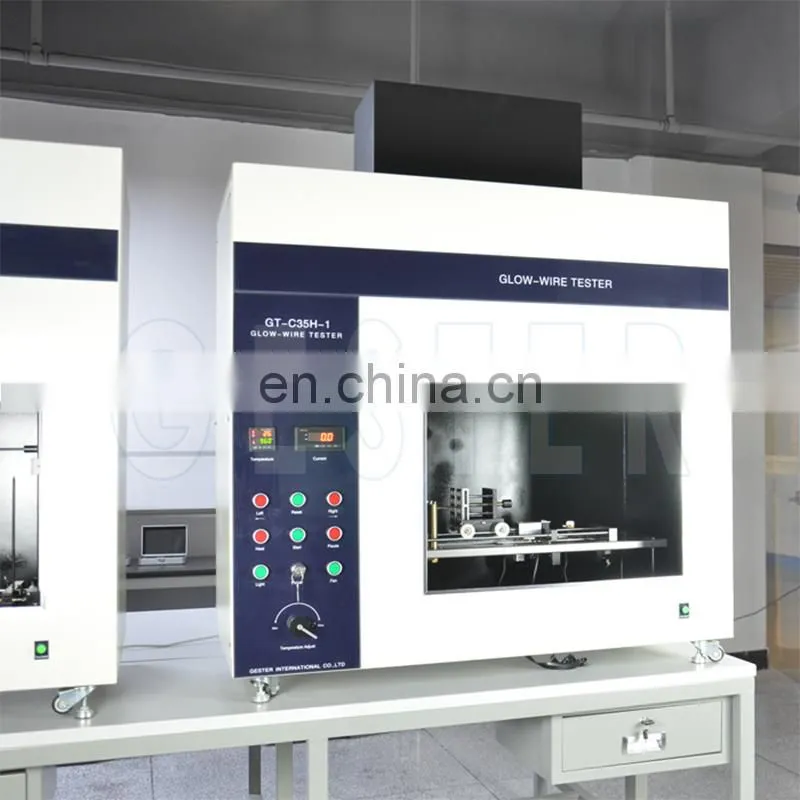

Lcd Display Glow Wire Test Apparatus Glow Wire Tester
Application:
GT-C35H glow wire tester is the latest release of the flaming test equipment, with imports of touch-screen controller and instrument.
New test circuit, stable performance,reliable,simple and easy to operate. wide range of parameter adjustment.Apply to the latest test standards IEC60695,GB5169, etc.
Key Feature:
1.Outdoor grade powder coating technology, high texture, no discoloration.
2.Stainless steel construction with black interior and large sliding window for easy viewing
Full import control components, safe and reliable.
3.Wireless remote control timing device.
4.Special high-quality stainless steel clamps.
5.Advanced temperature control ang measuremtnt system.
6.LCD Display, Programmable controller, touch-screen control system
Product Images:
Key specification:
Model NO |
GT-C35H |
Glow wire |
Φ4mm Ni/Cr(80/20) |
Thermocouple |
Φ0.5mm K type |
Sample pressure |
1.0N+/-0.1N |
Glow temperature |
150degree ~1000 degree (may adjust) |
Sample move speed |
10mm /s~25mm /s(may adjust) |
Outside dimension |
1120x600x1020mm ( L x W x H) |
Apply temperature time |
0.01s~99.99s(may adjust) |
Continue burning time |
0.01s~59m59.99s |
Start burning time |
0.01s~59m59.99s |
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our
production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by GESTRE Instruments Co Ltd. Besides,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team
will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product
use training, each of our product provide video training to show you how to install & operate. We can arrange engineer
to train the operation of equipment to customer’s company when you need. Main clients : SGS, BV and Intertek. Our
products are widely recognized and trusted by users.
