High Quality Elmendorf Textile Tear Test Machine Gester Elmendorf Tearing Strength Tester
Application:
This Elmendorf Tearing Tester is designed for tearing resistance of textile, non-woven fabric, paper, paper board, thin film, ventilation tape, metal sheet material and etc.
Key Specification:
Range of Tearing Force |
16N / 32N / 64N |
Accuracy |
≤±0.2% Full scale |
Tearing Length |
43mm |
Incision Length |
20±0.2mm |
Dimensions |
560 x 420 x 480mm (L x W x H) |
Sample clamping methods |
Pneumatic clamp |
Operating power |
AC 220V 50/60HZ 100W |
Weight |
40kg |
| Textile | GB/T3917.1, ASTM D1424, DIN 53862, ISO13937-1, ISO4674-2, ISO9290, M&S P29, NF G07-149 |
| Paper |
GB/T455, APPITA P400, ASTM D689, BS 4468, CSA D9, DIN 53128, EN 21974,ISO 1974, JIS P8116, PAPTAC D9, SCAN P11, SNV 198482, TAPPI T414, UNI 6444 |
| Plastic | GB/T11999, ASTM D1922, ISO6383-2, JIS K7128-2 |
| Non-woven | ASTMD5734 |
| Standards accessories | Pendulum B ( 32N) 1pc |
| Pendulum C (64N) 1pc | |
| Sample Template 1pc | |
| English operation software 1pc | |
| Cable connect with PC 1pc | |
| Optional accessories | Air compressor 1pc Optional |
Feature:
1.Advanced calculation methods make sure precision test & good repetition.

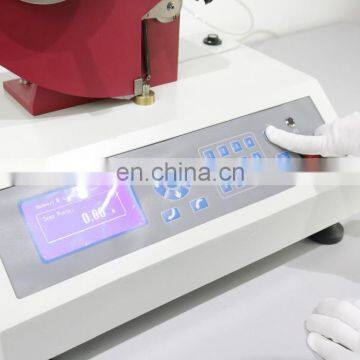

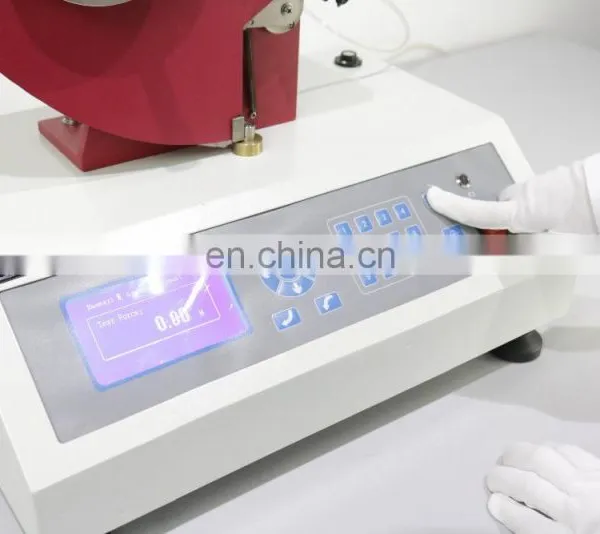

2.Microcomputer system, can do auto test, calculate, analysis result, print test report,
upload the test data.
3.Humanity operation system, Chinese and English operation interface with easy & convenience methods.
4.Can look up all the datum & statistical result in mainframe freely.
5.Test unit can convention between N, gf, cN and lbs, suitable for different standards requirements automatically.

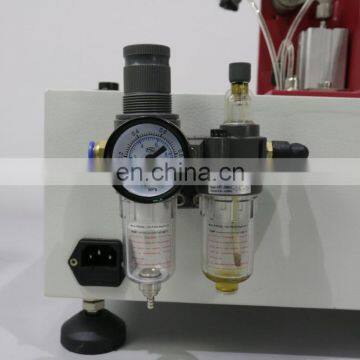

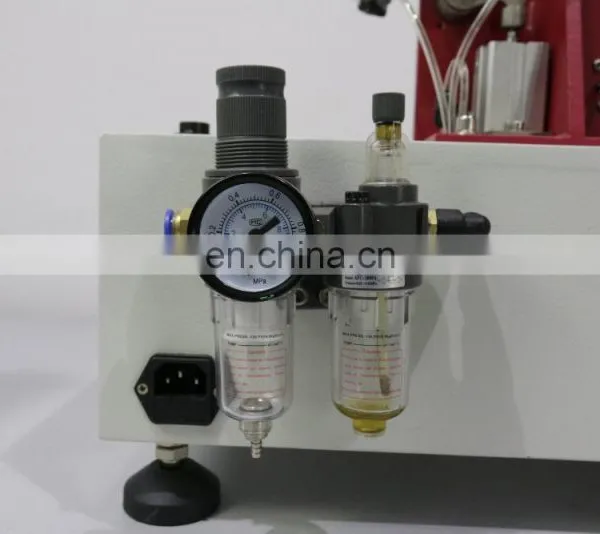

6.Pneumatic sample grips and pendulum bob released to make sure equal clamping force.
7.Cut sample automatically, making sure same shape of notch, reducing operation strength.

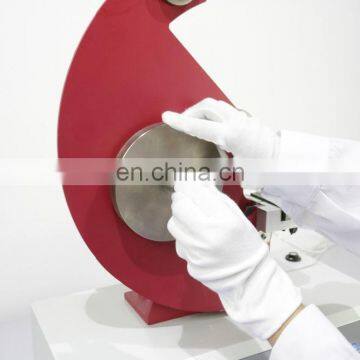

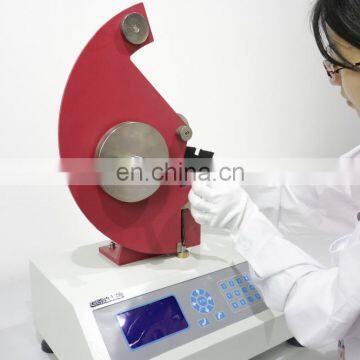

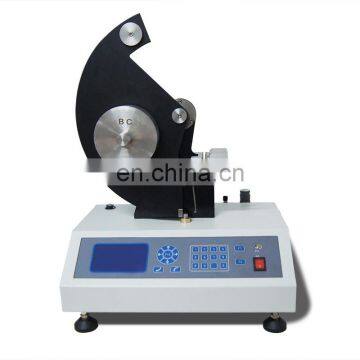

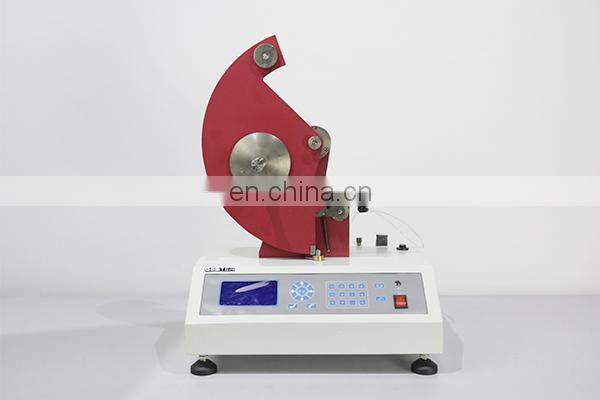

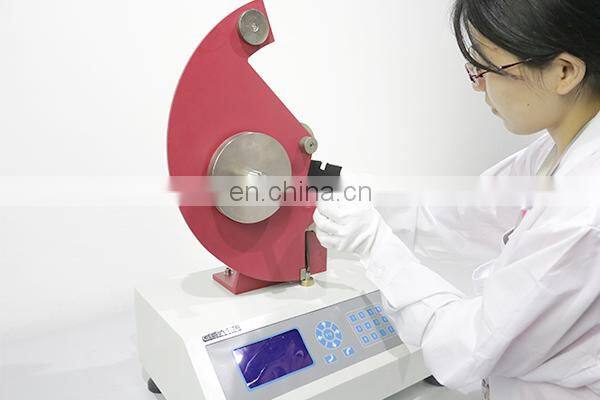

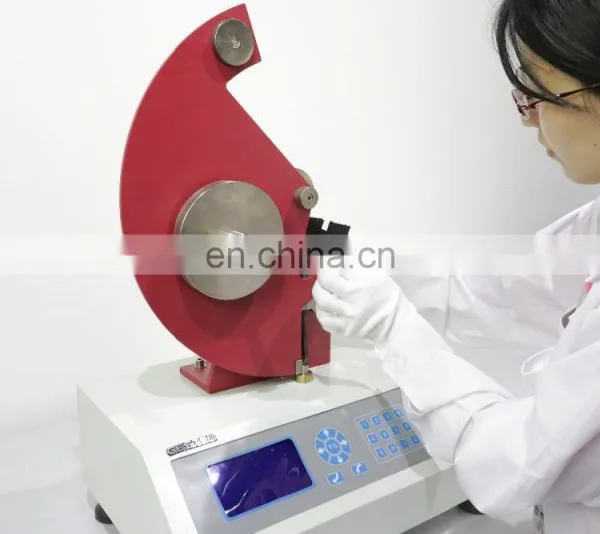

Product Image:
Application:
All kinds of materials can be tested on the Electronic Elmendorf Tearing Tester
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our
production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by GESTRE Instruments Co Ltd. Besides,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team
will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product
use training, each of our product provide video training to show you how to install & operate. We can arrange engineer
to train the operation of equipment to customer’s company when you need. Main clients : SGS, BV and Intertek. Our
products are widely recognized and trusted by users.
♥ More information welcome to contact us now!
And welcome to our company! We display more new design in our showroom.
