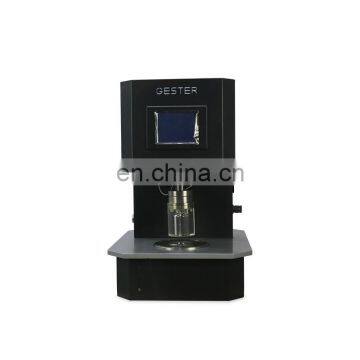

Textile Fabric Mullen Bursting Strength Tester
Application
Textile Fabric Mullen Bursting Strength Tester is applied to determine the bursting strength test and distension at burst of woven, knitted and non woven fabrics, papers and boards by the application of hydraulic load under a rubber diaphragm.1.This machine use hydraulic method, meet multinational standards and equipped with several changeable test clamp.
2.The simple interface touching screen controller is easy and simple to handle.
3.The specimen was clamped firmly by the pneumatic force which can also save effort.
4.The test cover was made up of high-transparent glass with LED light inside which can observe the specimen easily.
5.The machine can induct the burst automatically which is much more sensitive and reliable.
6.The bursting distension can go up to 75mm.
7.The AC servo drive system with low noise and wide range of applications.
8.4 Test Methods: Constant Rate Bursting, Constant Expansion, Constant Pressure and Constant Time Bursting.
9.The tester bring saving and printing functions and support on-line operation.
10.Provide on-line interfaces, professional detection software which can be used to analysis testing result.
Key Specification
Model | GT-C12 | ||
Testing range(1%~100%) | Model | Model -2 | Model -10 |
Range | 2.00Mpa | 10.000Mpa | |
The min. Division value | 0.002Mpa | 0.003Mpa | |
Test area | 7.3 cm2 (Φ30.5mm), 10 cm2 (Φ35.7mm), 50cm2 (Φ79.8mm)100 cm( Φ3112.8mm) can be option | ||
Thickness of elastic membrane | ≤2mm | ||
Pressure speed | 20ml/min - 600ml/min | ||
Maximun expansion rate | 75±0.02mm | ||
Testing units | Kpa, kgf/ cm2, atm, mmHg, lb/in2 free transition | ||
Test method | Constant busting, pressure and expansion rate | ||
Output | Printer ,display output, and can be connected to the computer | ||
Dimension | 500×450×700mm | ||
Power supply | AC20V 50Hz 200W | ||
Weight | 200Kg | ||
Standards | ISO 13938.1, FZ/T 60019, FZ/T 01030, ASTM D3786, BS 4768, WOOLMARK TM 29, WSP 30.1, JIS L 1018.6.17 | ||
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our
production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by GESTRE Instruments Co Ltd. Besides,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team
will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product
use training, each of our product provide video training to show you how to install & operate. We can arrange engineer
to train the operation of equipment to customer’s company when you need. Main clients : SGS, BV and Intertek. Our
products are widely recognized and trusted by users.
♥ More information welcome to contact us now!
And welcome to our company! We display more new design in our showroom.
