Zam Zam Water Packaging Machine/Water Filling Plant

Specifications

1.Capacity(B/H):5000
2.Washer-Filler-Capper:14-12-5
3.Bottle type(ml):250-2500

Automatic 3 in 1 Mineral Water Filling Machine

   This Automatic 3-in-1 Wash-filling-capping Water Filling Machine is used to produce bottled mineral water, purified water, flavored water, alcoholic beverage and other non-gas Liquid. This Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from 250ml-2500ml meanwhile few changeover is needed. This series of filling machine capacity varies from 3000BPH to 32000BPH.

   Our water filling machine is designed for the low/middle capacity and small factory. It features low water and low electricity consumption, small space occupation as well as easy operation. At the same time It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine. it can perfectly complete the function of automatic washing, filling and capping, which has been aproved by our clients as technical matured and quality product.

Characteristic:
1.intelligent contact screen, human design, easy operation.
2.Imported filling valve, avoiding drop leaking, accurate filling quantity.
3.Program logic controller(PLC), easy for changing size or modifying parameters.
4.Pneumatic elements are all imported, stability and reliability.
5.Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters
6.Solely and specially-designed whole lifting device, easy governing to meet the needs of all kindsof container packing
7.Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
8.Pneumatic executive control valve, high efficiency and safety. Each flow passage can be separately governed and cleaned.
9.Close positioning design, easy governing, suitable for packing of all sizes of bottles.
10.The whole machine is designed according to requirements of buyer's.

 Automatic 3 in 1 Water Filling Machine

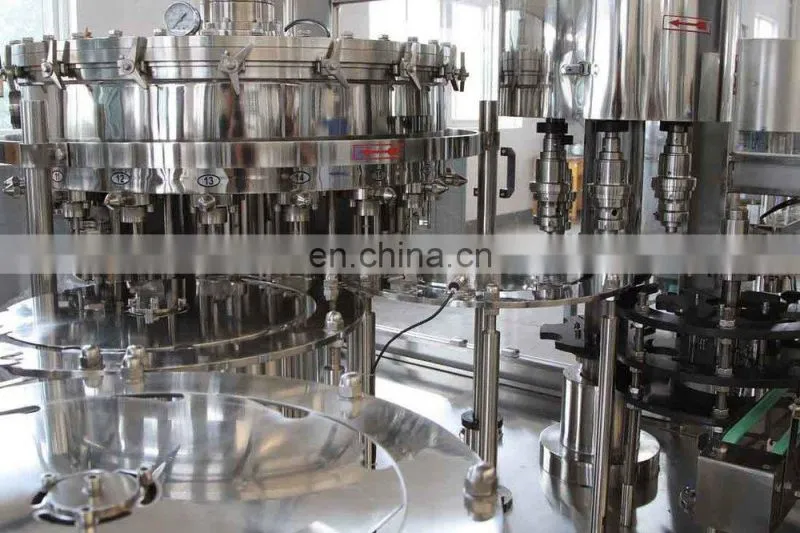

Automatic Filling Section

Automatic Capping Section

 Air Conveyor System

Filled Bottle Conveyor

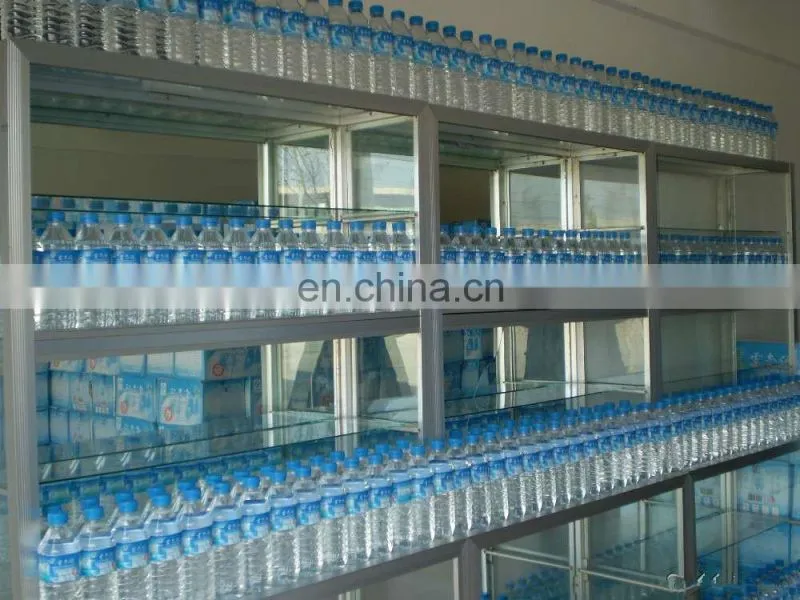

Products Samples

If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, we will provide long-term technical assistance.

Workers must operate the machines according to the design of the machine. Faygo Machinery will not be responsible for accidents which are caused by improper operation of workers.

Faygo Union, Do Good Machine, Be Good Person.
