PVC Ceiling Panel Machine for Plastic Panel Wall Making Machine

Window Profile Extrusion Machine

PVC Panel Ceiling Wire Cable Trunking Machine

Machine Configuration:

Detailed Images:

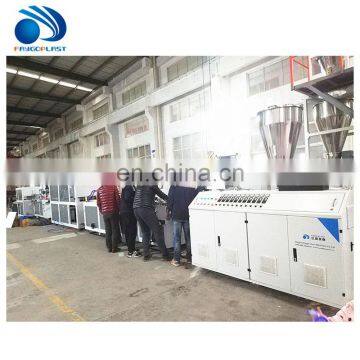

This production line adopts international technology, uses PE, PP, PVC, PS or other plastics compounding with nature fiber powder as the raw material, employs high efficiency conical twin screw extruder ,mould .vacuum calibration table ,tractor and cutter.
The profile products are popularly used as the building board, partition wall aboard, plank on storage rack and furniture board, etc.

SJSZ 55/120 Twin-Screw Plastic Extruder, Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer Thickness:0.5~0.7mm, Surface Rigidity:800~900HV. Main Electrical

Equipment: Contractor: SIEMENS, Air-Breaker: Schneider, Temperature controller: OMRON.

YF240 Calibration Table, Calibration Table Length: 4Meters, Table fore-and-aft Move: Adopt 1.5KW Gearbox Speed Reducer Motor Adjusting Distance equal to 800mm. Table Adjusting: Up-and-down adjusting adopt worm reducer & screw adjusting.

QYQG240 Haul-offs and Cutting Machine Unit, Haul-off Bracket Length: 1200mm, Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas cylinder, Cut Motor Power: 0.75KW*1PC.

Stacker Length: 3 Meter, Stacking Mode: Stacking by Gas Cylinder, Adopt Limited Switch Send out Cutting Signal.

Punching machine, Motor power: 3kw, Punching speed: 4-5m/min, Trucking conveying: Adopt cylinder.

Company Show:

Packing&Delivery:

Packaging Details: wooden case or PE film

Delivery Detail: 60 working days
