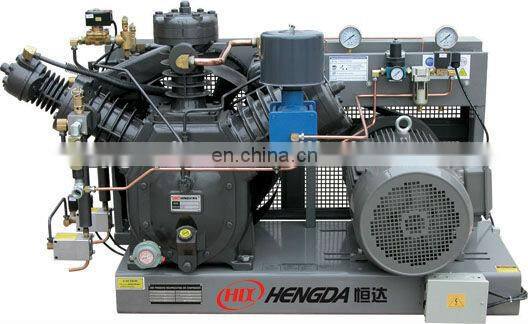

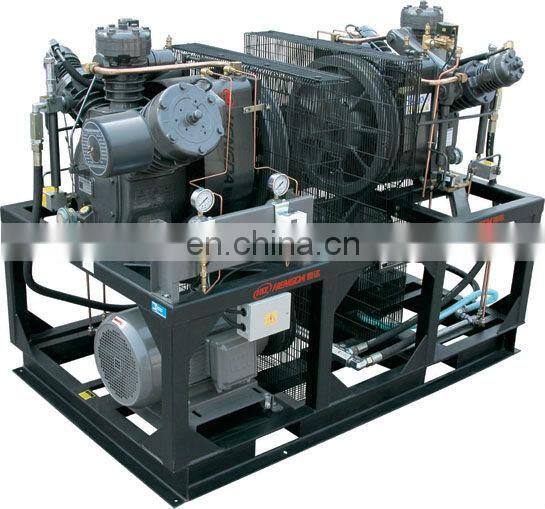

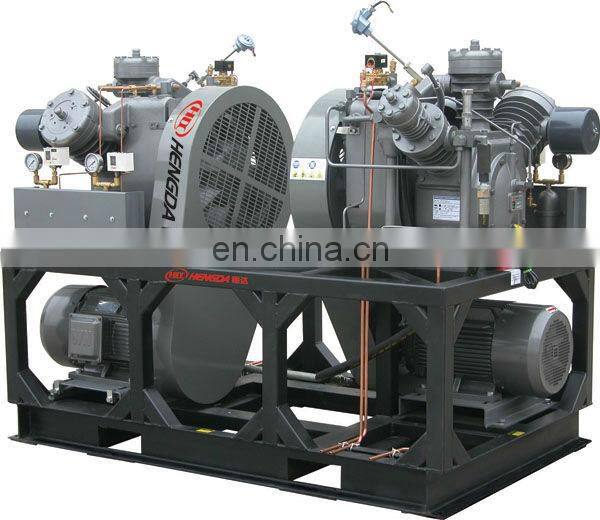

40 Bar Piston Air Compressor

item

Configuration item

Manufacturer

1

piston compressor main components

Nanjing Hengda

2

Automatic splashing lubrication system

Nanjing Hengda

3

Air cooled middle cooler

Nanjing Hengda

4

Oil damping (between stages, output) shockproof pressure gauge

Domestic high quality

5

Safety valves between stages

Domestic high quality

6

Air cooled after cooler

Nanjing Hengda

7

Automatic drain valve

Domestic high quality

8

Low oil level protection device

German imported and installed in Hengda

9

Output pressure switch

Schneider

10

Electric control box

Nanjing Hengda

11

Imported ac contractor, circuit breaker, thermal relay, etc

Schneider, etc.

12

Output check valve

Nanjing Hengda

13

timer

Domestic high quality

14

Oil sight glass

Nanjing Hengda

15

Low oil level protection switch

Nanjing Hengda

16

PLC control system CPU

Siemens

17

Color touch screen

Siemens

18

Analog, input and output module

Siemens

19

motor

Siemens

Model

Air capacity

(M3/min)

Working pressure

(Bar)

Power(Kw)

Speed(r.p.m)

Weight(Kg)

VH-0.7/30

0.7

30BAR

7.5

680

310

WH-1.0/30

1.0

11

600

430

WH-1.2/30

1.2

15

760

450

WH-1.5/30

1.5

18.5

790

520

WH-2.0/30

2.0

22

670

610

WH-2.35/30

2.35

25

760

620

2-WH-3.0/30

3.0

2*18.5

790

1150

3-WH-3.6/30

3.6

3*15

700

1580

VH-0.17/35

0.17

35BAR

2.2

660

110

VH-0.65/35

0.65

9.0

605

420

WH-1.1/35

1.1

15

900

475

WH-2.0/35

2.0

22

670

615

WH-2.2/35

2.2

25

735

600

VH-0.3/40

0.3

40BAR

5.5

500

290

WH-1.0/40

1.0

11

790

470

49SH-2.6/40

2.6

25

625

900

49SH-3.0/40

3.0

30

695

920

2-49SH-6.0/40

6.0

2*30

695

2100

4-WH-4.0/40

4.0

4*11

790

2400

6-WH-6.0/40

6.0

6*11

790

3600
