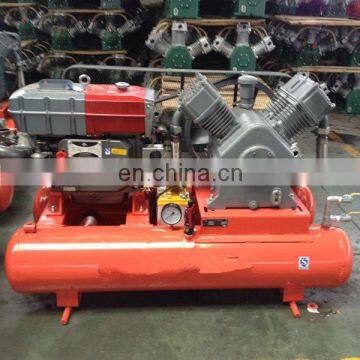

4M3/MIN,5BAR Diesel Air Compressor
US$ 500 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hengda
Place of Origin:
Jiangsu, China
Model Number:
HV-4.0-5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10 Bar ,20HP Air CompressorUS$ 1,900 - 2,000MOQ: 1 Set -
Aerzen Air End,55kw Screw Compressor Air EndUS$ 1,900 - 2,000MOQ: 1 Set
-
High Quantity Oil Free Screw Air CompressorUS$ 2,800 - 3,000MOQ: 1 Set
-
55KW/75hp Rotary Screw CompressorUS$ 1,900 - 2,000MOQ: 1 Unit
-
55scf Screw Air CompressorUS$ 1,900 - 2,000MOQ: 1 Unit
Brand Name
Hengda
Place of Origin
Jiangsu, China
Model Number
HV-4.0-5
Certification
ISO/CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
530kg
Dimension(L*W*H)
1960 * 900 * 1250(mm)
Voltage
380V(according to customer)
Condition
New
air compressor for mining , heavy duty air compressor, diesel air compressor
1.Main data of air compressor
item |
Model |
HV-4.0/5(electric or diesel driving) |
1 |
Cylinder diameter(mm)×cylinder no. |
120×3 |
2 |
Stroke (mm) |
100 |
3 |
Rated pressure(Mpa) |
0.5 (75psi) |
4 |
Rated speed (r/min) |
970 |
5 |
capacity ( m3/min) |
4.0(140cfm) |
6 |
Volume of tank (L) |
250 |
7 |
Displacing valve |
Sweden imported thick stainless steel |
8 |
Cylinder structure |
Integral suppressed aluminum alloy |
9 |
Lubrication method |
Oil needle splash |
10 |
Cooling method |
Air cooled |
|
11 |
Diesel motor |
ZS1125, 20KW or ZS1130,23kw single cylinder diesel |
12 |
Diesel motor driving method |
Automatic clutch + V belt transmission |
|
13 |
N.W (kg) |
530 |
|
14 |
G.W (kg) |
640 |
|
15 |
Dimension(L * W *H) (mm) |
1960 * 900 * 1250 |
2.Specification of other diesel piston compressor
