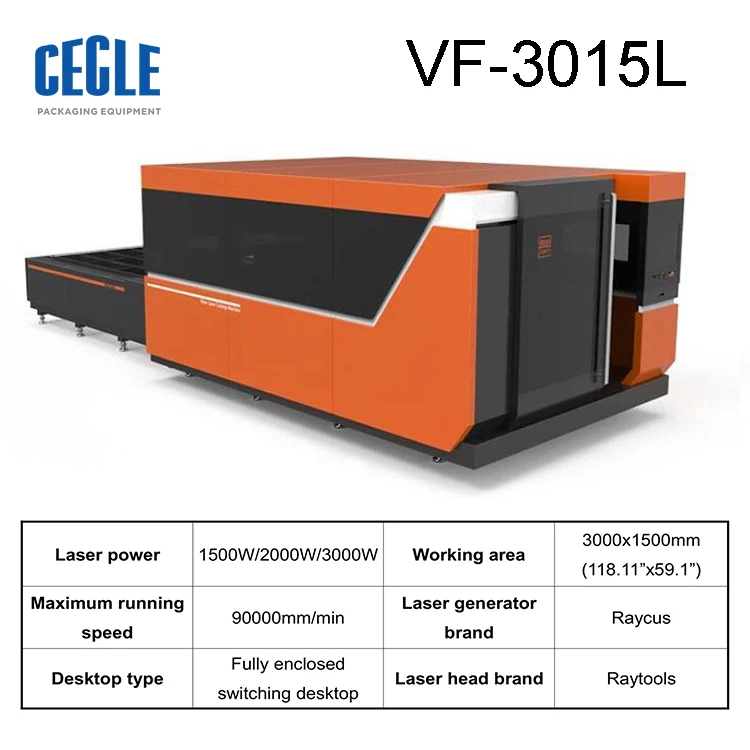

VF-3015L RAYCUS Fully Enclosed Intelligent CNC Metal Laser Cutting Machine With Switching Desktop

Wenzhou T&d Packing Machinery Factory
US$ 56,000 - 56,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
T&D
Place of Origin:
Zhejiang, China
Certification:
ce
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name T&D
Place of Origin Zhejiang, China
Certification ce
Condition New
Product Description

VF-30 optical fiber laser cutting machine Introduction

The VF-30 numerical control fiber large-format laser cutting machine adopts the gantry structure type with large section and high rigidity frame beam and special rail base; the double motor double-sided rack and pinion drive has the characteristics of stable structure, good rigidity and high speed. The large-section and high-rigidity frame beam has the characteristics of light weight and dynamic response. Transmission components such as gearbox, guide rail and rack and pinion are all well-known brands both at home and abroad. The gantry large-section high-rigid frame structure and the rack-and-pinion transmission ensure the transmission. High-speed positioning, fast dynamic response and good stability of the device. VF-30 CNC fiber large-format laser cutting machine adopts well-known brand fiber lasers at home and abroad, which can meet the cutting requirements of carbon steel, stainless steel and other metal plates, especially medium and thick plates, providing users with powerful cutting ability and Efficiency, configuration of professional laser numerical control system, making VF-30 CNC fiber large-format laser cutting machine become an advanced large-format laser cutting machine integrating high stability, high precision, high power, high performance and high speed.

Scope of Application:

Products suitable:Sheet metal processing, rounding, punching, precision cutting, suitable for cutting carbon steel, stainless steel, aluminum alloy, copper alloy, galvanized sheet and other metal materials processing.

Features:

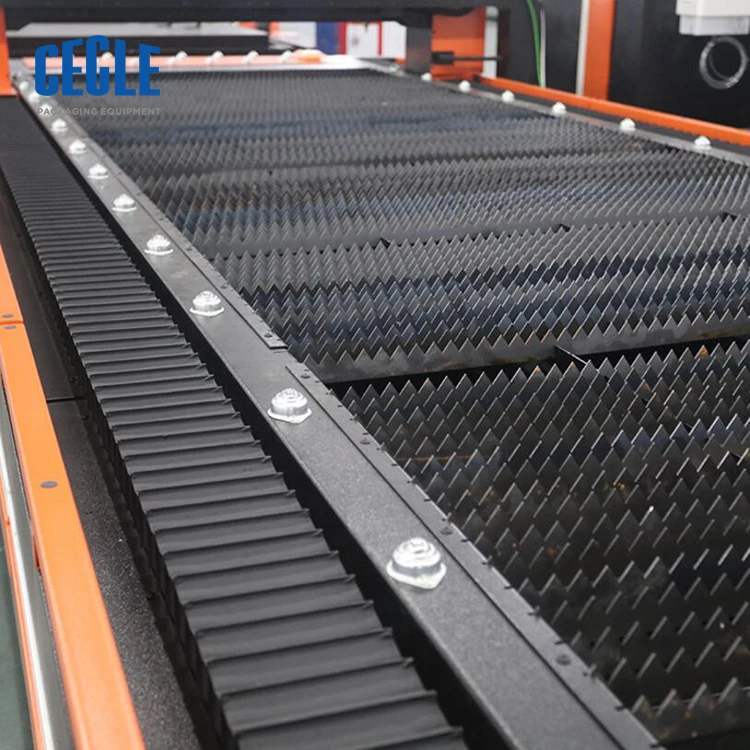

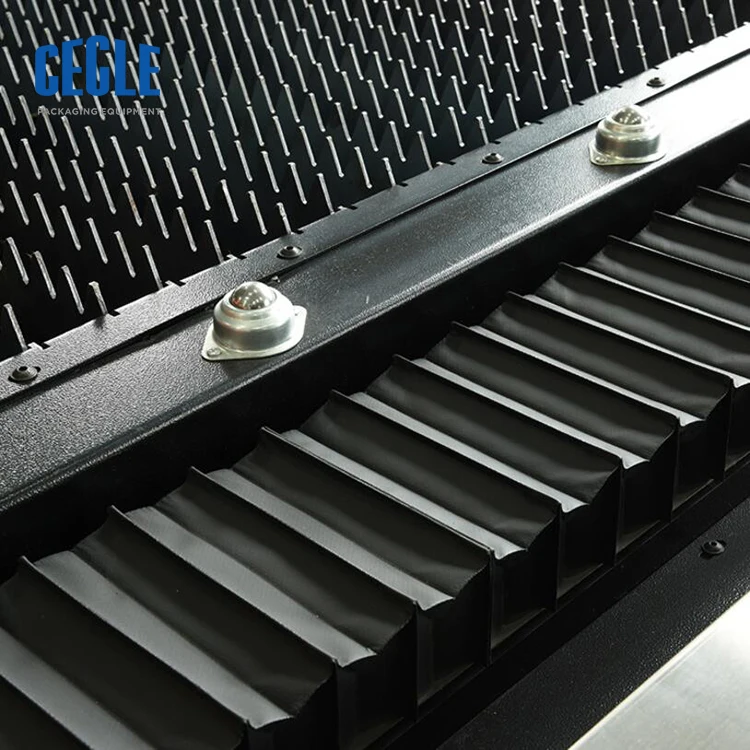

1.Servo double drive gantry structure: bridge gantry structure, rack guide rail transmission,centralized lubrication device, easy maintenance;

2.Stable and practical: the reinforced welded bed body, the vibration aging stress can be eliminated by high temperature tempering, and the deformation difference of the machine can be controlled at + / - 0.02mm.

3.Industrial aesthetic appearance design: exported to European and American standards, aesthetic appearance design, simple atmosphere;

4.The operation is simple and easy to use: the numerical control laser cutting system used by over 20,000 users is the world's leading technology. The operation is flexible and simple, with the function of laser power adjustment, which can guarantee the cutting quality and the operation is simple and convenient.

5.High-quality cutting: the optical fiber automatic focus plane cutting head can be effectively and accurately adjusted to the required cutting focus according to different equipment requirements of customers, so as to achieve better cutting effect;

6.High efficiency material saving: it is used for cutting metal sheet of standard specification, saving time and material. 7.Fiber laser: adopt the laser, stable and reliable, performance guarantee.


Parameters:

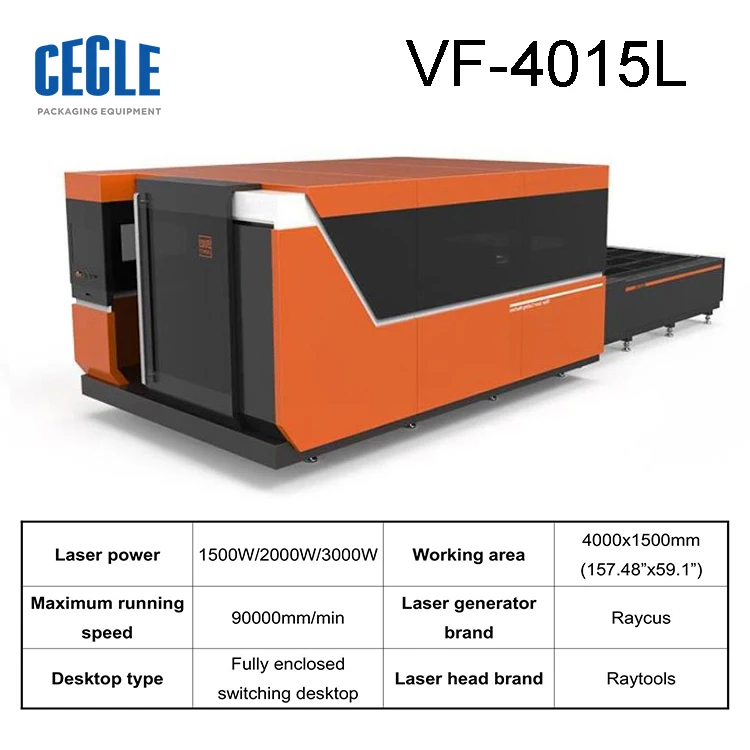

Model
VF-3015L
VF-4015L
Working size
1500*3000mm(Switch desktop)
1500*4000mm(Switch desktop)
Maximum running speed
90000mm/min
Laser type
Fiber laser
Laser wavelength
1070~1080nm
Machine tool positioning accuracy
±0.03mm
Repetition accuracy
±0.03mm
Cutting thickness
0.2~20mm(according to the material and the laser power)
Laser power
1500W/2000W/3000W
Voltage
380V 50Hz/60Hz
Maximum load of working platform
1000KG
1200KG
Machine dimensions
8500x2800x2100mm
10000x2800x2100mm
Machine weight
4000KG
4500KG
Cooling method
Water cooling
Detailed Images
Raycus Fiber Laser
The fiber laser has the characteristics of large heat dissipation area, good beam quality and smal volume, and is especially suitable for high-speed precision metal cutting. Fiber lasers have the following advantages:
1.For the optimum wavelength of metal processing and the best beam quality, fiber lasers have the lowest cost for cutting.
2.It is maintenance-free and has a long service life, which is more than 10 times longer than the service life of CO2 glass tubes.
3.Lasers have high stability and greatly reduce the requirements for laser quality monitoring during operation.
4.Ultra-low cost, the laser consumes only 1.5~6 degrees per hour; it can blow air to cut various metal sheets.
5.High performance, imported original packaged fiber laser, stable performance, service life up to 100,000 hours.
6.High speed, high efficiency, cutting sheets can reach tens of meters per minute.
7.The cutting edge has good quality, small deformation, flat appearance and beautiful appearance.

Cutting parameter
Material
Thickness
(mm)
Speed
(mm/s)
Air pressure
Nozzle
Power
Gas
Stainless steel
1
550
1.6Mpa
2.0 single
100%
Nitrogen
2
180
1.6Mpa
2.0 single
3
90
1.6Mpa
2.0 single
4
50
1.6Mpa
2.0 single
5
30
2.0Mpa
3.0 single
6
20
2.0Mpa
3.0 single
Carbon steel
1
180
6bar
2.0 double
98%
Oxygen
2
80
3bar
2.0 double
3
50
3bar
2.0 double
4
40
0.8bar
1.5 double
5
30
0.8bar
2.0 double
6
25
0.8bar
2.0 double
8
20
0.8bar
2.0 double
10
18
0.1bar
3.0 double
12
12
0.1bar
3.0 double
14
10
0.1bar
3.0 double
16
8
0.1bar
3.0 double
18
8
0.1bar
3.0 double
20
8
0.1bar
4.5 double
Raytools Laser cutting head
The laser cutting head adopts a high-precision fiber laser machine special anti-collision cutting head to ensure high cutting
precision and cutting efficiency. The cutting head is equipped with a non-contact capacitive sensing device. The cutting head is
equipped with an extremely sensitive non-contact capacitive sensing device, which enables a very stable Z-axis automatic tracking function, which eliminates the influence of the unevenness of the sheet on the cutting quality, there by improving the yield of the
product. The laser cutting machine is equipped with focusing lenses to meet the needs of customers cutting sheets. The lens is  replaced by a drawer type, and the whole replacement process is convenient and fast. The optical path system has the advantages of high efficiency, stability, school illumination, convenient maintenance, etc. The entire optical path system is protected by clean positive air pressure to ensure that the optical lens and nozzle of the cutting head are free from contamination
Cooling system
The professional water chiller adopted is controlled by the refrigerant control loop, high precision temperature controller is used to control and display water temperature, fully automatic operation and high temperature low noise; The inner water tank and pipe of the product are made of stainless steel, and the exterior gold plate is made of electrostatic spraying, which can effectively prevent rust. Use clean water or demonized water to improve the efficiency and life of devices such as lasers.

Equipment work and environmental requirements

1.Power supply requirements: (Recommended to use regulated power supply)
   (1)Rated output voltage: 380V
   (2)Voltage frequency: 50Hz
   (3)Stability of two-phase voltage +5%
   (4)Output voltage adjustment rate: <2%.
2.Auxiliary gas for cutting: Purifying dry compressed air and high purity oxygen (O2) and nitrogen (N2): purity not less than 99.9%.
3.Cutting sheet:The board material is even and flat; the surface is clean.
4.Compressed air supply device
   (1)Rated pressure: 15bar
   (2)Volume: 1m³
