SP-390 Automatic Screws Plastic Skin Packaging Equipment

SP-390 Automatic Screws Plastic Skin Packaging Equipment photo-1
US$ 1,100 - 2,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
T&D
Place of Origin:
Zhejiang, China
Model Number:
SP-2008
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name T&D
Place of Origin Zhejiang, China
Model Number SP-2008
Certification ISO-9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 160kg
Dimension(L*W*H) 840mm*630mm*1380mm
Voltage 220v
Power 5kw
Application Machinery & Hardware
Condition New
Automatic Grade Semi-Automatic
Driven Type Electric
Packaging Material Plastic
Packaging Type Other
SP-390 automatic screws plastic skin packaging equipment



Product Description



Semi-automatic machine for discrete manufacture of Skin packages, aimed at industrial products: accessories, spares, household, etc.





SP-390 automatic screws plastic skin packaging equipment

Features

  •    Heating by Halogen lamp or nickel-chrome wire
  •    Halogen lamp heating (low heat rate but stable performance)
  •    Nickel-chrome wires heating(high heat rate but fragile)
  •    Manual feeding the products to the worktable
  •    Automatic heating the film and packing the products
  •    Easy to use by using digital time relay to control the operation



Functions

  •    Pack the products by film and cardboard without molds



Films

  •    PE film is soft and high performance after packing, used for high quality packaging.
  •    PE film is no pollution after burning
  •    PVC film is harder and but cheaper
  •    PVC film will produce chlorine(poisonous gas) after burning
  •    We provide the PE and PVC film
  •    PE film thickness( 0.10mm, 0.15mm, 0.20mm, 0.25mm, 0.30mm)
  •    PVC film thickness(0.06mm, 0.08mm, 0.10mm, 0.12mm, 0.15mm)



Cardboards

  •    If the air permeability of cardboard is too poor, the machine can’t pump the air between film and cardboard, it need make some holes on the cardboard
  •    If the air permeability of cardboard is good, it needn’t make holes on the cardboard
  •    We suggest don’t laminate the cardboard for the better air permeability
  •    We can provide the cardboard according to the customers’ detail design, it’s better to send us the CorelDraw or adobe illustrator files.



Specifications



Model

SP-390

Packaging size

540mm*390mm

Vacuum pump

20m3/hour

Speed

2~3times/min

Weight

160kgs

Voltage

220v 50~60hz or 380v 50~60hz

Power

5kw

Machine dimension

840mm*630mm*1380mm





Flow charts

SP-390 automatic screws plastic skin packaging equipment

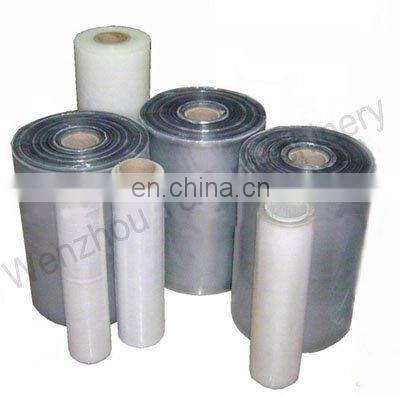

Films

 SP-390 automatic screws plastic skin packaging equipment

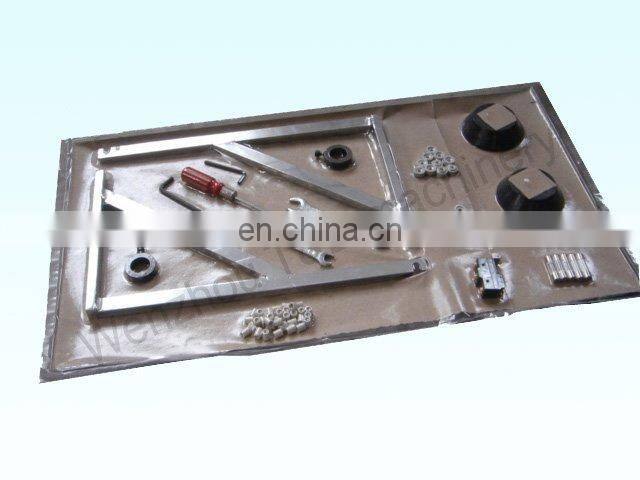

Skin packing sample



 BeforeSP-390 automatic screws plastic skin packaging equipment

After

SP-390 automatic screws plastic skin packaging equipment



Detailed Images

 SP-390 automatic screws plastic skin packaging equipment



Voltage and Plug

About the plug and voltage  (For an electric machine)



Please inform us the required voltage and plug you need before placing order.



We assume no liability or responsibility for the consequence of machine not working caused by wrong voltage or plug.



Thank you!





SP-390 automatic screws plastic skin packaging equipment



Price Terms

We accept EXW, FOB, CIF in most time.

If you have any agent or factory in China, we can deliver goods there!



SP-390 automatic screws plastic skin packaging equipment

Packaging & Shipping
SP-390 automatic screws plastic skin packaging equipment

Packaging detailsStandard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety;
Shipping methods1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, Fedex, UPS etc


Shipping Port: Port of Ningbo

Our Services
Quality guarantee&Service


1. Each machine is manufactured by professional experienced staff.



2. Production process is under strict supervision and adopts China and world toppest production engineering.

3. The warranty time is one year. Quick-wear part is excluded.

4. When warranty date expires, lifetime maintenance service is provided.


5. We can also offer PVC, PE films, BOPP films, stamping dies, hot foil papers etc.



Company Information




 1. Our company was started in 1992, we can offer the most professional packing schemes to guests all over the globe.



 2. We cherish every "contact supplier"click and bend ourselves to quick response to guests all over the globe.



 3. We  adhere to the philosophy of quality wins and innovation makes success.



 4. "One-stop" service system: inquiry, details discussing, order, payment, testing machine,packing, delivery, receiving, after-sale services.



FAQ

Q: Are you a factory or a trading company?

A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.



Q: Can you send me the video to show how the machine works?

A: Certainly, we have made video of every machine and uploaded them to Youtube.



Q: How can I know your machine works well?

A: Before delivery, we shall test the machine working condition for you.



Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.



Q: How can I pay my order?

A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.



Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.
